FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NTP75N03-006MOSFET N-CH 30V 75A TO220AB onsemi |
4,951 | - |
|
Datasheet |
- | TO-220-3 | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 75A (Tc) | 10V | 6.5mOhm @ 37.5A, 10V | 2V @ 250µA | 75 nC @ 5 V | ±20V | 5635 pF @ 25 V | - | 2.5W (Ta), 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
FQU13N06LTU-WSMOSFET N-CH 60V 11A IPAK onsemi |
23,543 | - |
|
Datasheet |
QFET® | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 11A (Tc) | 5V, 10V | 115mOhm @ 5.5A, 10V | 2.5V @ 250µA | 6.4 nC @ 5 V | ±20V | 350 pF @ 25 V | - | 2.5W (Ta), 28W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | IPAK |
|
2SK4101FS-V-HNCH 10V DRIVE SERIES onsemi |
1,082 | - |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FDB8442-F085MOSFET N-CH 40V 28A TO263AB onsemi |
3,106 | - |
|
Datasheet |
PowerTrench® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 28A (Ta) | 10V | 5mOhm @ 80A, 10V | 4V @ 250µA | 235 nC @ 10 V | ±20V | 12200 pF @ 25 V | - | 254W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
|

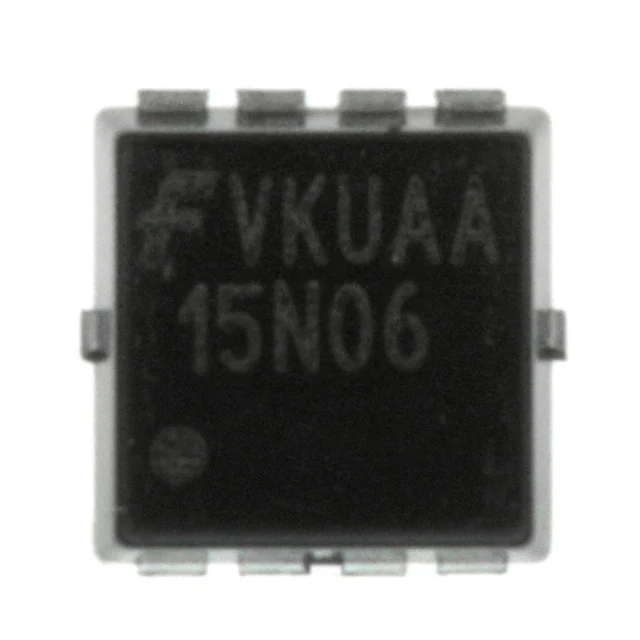

FDMC15N06MOSFET N-CH 55V 2.4A/15A 8MLP onsemi |
4,784 | - |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 2.4A (Ta), 15A (Tc) | 10V | 900mOhm @ 15A, 10V | 4V @ 250µA | 11.5 nC @ 10 V | ±20V | 350 pF @ 25 V | - | 2.3W (Ta), 35W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MLP (3.3x3.3) |
|
|
NTP5404NRGMOSFET N-CH 40V 24A/167A TO220AB onsemi |
2,028 | - |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 24A (Ta), 167A (Tc) | 5V, 10V | 4.5mOhm @ 40A, 10V | 3.5V @ 250µA | 125 nC @ 10 V | ±20V | 7000 pF @ 32 V | - | 5.4W (Ta), 254W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
2SJ660-DL-EPCH 4V DRIVE SERIES onsemi |
737 | - |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FDMS7558SMOSFET N-CH 25V 32A/49A 8QFN onsemi |
3,944 | - |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 32A (Ta), 49A (Tc) | 4.5V, 10V | 1.25mOhm @ 32A, 10V | 3V @ 1mA | 119 nC @ 10 V | ±20V | 7770 pF @ 13 V | - | 2.5W (Ta), 89W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
ATP108-TL-HMOSFET P-CH 40V 70A ATPAK onsemi |
3,134 | - |
|
- |
- | ATPAK (2 Leads+Tab) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 40 V | 70A (Ta) | 4.5V, 10V | 10.4mOhm @ 35A, 10V | - | 79.5 nC @ 10 V | ±20V | 3850 pF @ 20 V | - | 60W (Tc) | 150°C (TJ) | - | - | Surface Mount | ATPAK |
|
FDMS36101L-F085MOSFET N-CH 100V 38A POWER56 onsemi |
3,784 | - |
|
Datasheet |
PowerTrench® | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 38A (Tc) | 4.5V, 10V | 26mOhm @ 20A, 10V | 3V @ 250µA | 84 nC @ 10 V | ±20V | 3945 pF @ 25 V | - | 94W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Power56 |
