FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

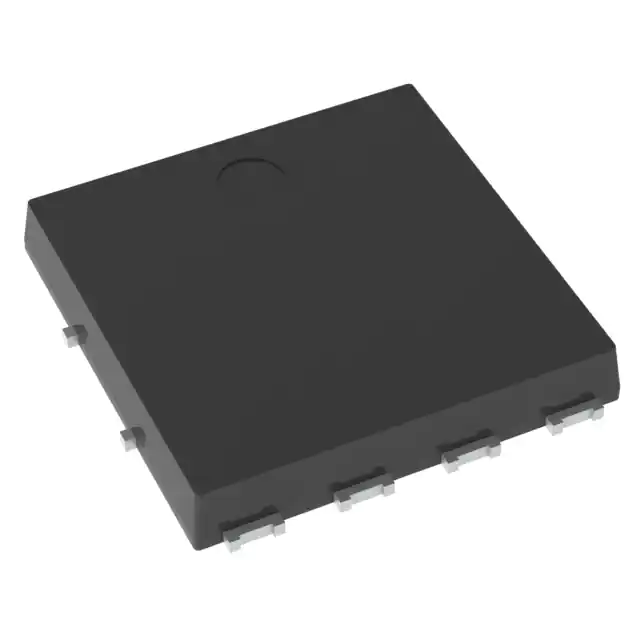

NTMTS0D6N04CTXGMOSFET N-CH 40V 533A onsemi |
3,998 | - |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 533A (Tc) | 10V | 0.48mOhm @ 50A, 10V | 4V @ 250µA | 187 nC @ 10 V | ±20V | 11800 pF @ 20 V | - | 5W | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-DFNW (8.3x8.4) |
|
FDP054N10MOSFET N-CH 100V 120A TO220-3 onsemi |
676 | - |
|
Datasheet |
PowerTrench® | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 120A (Tc) | 10V | 5.5mOhm @ 75A, 10V | 4.5V @ 250µA | 203 nC @ 10 V | ±20V | 13280 pF @ 25 V | - | 263W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
NTMT190N65S3HPOWER MOSFET, N-CHANNEL, SUPERFE onsemi |
4,133 | - |
|
Datasheet |
SuperFET® III | 4-PowerTSFN | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 16A (Tc) | 10V | 190mOhm @ 8A, 10V | 4V @ 1.4mA | 31 nC @ 10 V | ±30V | 1600 pF @ 400 V | - | 129W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-TDFN (8x8) |
|
NTHL110N65S3FMOSFET N-CH 650V 30A TO247-3 onsemi |
895 | - |
|
Datasheet |
- | TO-247-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 30A (Tc) | 10V | 110mOhm @ 15A, 10V | 5V @ 3mA | 58 nC @ 10 V | ±30V | 2560 pF @ 400 V | - | 240W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
FCH110N65F-F155MOSFET N-CH 650V 35A TO247 onsemi |
761 | - |
|
Datasheet |
FRFET®, SuperFET® II | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 35A (Tc) | 10V | 110mOhm @ 17.5A, 10V | 5V @ 3.5mA | 145 nC @ 10 V | ±20V | 4895 pF @ 100 V | - | 357W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
FCP130N60MOSFET N-CH 600V 28A TO220-3 onsemi |
515 | - |
|
Datasheet |
SuperFET® II | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 28A (Tc) | 10V | 130mOhm @ 14A, 10V | 3.5V @ 250µA | 70 nC @ 10 V | ±20V | 3590 pF @ 380 V | - | 278W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
FDBL0330N80MOSFET N-CH 80V 220A 8HPSOF onsemi |
1,966 | - |
|
Datasheet |
PowerTrench® | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 220A (Tc) | 10V | 3mOhm @ 80A, 10V | 4V @ 250µA | 112 nC @ 10 V | ±20V | 6320 pF @ 40 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-HPSOF |
|
FDBL9406-F085T6MOSFET N-CH 40V 45A/240A 8HPSOF onsemi |
1,889 | - |
|
Datasheet |
- | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 45A (Ta), 240A (Tc) | - | 1.21mOhm @ 50A, 10V | 3.5V @ 190µA | 75 nC @ 10 V | +20V, -16V | 4960 pF @ 25 V | - | 4.3W (Ta), 136.4W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-HPSOF |
|
|
NTHL095N65S3HFMOSFET N-CH 650V 36A TO247-3 onsemi |
316 | - |
|
Datasheet |
FRFET®, SuperFET® III | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 36A (Tc) | 10V | 95mOhm @ 18A, 10V | 5V @ 860µA | 66 nC @ 10 V | ±30V | 2930 pF @ 400 V | - | 272W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
FDB0190N807LMOSFET N-CH 80V 270A TO263-7 onsemi |
663 | - |
|
Datasheet |
PowerTrench® | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 270A (Tc) | 8V, 10V | 1.7mOhm @ 34A, 10V | 4V @ 250µA | 249 nC @ 10 V | ±20V | 19110 pF @ 40 V | - | 3.8W (Ta), 250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263-7 |
