FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
;;2.jpg)
|
STD3LN62K3MOSFET N-CH 620V 2.5A DPAK STMicroelectronics |
0 | - |
|
Datasheet |
SuperMESH3™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 620 V | 2.5A (Tc) | 10V | 3Ohm @ 1.25A, 10V | 4.5V @ 50µA | 17 nC @ 10 V | ±30V | 386 pF @ 50 V | - | 45W (Tc) | 150°C (TJ) | - | - | Surface Mount | DPAK |
|
STN5PF02VMOSFET P-CH 20V 4.2A SOT223 STMicroelectronics |
0 | - |
|
Datasheet |
STripFET™ II | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.2A (Tc) | 2.5V, 4.5V | 80mOhm @ 2.1A, 4.5V | 450mV @ 250µA (Min) | 6 nC @ 2.5 V | ±8V | 412 pF @ 15 V | - | 2.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223 |
|
STU60N3LH5MOSFET N-CH 30V 48A IPAK STMicroelectronics |
0 | - |
|
Datasheet |
STripFET™ V | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 48A (Tc) | 5V, 10V | 8.4mOhm @ 24A, 10V | 3V @ 250µA | 8.8 nC @ 5 V | ±20V | 1620 pF @ 25 V | - | 60W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | IPAK |
|

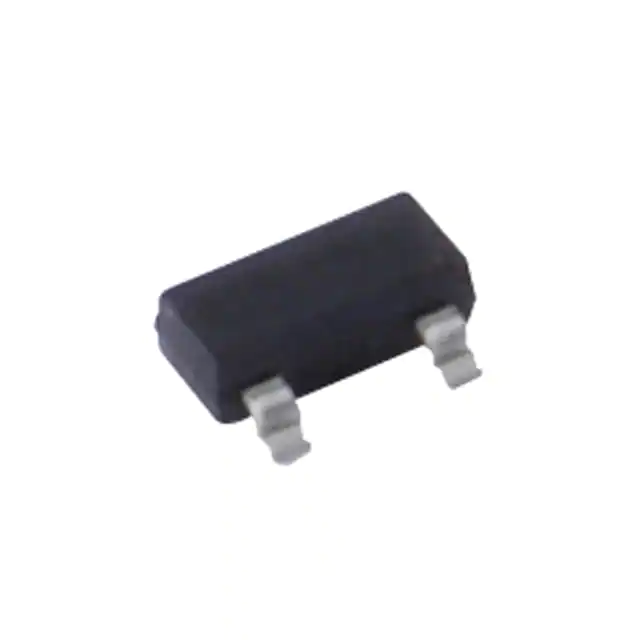

2N7002MOSFET N-CH 60V 200MA SOT23-3 STMicroelectronics |
0 | - |
|
Datasheet |
STripFET™ | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 200mA (Tc) | 4.5V, 10V | 5Ohm @ 500mA, 10V | 3V @ 250µA | 2 nC @ 5 V | ±18V | 43 pF @ 25 V | - | 350mW (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
STT4PF20VMOSFET P-CH 20V 3A SOT-23-6 STMicroelectronics |
0 | - |
|
Datasheet |
STripFET™ II | SOT-23-6 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 3A (Tc) | 2.7V, 4.5V | 110mOhm @ 1.5A, 4.5V | 600mV @ 250µA (Min) | 7.8 nC @ 4.5 V | ±10V | 500 pF @ 15 V | - | 1.6W (Tc) | 150°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
|
STT3PF20VMOSFET P-CH 20V 2.2A SOT23-6 STMicroelectronics |
0 | - |
|
Datasheet |
STripFET™ II | SOT-23-6 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.2A (Tc) | 2.7V, 4.5V | 200mOhm @ 1A, 4.5V | 600mV @ 250µA (Min) | 4.7 nC @ 4.5 V | ±12V | 315 pF @ 15 V | - | 1.6W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
IRF530MOSFET N-CH 100V 14A TO220AB STMicroelectronics |
0 | - |
|
Datasheet |
STripFET™ II | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 14A (Tc) | 10V | 160mOhm @ 7A, 10V | 4V @ 250µA | 21 nC @ 10 V | ±20V | 458 pF @ 25 V | - | 60W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
|
STN2NE10MOSFET N-CH 100V 2A SOT-223 STMicroelectronics |
0 | - |
|
Datasheet |
STripFET™ | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 2A (Tc) | 10V | 400mOhm @ 1A, 10V | 4V @ 250µA | 19 nC @ 10 V | ±20V | 305 pF @ 25 V | - | 2.5W (Tc) | 150°C (TJ) | - | - | Surface Mount | SOT-223 |
|
IRF620MOSFET N-CH 200V 6A TO220AB STMicroelectronics |
0 | - |
|
Datasheet |
PowerMESH™ II | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 6A (Tc) | 10V | 800mOhm @ 3A, 10V | 4V @ 250µA | 27 nC @ 10 V | ±20V | 350 pF @ 25 V | - | 70W (Tc) | -65°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
STN2NE10LMOSFET N-CH 100V 1.8A SOT-223 STMicroelectronics |
0 | - |
|
Datasheet |
STripFET™ | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 1.8A (Tc) | 5V, 10V | 400mOhm @ 1A, 10V | 3V @ 250µA | 14 nC @ 5 V | ±20V | 345 pF @ 25 V | - | 2.5W (Tc) | 150°C (TJ) | - | - | Surface Mount | SOT-223 |
