FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFT24N50MOSFET N-CH 500V 24A TO268 IXYS |
2,344 | - |
|
Datasheet |
HiPerFET™ | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 24A (Tc) | 10V | 230mOhm @ 12A, 10V | 4V @ 4mA | 160 nC @ 10 V | ±20V | 4200 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268AA |
|

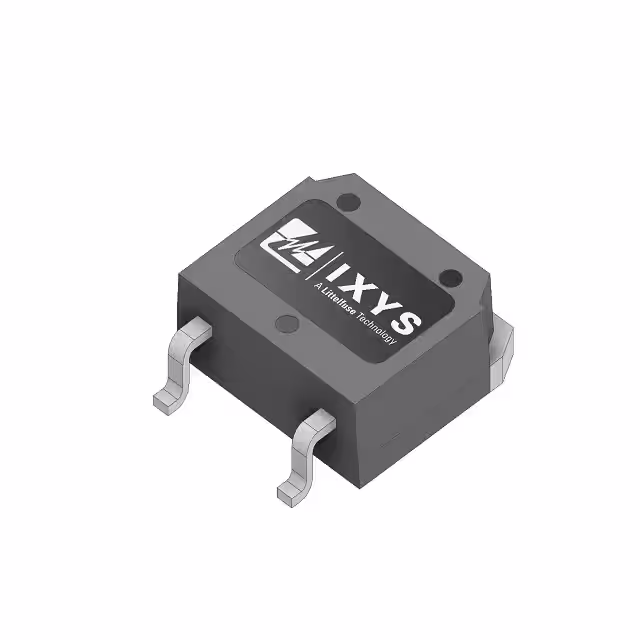

IXFT78N60X3HVMOSFET ULTRA 600V 78A TO268HV IXYS |
2,917 | - |
|
- |
HiPerFET™, Ultra X3 | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 78A (Tc) | 10V | 38mOhm @ 39A, 10V | 5V @ 4mA | 70 nC @ 10 V | ±20V | 4700 pF @ 25 V | - | 780W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268HV (IXFT) |
|
|
IXTT440N04T4HVMOSFET N-CH 40V 440A TO268 IXYS |
2,019 | - |
|
Datasheet |
Trench | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 440A (Tc) | 10V | 1.25mOhm @ 100A, 10V | 4V @ 250µA | 480 nC @ 10 V | ±15V | 26000 pF @ 25 V | - | 940W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-268HV (IXTT) |
|
IXFH80N08MOSFET N-CH 80V 80A TO247AD IXYS |
4,278 | - |
|
- |
HiPerFET™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 80 V | 80A (Tc) | 10V | 9mOhm @ 40A, 10V | 4V @ 4mA | 180 nC @ 10 V | ±20V | 4800 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|
|
IXFH60N20MOSFET N-CH 200V 60A TO247AD IXYS |
4,098 | - |
|
- |
HiPerFET™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 60A (Tc) | 10V | 33mOhm @ 30A, 10V | 4V @ 4mA | 155 nC @ 10 V | ±20V | 5200 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|
|
IXFH80N10MOSFET N-CH 100V 80A TO247AD IXYS |
3,309 | - |
|
- |
HiPerFET™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 80A (Tc) | 10V | 12.5mOhm @ 40A, 10V | 4V @ 4mA | 180 nC @ 10 V | ±20V | 4800 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|
|
IXFH22N55MOSFET N-CH 550V 22A TO247AD IXYS |
2,895 | - |
|
Datasheet |
HiPerFET™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 550 V | 22A (Tc) | 10V | 270mOhm @ 11A, 10V | 4.5V @ 4mA | 170 nC @ 10 V | ±20V | 4200 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|
IXTC75N10MOSFET N-CH 100V 72A ISOPLUS220 IXYS |
2,548 | - |
|
Datasheet |
MegaMOS™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 72A (Tc) | 10V | 20mOhm @ 37.5A, 10V | 4V @ 250µA | 260 nC @ 10 V | ±20V | 4500 pF @ 25 V | - | 230W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
IXTK128N15MOSFET N-CH 150V 128A TO264 IXYS |
3,255 | - |
|
- |
MegaMOS™ | TO-264-3, TO-264AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 128A (Tc) | 10V | 15mOhm @ 500mA, 10V | 4V @ 250µA | 240 nC @ 10 V | ±20V | 6000 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264 (IXTK) |
|
|
IXTK80N25MOSFET N-CH 250V 80A TO264 IXYS |
3,266 | - |
|
- |
MegaMOS™ | TO-264-3, TO-264AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 80A (Tc) | 10V | 33mOhm @ 500mA, 10V | 4V @ 250µA | 240 nC @ 10 V | ±20V | 6000 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264 (IXTK) |
