FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

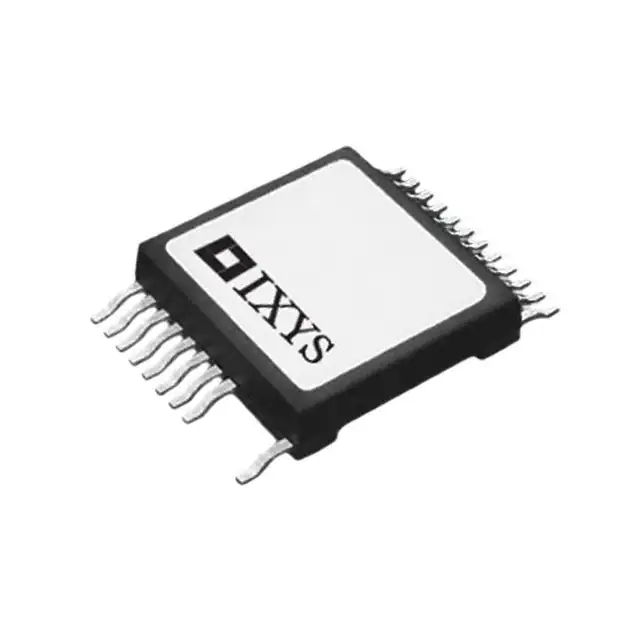

MMIX1F210N30P3MOSFET N-CH 300V 108A 24SMPD IXYS |
3,757 | - |
|
Datasheet |
HiPerFET™, Polar3™ | 24-PowerSMD, 21 Leads | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 108A (Tc) | - | 16mOhm @ 105A, 10V | 5V @ 8mA | - | - | 16200 pF @ 25 V | - | - | - | - | - | Surface Mount | 24-SMPD |
|
IXFE39N90MOSFET N-CH 900V 34A SOT227B IXYS |
4,685 | - |
|
- |
HiPerFET™ | SOT-227-4, miniBLOC | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 900 V | 34A (Tc) | 10V | 220mOhm @ 19.5A, 10V | 5V @ 8mA | 375 nC @ 10 V | ±20V | 13400 pF @ 25 V | - | 580W (Tc) | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
|
MKE38P600LB-TUBMOSFET N-CH 600V 50A SMPD IXYS |
4,913 | - |
|
Datasheet |
- | 9-SMD Module | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 50A (Tc) | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | ISOPLUS-SMPD™.B |
|
|
IXFN36N110PMOSFET N-CH 1100V 36A SOT-227B IXYS |
2,169 | - |
|
- |
HiPerFET™, Polar | SOT-227-4, miniBLOC | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1100 V | 36A (Tc) | 10V | 240mOhm @ 500mA, 10V | 6.5V @ 1mA | 350 nC @ 10 V | ±30V | 23000 pF @ 25 V | - | 1000W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
|
IXFN44N80MOSFET N-CH 800V 44A SOT-227B IXYS |
3,808 | - |
|
Datasheet |
HiPerFET™ | SOT-227-4, miniBLOC | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 800 V | 44A (Tc) | 10V | 165mOhm @ 500mA, 10V | 4.5V @ 8mA | 380 nC @ 10 V | ±20V | 10000 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
|
IXFN39N90MOSFET N-CH 900V 39A SOT-227B IXYS |
3,376 | - |
|
Datasheet |
HiPerFET™ | SOT-227-4, miniBLOC | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 900 V | 39A (Tc) | 10V | 220mOhm @ 500mA, 10V | 5V @ 8mA | 390 nC @ 10 V | ±20V | 9200 pF @ 25 V | - | 694W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
MMIX1F44N100Q3MOSFET N-CH 1000V 30A 24SMPD IXYS |
4,889 | - |
|
Datasheet |
HiPerFET™ | 24-PowerSMD, 21 Leads | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1000 V | 30A (Tc) | 10V | 245mOhm @ 22A, 10V | 6.5V @ 8mA | 264 nC @ 10 V | ±30V | 13600 pF @ 25 V | - | 694W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 24-SMPD |
|
|
MKE38P600LB-TRRMOSFET N-CH 600V 50A SMPD IXYS |
2,358 | - |
|
Datasheet |
- | 9-SMD Module | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 50A (Tc) | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | ISOPLUS-SMPD™.B |
|
|
IXFN230N10MOSFET N-CH 100V 230A SOT-227B IXYS |
4,353 | - |
|
Datasheet |
- | SOT-227-4, miniBLOC | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 100 V | 230A (Tc) | 10V | 6mOhm @ 500mA, 10V | 4V @ 8mA | 570 nC @ 10 V | ±20V | 19000 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
|
MMIX1F40N110PMOSFET N-CH 1100V 24A 24SMPD IXYS |
3,536 | - |
|
Datasheet |
HiPerFET™, PolarP2™ | 24-PowerSMD, 21 Leads | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1100 V | 24A (Tc) | 10V | 290mOhm @ 20A, 10V | 6.5V @ 1mA | 310 nC @ 10 V | ±30V | 19000 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 24-SMPD |
