FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPD03N60C3ATMA1MOSFET N-CH 600V 3.2A TO252-3 |
17,260 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 3.2A (Tc) | 10V | 1.4Ohm @ 2A, 10V | 3.9V @ 135µA | 17 nC @ 10 V | ±20V | 400 pF @ 25 V | - | 38W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
TK5R1P08QM,RQUMOS10 DPAK 80V 5.1MOHM |
15,659 |
|
Datasheet |
U-MOSX-H | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 84A (Tc) | 6V, 10V | 5.1mOhm @ 42A, 10V | 3.5V @ 700µA | 56 nC @ 10 V | ±20V | 3980 pF @ 40 V | - | 104W (Tc) | 175°C | - | - | Surface Mount | DPAK |
|
CSD22206WTMOSFET P-CH 8V 5A 9DSBGA |
15,401 |
|
Datasheet |
NexFET™ | 9-UFBGA, DSBGA | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 8 V | 5A (Ta) | 2.5V, 4.5V | 5.7mOhm @ 2A, 4.5V | 1.05V @ 250µA | 14.6 nC @ 4.5 V | -6V | 2275 pF @ 4 V | - | 1.7W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 9-DSBGA |
|
ISC011N03L5SATMA1MOSFET N-CH 30V 37A/100A TDSON |
15,000 |
|
Datasheet |
OptiMOS™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 37A (Ta), 100A (Tc) | 4.5V, 10V | 1.1mOhm @ 30A, 10V | 2V @ 250µA | 72 nC @ 10 V | ±20V | 4700 pF @ 15 V | - | 2.5W (Ta), 96W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TDSON-8-1 |
|
DMP25H18DLFDE-7MOSFET P-CH 250V 260MA 6UDFN |
14,315 |
|
Datasheet |
- | 6-PowerUDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 250 V | 260mA (Ta) | 3.5V, 10V | 14Ohm @ 200mA, 10V | 2.5V @ 1mA | 2.8 nC @ 10 V | ±40V | 81 pF @ 25 V | - | 600mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN2020-6 (Type E) |
|
ZXM64P02XTAMOSFET P-CH 20V 3.5A 8MSOP |
6,455 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.5A (Ta) | 2.7V, 4.5V | 90mOhm @ 2.4A, 4.5V | 700mV @ 250µA (Min) | 6.9 nC @ 4.5 V | ±12V | 900 pF @ 15 V | - | 1.1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MSOP |
|
SI4686DY-T1-E3MOSFET N-CH 30V 18.2A 8SO |
6,381 |
|
Datasheet |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 18.2A (Tc) | 4.5V, 10V | 9.5mOhm @ 13.8A, 10V | 3V @ 250µA | 26 nC @ 10 V | ±20V | 1220 pF @ 15 V | - | 3W (Ta), 5.2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
TK560P60Y,RQMOSFET N-CHANNEL 600V 7A DPAK |
5,542 |
|
Datasheet |
DTMOSV | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 7A (Tc) | 10V | 560mOhm @ 3.5A, 10V | 4V @ 240µA | 14.5 nC @ 10 V | ±30V | 380 pF @ 300 V | - | 60W (Tc) | 150°C (TJ) | - | - | Surface Mount | DPAK |
|
DMTH6004SK3Q-13MOSFET N-CH 60V 100A TO252 |
2,850 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Tc) | 10V | 3.8mOhm @ 90A, 10V | 4V @ 250µA | 95.4 nC @ 10 V | ±20V | 4556 pF @ 30 V | - | 3.9W (Ta), 180W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252-3 |
|
DMTH6005LPS-13MOSFET N-CH 60V PWRDI5060 |
2,396 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 20.6A (Ta), 100A (Tc) | 4.5V, 10V | 5.5mOhm @ 50A, 10V | 3V @ 250µA | 47.1 nC @ 10 V | ±20V | 2962 pF @ 30 V | - | 3.2W (Ta), 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerDI5060-8 |
,TO-226_straightlead.jpg)
|
VN0550N3-G-P013MOSFET N-CH 500V 50MA TO92-3 |
2,099 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Cut Tape (CT) | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 50mA (Tj) | 5V, 10V | 60Ohm @ 50mA, 10V | 4V @ 1mA | - | ±20V | 55 pF @ 25 V | - | 1W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
BUK9Y19-100E,115MOSFET N-CH 100V 56A LFPAK56 |
15,329 |
|
Datasheet |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 56A (Tc) | 5V | 18mOhm @ 15A, 10V | 2.1V @ 1mA | 39 nC @ 5 V | ±10V | 5085 pF @ 25 V | - | 167W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK56, Power-SO8 |
|
MCAC100N08YA-TPMOSFET N-CH 80 100A DFN5060 |
14,569 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 100A (Tc) | 4.5V, 10V | 4.5mOhm @ 20A, 10V | 2.5V @ 250µA | 90 nC @ 10 V | ±20V | 6320 pF @ 40 V | - | 152W (Tj) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN5060 |
|
|
BUK7Y18-75B,115MOSFET N-CH 75V 49A LFPAK56 |
10,540 |
|
Datasheet |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 49A (Tc) | 10V | 18mOhm @ 20A, 10V | 4V @ 1mA | 35 nC @ 10 V | ±20V | 2173 pF @ 25 V | - | 105W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK56, Power-SO8 |
|
SIR586DP-T1-RE3N-CHANNEL 80 V (D-S) MOSFET POWE |
8,178 |
|
Datasheet |
TrenchFET® Gen V | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 20.7A (Ta), 78.4A (Tc) | 7.5V, 10V | 5.8mOhm @ 10A, 10V | 4V @ 250µA | 38 nC @ 10 V | ±20V | 1905 pF @ 40 V | - | 5W (Ta), 71.4W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
CSD16413Q5AMOSFET N-CH 25V 24A/100A 8VSON |
7,424 |
|
Datasheet |
NexFET™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 24A (Ta), 100A (Tc) | 4.5V, 10V | 3.9mOhm @ 24A, 10V | 1.9V @ 250µA | 11.7 nC @ 4.5 V | +16V, -12V | 1780 pF @ 12.5 V | - | 3.1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-VSONP (5x6) |
|
|
SQJ433EP-T1_GE3MOSFET P-CH 30V 75A PPAK SO-8 |
4,948 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 75A (Tc) | 4.5V, 10V | 8.1mOhm @ 16A, 10V | 2.5V @ 250µA | 108 nC @ 10 V | ±20V | 4877 pF @ 15 V | - | 83W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|

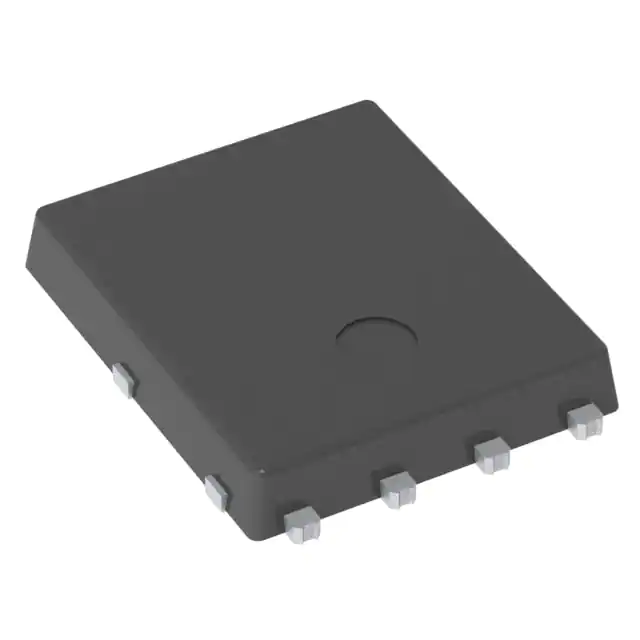

STL70N4LLF5MOSFET N-CH 40V 70A POWERFLAT |
2,552 |
|
Datasheet |
STripFET™ V | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 70A (Tc) | 4.5V, 10V | 6.5mOhm @ 9A, 10V | 1V @ 250µA | 13 nC @ 4.5 V | ±22V | 1800 pF @ 25 V | - | 72W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | PowerFlat™ (5x6) |
;;2.jpg)
|
STD9NM50NMOSFET N-CH 500V 5A DPAK |
1,329 |
|
Datasheet |
MDmesh™ II | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 5A (Tc) | 10V | 790mOhm @ 2.5A, 10V | 4V @ 250µA | 14 nC @ 10 V | ±25V | 570 pF @ 50 V | - | 45W (Tc) | 150°C (TJ) | - | - | Surface Mount | DPAK |
|
|
CSD18513Q5ATMOSFET N-CH 40V 124A 8VSON |
912 |
|
Datasheet |
NexFET™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 124A (Tc) | 4.5V, 10V | 5.3mOhm @ 19A, 10V | 2.4V @ 250µA | 61 nC @ 10 V | ±20V | 4280 pF @ 20 V | - | 96W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-VSONP (5x6) |
