FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SIR582DP-T1-RE3N-CHANNEL 80 V (D-S) MOSFET POWE |
5,935 |
|
Datasheet |
TrenchFET® Gen V | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 28.9A (Ta), 116A (Tc) | 7.5V, 10V | 3.4mOhm @ 15A, 10V | 4V @ 250µA | 67 nC @ 10 V | ±20V | 3360 pF @ 40 V | - | 5.6W (Ta), 92.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
DMTH15H017LPSW-13MOSFET BVDSS: 101V~250V POWERDI5 |
4,850 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 8A (Ta), 50A (Tc) | 4.5V, 10V | 17.5mOhm @ 20A, 10V | 2.6V @ 250µA | 50 nC @ 10 V | ±20V | 3369 pF @ 75 V | - | 1.5W (Ta), 107W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount, Wettable Flank | PowerDI5060-8 (Type UX) |
|
IPD65R660CFDAATMA1MOSFET N-CH 650V 6A TO252-3 |
4,536 |
|
Datasheet |
CoolMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 6A (Tc) | 10V | 660mOhm @ 3.22A, 10V | 4.5V @ 214.55µA | 20 nC @ 10 V | ±20V | 543 pF @ 100 V | - | 62.5W (Tc) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TO252-3 |
|
SQD97N06-6M3L_GE3MOSFET N-CH 60V 97A TO252AA |
3,152 |
|
Datasheet |
TrenchFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 97A (Tc) | 4.5V, 10V | 6.3mOhm @ 25A, 10V | 2.5V @ 250µA | 125 nC @ 10 V | ±20V | 6060 pF @ 25 V | - | 136W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252AA |
|
|
SQD50034EL_GE3MOSFET N-CH 60V 100A TO252AA |
1,059 |
|
Datasheet |
TrenchFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Tc) | 4.5V, 10V | 4mOhm @ 20A, 10V | 2.5V @ 250µA | 90 nC @ 10 V | ±20V | 6100 pF @ 25 V | - | 107W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252AA |
|
STP11N60DM2MOSFET N-CH 600V 10A TO220 |
461 |
|
Datasheet |
MDmesh™ DM2 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 10A (Tc) | 10V | 420mOhm @ 5A, 10V | 5V @ 250µA | 16.5 nC @ 10 V | ±25V | 614 pF @ 100 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
NVMFS6H836NT1GMOSFET N-CH 80V 15A/74A 5DFN |
417 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 15A (Ta), 74A (Tc) | 10V | 6.7mOhm @ 15A, 10V | 4V @ 95µA | 25 nC @ 10 V | ±20V | 1640 pF @ 40 V | - | 3.7W (Ta), 89W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
PSMN7R6-60BS,118MOSFET N-CH 60V 92A D2PAK |
7,569 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 92A (Tc) | 10V | 7.8mOhm @ 25A, 10V | 4V @ 1mA | 38.7 nC @ 10 V | ±20V | 2651 pF @ 30 V | - | 149W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
RRH100P03GZETBMOSFET P-CH 30V 10A 8SOP |
6,635 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Not For New Designs | P-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta) | 4V, 10V | 12.6mOhm @ 10A, 10V | 2.5V @ 1mA | 68 nC @ 10 V | ±20V | 3600 pF @ 10 V | - | 650mW (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
SIR876ADP-T1-GE3MOSFET N-CH 100V 40A PPAK SO-8 |
5,452 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 40A (Tc) | 4.5V, 10V | 10.8mOhm @ 20A, 10V | 2.8V @ 250µA | 49 nC @ 10 V | ±20V | 1630 pF @ 50 V | - | 5W (Ta), 62.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
CSD18504Q5ATMOSFET N-CH 40V 50A 8VSON |
5,024 |
|
Datasheet |
NexFET™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 50A (Ta) | 4.5V, 10V | 6.6mOhm @ 17A, 10V | 2.4V @ 250µA | 9.2 nC @ 4.5 V | ±20V | 1656 pF @ 20 V | - | 3.1W (Ta), 77W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-VSONP (5x6) |
;;2.jpg)
|
STD13N60DM2MOSFET N-CH 600V 11A DPAK |
4,633 |
|
Datasheet |
MDmesh™ DM2 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 365mOhm @ 5.5A, 10V | 5V @ 250µA | 19 nC @ 10 V | ±25V | 730 pF @ 100 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
|
STD5N80K5MOSFET N-CH 800V 4A DPAK |
4,406 |
|
Datasheet |
MDmesh™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 4A (Tc) | 10V | 1.75Ohm @ 2A, 10V | 5V @ 100µA | 5 nC @ 10 V | ±30V | 177 pF @ 100 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
|
SI7633DP-T1-GE3MOSFET P-CH 20V 60A PPAK SO-8 |
3,208 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 60A (Tc) | 4.5V, 10V | 3.3mOhm @ 20A, 10V | 3V @ 250µA | 260 nC @ 10 V | ±20V | 9500 pF @ 10 V | - | 6.25W (Ta), 104W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
|
PSMN4R5-40BS,118MOSFET N-CH 40V 100A D2PAK |
3,142 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 10V | 4.5mOhm @ 25A, 10V | 4V @ 1mA | 42.3 nC @ 10 V | ±20V | 2683 pF @ 20 V | - | 148W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
IRFU9210PBFMOSFET P-CH 200V 1.9A TO251AA |
2,681 |
|
Datasheet |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | P-Channel | MOSFET (Metal Oxide) | 200 V | 1.9A (Tc) | 10V | 3Ohm @ 1.1A, 10V | 4V @ 250µA | 8.9 nC @ 10 V | ±20V | 170 pF @ 25 V | - | 2.5W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251AA |
|
|
CSD19533Q5ATMOSFET N-CH 100V 100A 8VSON |
613 |
|
Datasheet |
NexFET™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 100A (Ta) | 6V, 10V | 9.4mOhm @ 13A, 10V | 3.4V @ 250µA | 35 nC @ 10 V | ±20V | 2670 pF @ 50 V | - | 3.2W (Ta), 96W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-VSONP (5x6) |
|
STP12N50M2MOSFET N-CH 500V 10A TO220 |
483 |
|
Datasheet |
MDmesh™ II Plus | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 10A (Tc) | 10V | 380mOhm @ 5A, 10V | 4V @ 250µA | 15 nC @ 10 V | ±25V | 560 pF @ 100 V | - | 85W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|

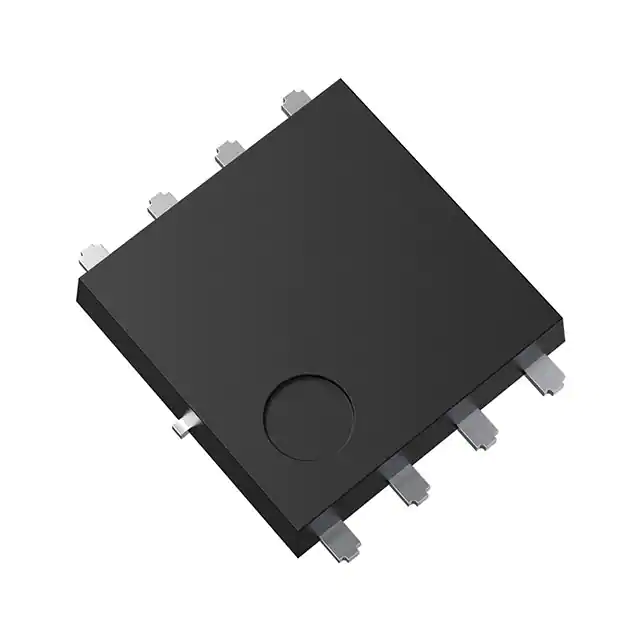

XPH3R206NC,L1XHQMOSFET N-CH 60V 70A 8SOP |
14,955 |
|
Datasheet |
U-MOSVIII-H | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 70A (Ta) | - | 3.2mOhm @ 35A, 10V | 2.5V @ 500µA | 65 nC @ 10 V | ±20V | 4180 pF @ 10 V | - | 960mW (Ta), 132W (Tc) | 175°C | Automotive | AEC-Q101 | Surface Mount | 8-SOP Advance (5x5) |
|
IRFR020TRPBFMOSFET N-CH 60V 14A DPAK |
4,476 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 14A (Tc) | 10V | 100mOhm @ 8.4A, 10V | 4V @ 250µA | 25 nC @ 10 V | ±20V | 640 pF @ 25 V | - | 2.5W (Ta), 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
