FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | FET Type | Technology | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Mounting Style | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Drain to Source Voltage (Vdss) | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | Qualification | FET Feature | Supplier Device Package | Grade | Power Dissipation (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G080P06MP-60V,-195A,RD(MAX)<7.5M@-10V,VT |
699 |
|
Datasheet |
TrenchFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Cut Tape (CT) | Active | P-Channel | MOSFET (Metal Oxide) | 195A (Tc) | 10V | 7.5mOhm @ 20A, 10V | Surface Mount | 4V @ 250µA | 186 nC @ 10 V | 60 V | ±20V | 15870 pF @ 30 V | - | - | TO-263 | - | 294W (Tc) | -55°C ~ 150°C (TJ) |
|
ISL9N303AS3MOSFET N-CH 30V 75A I2PAK |
12,400 |
|
Datasheet |
UltraFET™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75A (Tc) | 4.5V, 10V | 3.2mOhm @ 75A, 10V | Through Hole | 3V @ 250µA | 172 nC @ 10 V | 30 V | ±20V | 7000 pF @ 15 V | - | - | TO-262 (I2PAK) | - | 215W (Tc) | -55°C ~ 175°C (TJ) |
|
PHB45NQ15T,118MOSFET N-CH 150V 45.1A D2PAK |
8,517 |
|
Datasheet |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 45.1A (Tc) | 10V | 42mOhm @ 20A, 10V | Surface Mount | 4V @ 1mA | 32 nC @ 10 V | 150 V | ±20V | 1770 pF @ 25 V | - | - | D2PAK | - | 230W (Tc) | -55°C ~ 175°C (TJ) |
|
|
2SK3814-Z-E1-AZMP-3 AL |
4,000 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Strip | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60A (Ta) | 4.5V, 10V | 8.7mOhm @ 30A, 10V | Surface Mount | 2.5V @ 1mA | 95 nC @ 10 V | 60 V | ±20V | 5450 pF @ 10 V | - | - | TO-252 (MP-3Z) | - | 84W (Ta) | 150°C |
|

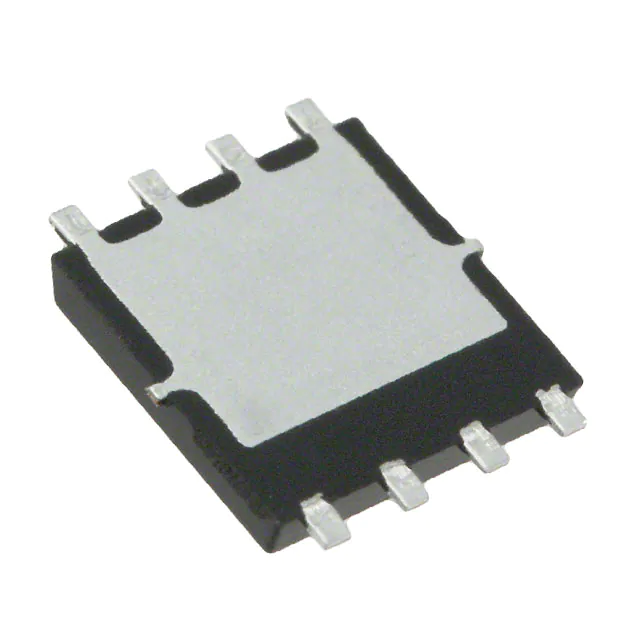

TPCA8026(TE12L,Q,MMOSFET N-CH 30V 45A 8SOP |
1,171 |
|
Datasheet |
U-MOSIV | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 45A (Ta) | 4.5V, 10V | 2.2mOhm @ 23A, 10V | Surface Mount | 2.5V @ 1mA | 113 nC @ 10 V | 30 V | ±20V | 4200 pF @ 10 V | - | - | 8-SOP Advance (5x5) | - | 1.6W (Ta), 45W (Tc) | 150°C (TJ) |
|
FQB34N20TMN-CHANNEL POWER MOSFET |
800 |
|
Datasheet |
QFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 31A (Tc) | 10V | 75mOhm @ 15.5A, 10V | Surface Mount | 5V @ 250µA | 78 nC @ 10 V | 200 V | ±30V | 3100 pF @ 25 V | - | - | TO-263 (D2PAK) | - | 3.13W (Ta), 180W (Tc) | -55°C ~ 150°C (TJ) |
|
DI9435TMOSFET P-CH 30V 5.3A 8-SOP |
2,500 |
|
Datasheet |
- | 8-TSOP (0.130", 3.30mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 5.3A (Ta) | - | 50mOhm @ 5.3A, 10V | Surface Mount | 1.4V @ 250µA | 40 nC @ 10 V | 30 V | - | 950 pF @ 15 V | - | - | 8-SO | - | - | - |
|
|
G080N10MMOSFET N-CH 100V 180A TO-263 |
867 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Cut Tape (CT) | Active | N-Channel | MOSFET (Metal Oxide) | 180A (Tc) | 4.5V, 10V | 7.5mOhm @ 30A, 10V | Surface Mount | 2.5V @ 250µA | 107 nC @ 4.5 V | 100 V | ±20V | 13950 pF @ 50 V | - | - | TO-263 | - | 370W (Tc) | -55°C ~ 150°C (TJ) |
|
|
G040P04MMOSFET P-CH 40V 222A TO-263 |
448 |
|
Datasheet |
TrenchFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Cut Tape (CT) | Active | N-Channel | MOSFET (Metal Oxide) | 180A (Tc) | 4.5V, 10V | 3.5mOhm @ -15A,- 10V | Surface Mount | 2.5V @ 250µA | 206 nC @ 10 V | 40 V | ±20V | 14983 pF @ 20 V | - | - | TO-263 | - | 178W (Tc) | -55°C ~ 150°C (TJ) |
|
|
GT011N03TLEMOSFET N-CH 30V 250A 300W 1.2M( |
1,990 |
|
Datasheet |
- | 8-PowerSFN | Cut Tape (CT) | Active | N-Channel | MOSFET (Metal Oxide) | 250A (Tc) | 4.5V, 10V | 1.2mOhm @ 10A, 10V | Surface Mount | 2.5V @ 250µA | 98 nC @ 10 V | 30 V | ±18V | 6278 pF @ 15 V | - | - | TOLL-8L | - | 300W (Tc) | -55°C ~ 175°C (TJ) |
|
SPW20N60C3E8177FKSA1MOSFET N-CH |
3,947 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HUFA75639S3STMOSFET N-CH 100V 56A D2PAK |
2,477 |
|
Datasheet |
UltraFET™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 56A (Tc) | 10V | 25mOhm @ 56A, 10V | Surface Mount | 4V @ 250µA | 130 nC @ 10 V | 100 V | ±20V | 2000 pF @ 25 V | AEC-Q101 | - | TO-263 (D2PAK) | Automotive | 200W (Tc) | -55°C ~ 175°C (TJ) |
|
|
FQB7N60TMMOSFET N-CH 600V 7.4A D2PAK |
4,548 |
|
Datasheet |
QFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 7.4A (Tc) | 10V | 1Ohm @ 3.7A, 10V | Surface Mount | 5V @ 250µA | 38 nC @ 10 V | 600 V | ±30V | 1430 pF @ 25 V | - | - | TO-263 (D2PAK) | - | 3.13W (Ta), 142W (Tc) | -55°C ~ 150°C (TJ) |
|
|
MCB90N12A-TPN-CHANNEL MOSFET,D2-PAK |
1,544 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 90A (Tc) | 4.5V, 10V | 9mOhm @ 45A, 10V | Surface Mount | 3V @ 250µA | 72 nC @ 10 V | 120 V | ±20V | 4600 pF @ 60 V | - | - | D2PAK | - | 138W | -55°C ~ 150°C (TJ) |
|
|
RF1S640SMMOSFET N-CH 200V 18A TO263AB |
665 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 18A (Tc) | - | 180mOhm @ 10A, 10V | Surface Mount | 4V @ 250µA | 64 nC @ 10 V | 200 V | ±20V | 1275 pF @ 25 V | - | - | TO-263AB | - | 125W (Tc) | -55°C ~ 150°C (TJ) |
|
|
NTMYS013N08LHTWGT8 80V LL LFPAK |
4,308 |
|
Datasheet |
- | SOT-1023, 4-LFPAK | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 11A (Ta), 42A (Tc) | 4.5V, 10V | 13.1mOhm @ 10A, 10V | Surface Mount | 2V @ 45µA | 17 nC @ 10 V | 80 V | ±20V | 906 pF @ 40 V | - | - | LFPAK4 (5x6) | - | 3.6W (Ta), 54W (Tc) | -55°C ~ 175°C (TJ) |
|
2SK4088LSMOSFET N-CH 650V 7.5A TO220FI |
2,892 |
|
Datasheet |
- | TO-220-3 Full Pack | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 7.5A (Tc) | 10V | 850mOhm @ 5.5A, 10V | Through Hole | - | 37.6 nC @ 10 V | 650 V | ±30V | 1000 pF @ 30 V | - | - | TO-220FI(LS) | - | 2W (Ta), 37W (Tc) | 150°C (TJ) |
|
STFI6N62K3MOSFET N CH 620V 5.5A I2PAKFP |
1,500 |
|
Datasheet |
SuperMESH3™ | TO-262-3 Full Pack, I2PAK | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 5.5A (Tc) | 10V | 1.2Ohm @ 2.8A, 10V | Through Hole | 4.5V @ 50µA | 34 nC @ 10 V | 620 V | ±30V | 875 pF @ 50 V | - | - | TO-281 (I2PAKFP) | - | 30W (Tc) | 150°C (TJ) |
|
|
STFI7LN80K5MOSFET N-CH 800V 5A I2PAKFP |
1,499 |
|
Datasheet |
MDmesh™ | TO-262-3 Full Pack, I2PAK | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 5A (Tc) | 10V | 1.15Ohm @ 2.5A, 10V | Through Hole | 5V @ 100µA | 12 nC @ 10 V | 800 V | ±30V | 270 pF @ 100 V | - | - | TO-281 (I2PAKFP) | - | 25W (Tc) | -55°C ~ 150°C (TJ) |
|
FCA36N60NFMOSFET N-CH 600V 34.9A TO3PN |
2,540 |
|
Datasheet |
FRFET®, SupreMOS® | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 34.9A (Tc) | 10V | 95mOhm @ 18A, 10V | Through Hole | 5V @ 250µA | 112 nC @ 10 V | 600 V | ±30V | 4245 pF @ 100 V | - | - | TO-3PN | - | 312W (Tc) | -55°C ~ 150°C (TJ) |
