FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MMFTN490K-AQMOSFET SOT-23 N 40V 3A Diotec Semiconductor |
4,651 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 3A | 4.5V, 10V | 72mOhm @ 3A, 10V | 2.5V @ 250µA | 9.4 nC @ 10 V | ±20V | 415 pF @ 20 V | - | 1.25W | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
DI025N06PTMOSFET POWERQFN 3X3 N 65V Diotec Semiconductor |
4,804 |
|
Datasheet |
- | 8-PowerVDFN | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 65 V | 25A (Tc) | 4.5V, 10V | 20mOhm @ 8A, 10V | 2.5V @ 250µA | 9 nC @ 30 V | ±20V | 406 pF @ 30 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-QFN (3x3) |
|
|
DI040N03PTMOSFET POWERQFN 3X3 N 30V Diotec Semiconductor |
4,808 |
|
Datasheet |
- | 8-PowerVDFN | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 40A (Tc) | 4.5V, 10V | 7mOhm @ 15A, 10V | 2.5V @ 250µA | 12 nC @ 4.5 V | ±20V | 1120 pF @ 15 V | - | 30W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-QFN (3x3) |
|
|
MMFTP5618-AQMOSFET SOT-23 P -60V -1.25A Diotec Semiconductor |
3,435 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 1.25A (Ta) | 4.5V, 10V | 170mOhm @ 1.25A, 10V | 3V @ 1mA | 7 nC @ 10 V | ±20V | 361 pF @ 30 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
|
MD10P380MOSFET SOT-26 P -100V -1.6A Diotec Semiconductor |
2,057 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 1.6A (Ta) | 4.5V, 10V | 325mOhm @ 1A, 10V | 2.3V @ 250µA | 16 nC @ 10 V | ±20V | 1046 pF @ 50 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-26 |
|
MMFTN3404A-AQMOSFET SOT-23 N 30V 5.6A Diotec Semiconductor |
4,492 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 5.6A (Ta) | 4.5V, 10V | 23mOhm @ 5.6A, 10V | 2.1V @ 250µA | - | ±20V | 744 pF @ 0 V | - | 1.25W (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
|
DI1A5N60D1MOSFET DPAK N 600V 1.5A 8OHM Diotec Semiconductor |
3,720 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 1.5A (Tc) | 10V | 8Ohm @ 750mA, 10V | 4V @ 250µA | 7.9 nC @ 10 V | ±30V | 156 pF @ 25 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
DI010N03PW-AQMOSFET POWERQFN 2X2 N 30V Diotec Semiconductor |
2,838 |
|
Datasheet |
- | 6-PowerUDFN | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Tc) | 4.5V, 10V | 12mOhm @ 10A, 10V | 2V @ 250µA | 25 nC @ 10 V | ±20V | 1120 pF @ 15 V | - | 1.4W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-QFN (2x2) |
|

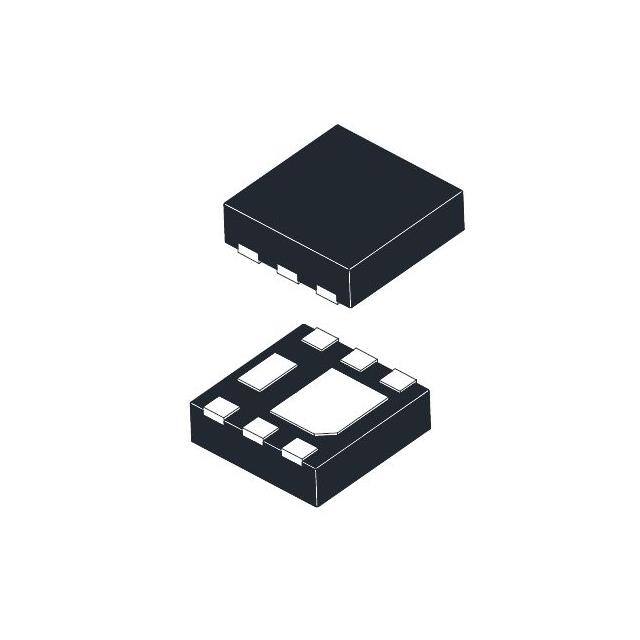

DI005P04PW-AQMOSFET POWERQFN 2X2 P -40V Diotec Semiconductor |
3,962 |
|
Datasheet |
- | 6-PowerUDFN | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 5.4A (Ta) | 4.5V, 10V | 40mOhm @ 4A, 10V | 2.5V @ 250µA | 19 nC @ 10 V | ±12V | 1078 pF @ 20 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-QFN (2x2) |
|
DI068N03PQ-AQMOSFET POWERQFN 5X6 N 30V Diotec Semiconductor |
3,550 |
|
Datasheet |
- | 8-PowerTDFN | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 68A (Tc) | 4.5V, 10V | 4mOhm @ 20A, 10V | 2.5V @ 250µA | 79 nC @ 10 V | ±20V | 3650 pF @ 15 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-QFN (5x6) |
