FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DI050N04PT-AQMOSFET, POWERQFN 3X3, 40V, 50A, Diotec Semiconductor |
4,930 | - |
|
- |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 50A (Tc) | 4.5V, 10V | 6.5mOhm @ 10A, 10V | 2.5V @ 250µA | 59 nC @ 10 V | ±20V | 3255 pF @ 25 V | - | 37W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-QFN (3x3) |
|

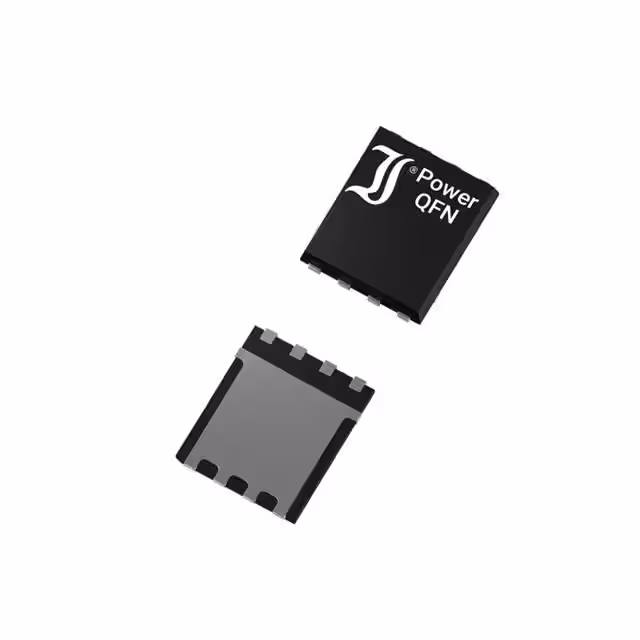

DI048N04PT-AQMOSFET, POWERQFN 3X3, 40V, 48A, Diotec Semiconductor |
4,275 | - |
|
- |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 48A (Tc) | 4.5V, 10V | 7.6mOhm @ 12A, 10V | 2.5V @ 250µA | 48.5 nC @ 10 V | ±20V | 2268 pF @ 25 V | - | 31W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-QFN (3x3) |
|
|
DI040P04PTMOSFET POWERQFN 3X3 P -40V -40A Diotec Semiconductor |
4,850 | - |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 40A (Tc) | 4.5V, 10V | 15mOhm @ 10A, 10V | 2.5V @ 250µA | 59 nC @ 10 V | ±20V | 3538 pF @ 20 V | - | 22.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-QFN (3x3) |
|
DI100N04PQ-AQMOSFET PWRQFN 5X6 40V 0.0021OHM Diotec Semiconductor |
5,000 | - |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 4.5V, 10V | 2.1mOhm @ 50A, 10V | 2.4V @ 250µA | 64 nC @ 10 V | ±20V | 4766 pF @ 20 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-QFN (5x6) |
|
|
DI075N04PT-AQMOSFET PWRQFN 3X3 40V 0.0028OHM Diotec Semiconductor |
5,000 | - |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 4.5V, 10V | 2.8mOhm @ 23A, 10V | 2.5V @ 250µA | 46 nC @ 10 V | ±20V | 2936 pF @ 25 V | - | 35.7W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-QFN (3x3) |
|
|
DI040P04PT-AQMOSFET, POWERQFN 3X3, -40V, -40A Diotec Semiconductor |
4,985 | - |
|
- |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 40A (Tc) | 4.5V, 10V | 15mOhm @ 10A, 10V | 2.5V @ 250µA | 59 nC @ 10 V | ±20V | 3538 pF @ 20 V | - | 22.7W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-QFN (3x3) |
|
DIT095N08MOSFET TO220AB N 80V 0.0066OHM Diotec Semiconductor |
1,000 | - |
|
Datasheet |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 95A (Tc) | 10V | 8mOhm @ 40A, 10V | 4V @ 250µA | 109 nC @ 10 V | ±20V | 6800 pF @ 25 V | - | 170W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
DIT150N03MOSFET TO220AB N 30V 0.0023OHM Diotec Semiconductor |
986 | - |
|
Datasheet |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 150A (Tc) | 4.5V, 10V | 3mOhm @ 20A, 10V | 2.5V @ 250µA | 38 nC @ 10 V | ±20V | 5000 pF @ 25 V | - | 130W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
DI110N04PQ-AQMOSFET, POWERQFN 5X6, 40V, 110A, Diotec Semiconductor |
4,787 | - |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 110A (Tc) | 4.5V, 10V | 2.5mOhm @ 23A, 10V | 2.5V @ 250µA | 48 nC @ 10 V | ±20V | 2980 pF @ 25 V | - | 45W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-QFN (5x6) |
|
DI020P06PTMOSFET PWRQFN 3X3 -60V 0.045OHM Diotec Semiconductor |
4,997 | - |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | P-Channel | - | - | 20A | - | - | - | - | - | - | - | 29.7W | - | - | - | Surface Mount | PowerQFN 3x3 |
