FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | FET Type | Technology | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Mounting Style | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Drain to Source Voltage (Vdss) | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | Qualification | FET Feature | Supplier Device Package | Grade | Power Dissipation (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFP60N25X3MOSFET N-CH 250V 60A TO220AB |
45 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 60A (Tc) | 10V | 23mOhm @ 30A, 10V | Through Hole | 4.5V @ 1.5mA | 50 nC @ 10 V | 250 V | ±20V | 3610 pF @ 25 V | - | - | TO-220AB (IXFP) | - | 320W (Tc) | -55°C ~ 150°C (TJ) |
|
IPW60R055CFD7XKSA1MOSFET N-CH 600V 38A TO247-3 |
73 |
|
Datasheet |
OptiMOS™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 38A (Tc) | 10V | 55mOhm @ 18A, 10V | Through Hole | 4.5V @ 900µA | 79 nC @ 10 V | 600 V | ±20V | 3194 pF @ 400 V | - | - | PG-TO247-3 | - | 178W (Tc) | -55°C ~ 150°C (TJ) |
|
IXFH14N85XMOSFET N-CH 850V 14A TO247-3 |
52 |
|
Datasheet |
HiPerFET™, Ultra X | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 14A (Tc) | 10V | 550mOhm @ 500mA, 10V | Through Hole | 5.5V @ 1mA | 30 nC @ 10 V | 850 V | ±30V | 1043 pF @ 25 V | - | - | TO-247 (IXTH) | - | 460W (Tc) | -55°C ~ 150°C (TJ) |
|
IXFA130N15X3MOSFET N-CH 150V 130A TO263AA |
68 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 130A (Tc) | 10V | 9mOhm @ 65A, 10V | Surface Mount | 4.5V @ 1.5mA | 80 nC @ 10 V | 150 V | ±20V | 5230 pF @ 25 V | - | - | TO-263AA (IXFA) | - | 390W (Tc) | -55°C ~ 150°C (TJ) |
|
IXFT70N20Q3MOSFET N-CH 200V 70A TO268 |
30 |
|
Datasheet |
HiPerFET™, Q3 Class | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 70A (Tc) | 10V | 40mOhm @ 35A, 10V | Surface Mount | 6.5V @ 4mA | 67 nC @ 10 V | 200 V | ±20V | 3150 pF @ 25 V | - | - | TO-268AA | - | 690W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXFT50N30Q3MOSFET N-CH 300V 50A TO268 |
30 |
|
Datasheet |
HiPerFET™, Q3 Class | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 50A (Tc) | 10V | 80mOhm @ 25A, 10V | Surface Mount | 6.5V @ 4mA | 65 nC @ 10 V | 300 V | ±20V | 3165 pF @ 25 V | - | - | TO-268AA | - | 690W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXFT30N50Q3MOSFET N-CH 500V 30A TO268 |
30 |
|
Datasheet |
HiPerFET™, Q3 Class | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 30A (Tc) | 10V | 200mOhm @ 15A, 10V | Surface Mount | 6.5V @ 4mA | 62 nC @ 10 V | 500 V | ±20V | 3200 pF @ 25 V | - | - | TO-268AA | - | 690W (Tc) | -55°C ~ 150°C (TJ) |
|
IMZA65R083M1HXKSA1SILICON CARBIDE MOSFET, PG-TO247 |
28 |
|
Datasheet |
CoolSiC™ | TO-247-4 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 26A (Tc) | 18V | 111mOhm @ 11.2A, 18V | Through Hole | 5.7V @ 3.3mA | 19 nC @ 18 V | 650 V | +20V, -2V | 624 pF @ 400 V | - | - | PG-TO247-4-3 | - | 104W (Tc) | -55°C ~ 175°C (TJ) |
|
|
IXFH110N10PMOSFET N-CH 100V 110A TO247AD |
70 |
|
Datasheet |
HiPerFET™, Polar | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 110A (Tc) | 10V | 15mOhm @ 500mA, 10V | Through Hole | 5V @ 4mA | 110 nC @ 10 V | 100 V | ±20V | 3550 pF @ 25 V | - | - | TO-247AD (IXFH) | - | 480W (Tc) | -55°C ~ 175°C (TJ) |
|
|
IXTP100N15X4MOSFET N-CH 150V 100A TO220 |
46 |
|
Datasheet |
Ultra X4 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100A (Tc) | 10V | 11.5mOhm @ 50A, 10V | Through Hole | 4.5V @ 250µA | 74 nC @ 10 V | 150 V | ±20V | 3970 pF @ 25 V | - | - | TO-220-3 | - | 375W (Tc) | -55°C ~ 175°C (TJ) |
|
STL36N60M6MOSFET N-CH 600V 25A PWRFLAT HV |
50 |
|
Datasheet |
MDmesh™ M6 | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25A (Tc) | 10V | 110mOhm @ 12.5A, 10V | Surface Mount | 4.75V @ 250µA | 44.3 nC @ 10 V | 600 V | ±25V | 1960 pF @ 100 V | - | - | PowerFlat™ (8x8) HV | - | 160W (Tc) | -55°C ~ 150°C (TJ) |
|
MSC060SMA070B4TRANS SJT N-CH 700V 39A TO247-4 |
50 |
|
Datasheet |
- | TO-247-4 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 39A (Tc) | 20V | 75mOhm @ 20A, 20V | Through Hole | 2.4V @ 1mA | 56 nC @ 20 V | 700 V | +23V, -10V | 1175 pF @ 700 V | - | - | TO-247-4 | - | 143W (Tc) | -55°C ~ 175°C (TJ) |
|
IMW65R057M1HXKSA1SILICON CARBIDE MOSFET, PG-TO247 |
84 |
|
Datasheet |
CoolSiC™ | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 35A (Tc) | 18V | 74mOhm @ 16.7A, 18V | Through Hole | 5.7V @ 5mA | 28 nC @ 18 V | 650 V | +20V, -2V | 930 pF @ 400 V | - | - | PG-TO247-3-41 | - | 133W (Tc) | -55°C ~ 175°C (TJ) |
|
IPWS65R050CFD7AXKSA1MOSFET N-CH 650V 45A TO247-3-41 |
55 |
|
Datasheet |
CoolMOS™ CFD7A | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 45A (Tc) | 10V | 50mOhm @ 24.8A, 10V | Through Hole | 4.5V @ 1.24mA | 102 nC @ 10 V | 650 V | ±20V | 4975 pF @ 400 V | AEC-Q101 | - | PG-TO247-3-41 | Automotive | 227W (Tc) | -40°C ~ 150°C (TJ) |
|
R6030ENZ4C13MOSFET N-CH 600V 30A TO247 |
15 |
|
Datasheet |
- | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 30A (Tc) | 10V | 130mOhm @ 14.5A, 10V | Through Hole | 4V @ 1mA | 85 nC @ 10 V | 600 V | ±20V | 2100 pF @ 25 V | - | - | TO-247 | - | 305W (Tc) | 150°C (TJ) |
|
TK39J60W,S1VQMOSFET N-CH 600V 38.8A TO3P |
12 |
|
Datasheet |
DTMOSIV | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 38.8A (Ta) | 10V | 65mOhm @ 19.4A, 10V | Through Hole | 3.7V @ 1.9mA | 110 nC @ 10 V | 600 V | ±30V | 4100 pF @ 300 V | - | - | TO-3P(N) | - | 270W (Tc) | 150°C (TJ) |
|
NVMTS0D4N04CTXGMOSFET N-CH 40V 79.8A/558A 8DFNW |
71 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 79.8A (Ta), 558A (Tc) | 10V | 0.45mOhm @ 50A, 10V | Surface Mount | 4V @ 250µA | 251 nC @ 10 V | 40 V | ±20V | 16500 pF @ 20 V | AEC-Q101 | - | 8-DFNW (8.3x8.4) | Automotive | 5W | -55°C ~ 175°C (TJ) |
|
APT14M120SMOSFET N-CH 1200V 14A D3PAK |
47 |
|
Datasheet |
POWER MOS 8™ | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 14A (Tc) | 10V | 1.1Ohm @ 7A, 10V | Surface Mount | 5V @ 1mA | 145 nC @ 10 V | 1200 V | ±30V | 4765 pF @ 25 V | - | - | D3PAK | - | 625W (Tc) | -55°C ~ 150°C (TJ) |
|
IPA65R045C7XKSA1MOSFET N-CH 650V 18A TO220-FP |
8 |
|
Datasheet |
CoolMOS™ C7 | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 18A (Tc) | 10V | 45mOhm @ 24.9A, 10V | Through Hole | 4V @ 1.25mA | 93 nC @ 10 V | 650 V | ±20V | 4340 pF @ 400 V | - | - | PG-TO220-FP | - | 35W (Tc) | -55°C ~ 150°C (TJ) |
|

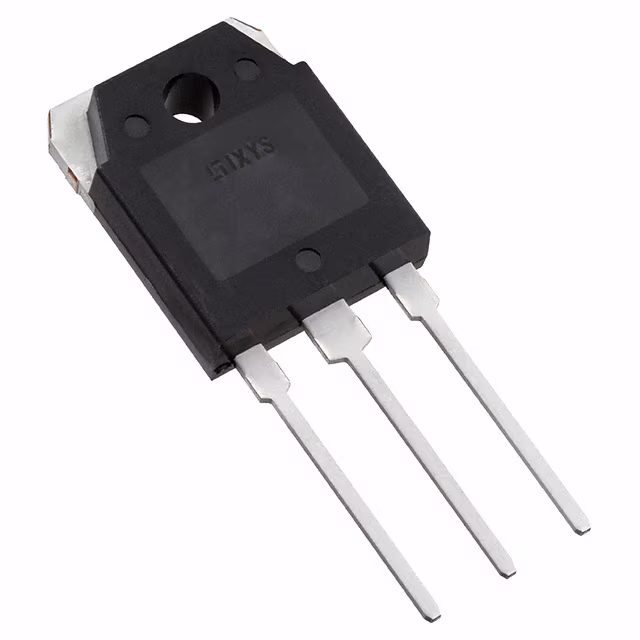

IXFQ120N25X3MOSFET N-CHANNEL 250V 120A TO3P |
25 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 120A (Tc) | 10V | 12mOhm @ 60A, 10V | Through Hole | 4.5V @ 4mA | 122 nC @ 10 V | 250 V | ±20V | 7870 pF @ 25 V | - | - | TO-3P | - | 520W (Tc) | -55°C ~ 150°C (TJ) |
