FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | FET Type | Technology | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Mounting Style | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Drain to Source Voltage (Vdss) | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | Qualification | FET Feature | Supplier Device Package | Grade | Power Dissipation (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STW21N65M5MOSFET N-CH 650V 17A TO247-3 |
74 |
|
Datasheet |
MDmesh™ V | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 17A (Tc) | 10V | 190mOhm @ 8.5A, 10V | Through Hole | 5V @ 250µA | 50 nC @ 10 V | 650 V | ±25V | 1950 pF @ 100 V | - | - | TO-247-3 | - | 125W (Tc) | 150°C (TJ) |
|
TK2R4A08QM,S4XUMOS10 TO-220SIS 80V 2.4MOHM |
78 |
|
Datasheet |
U-MOSX-H | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100A (Tc) | 6V, 10V | 2.44mOhm @ 50A, 10V | Through Hole | 3.5V @ 2.2mA | 179 nC @ 10 V | 80 V | ±20V | 13000 pF @ 40 V | - | - | TO-220SIS | - | 47W (Tc) | 175°C |
|
GT070N15TMOSFET N-CH 150V140A 320W TO-22 |
50 |
|
Datasheet |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 140A (Tc) | 10V | 5.8mOhm @ 30A, 10V | Through Hole | 4V @ 250µA | 89 nC @ 10 V | 150 V | ±20V | 5864 pF @ 75 V | - | - | TO-220 | - | 320W (Tc) | -55°C ~ 150°C (TJ) |
|
STI24N60M6MOSFET N-CH 600V I2PAK |
90 |
|
Datasheet |
MDmesh™ M6 | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 17A (Tj) | 10V | 190mOhm @ 8.5A, 10V | Through Hole | 4.75V @ 250µA | 23 nC @ 10 V | 600 V | ±25V | 960 pF @ 100 V | - | - | I2PAK | - | 130W (Tc) | -55°C ~ 150°C (TJ) |
|

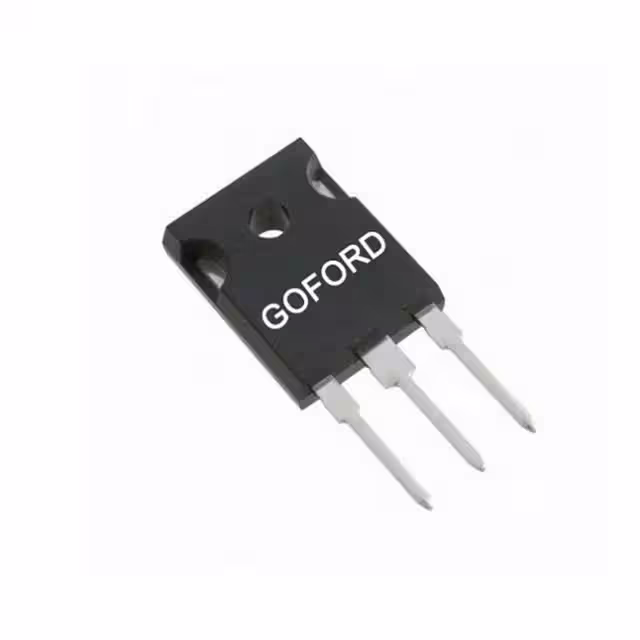

GC20N65QN650V,RD(MAX)<170M@10V,VTH2.5V~4 |
33 |
|
Datasheet |
Cool MOS™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 20A (Tc) | 10V | 170mOhm @ 10A, 10V | Through Hole | 4.5V @ 250µA | 39 nC @ 10 V | 650 V | ±30V | 1724 pF @ 100 V | - | - | TO-247 | - | 151W (Tc) | -55°C ~ 150°C (TJ) |
|
GPI65008DF56GANFET N-CH 650V 8A DFN5X6 |
100 |
|
Datasheet |
- | Die | Tape & Reel (TR) | Active | N-Channel | GaNFET (Gallium Nitride) | 8A | 6V | - | Surface Mount | 1.4V @ 3.5mA | 2.1 nC @ 6 V | 650 V | +7.5V, -12V | 63 pF @ 400 V | - | - | Die | - | - | -55°C ~ 150°C (TJ) |
|
SIHP25N40D-E3MOSFET N-CH 400V 25A TO220AB |
53 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25A (Tc) | 10V | 170mOhm @ 13A, 10V | Through Hole | 5V @ 250µA | 88 nC @ 10 V | 400 V | ±30V | 1707 pF @ 100 V | - | - | TO-220AB | - | 278W (Tc) | -55°C ~ 150°C (TJ) |
|
SPA16N50C3XKSA1MOSFET N-CH 560V 16A TO220-3 |
34 |
|
Datasheet |
CoolMOS™ | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 16A (Tc) | 10V | 280mOhm @ 10A, 10V | Through Hole | 3.9V @ 675µA | 66 nC @ 10 V | 560 V | ±20V | 1600 pF @ 25 V | - | - | PG-TO220-3-31 | - | 34W (Tc) | -55°C ~ 150°C (TJ) |
|
|
GT023N10QMOSFET N-CH 100V 226A 250W TO-2 |
30 |
|
Datasheet |
SGT | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 226A (Tc) | 10V | 2.7mOhm @ 80A, 10V | Through Hole | 4V @ 250µA | 121 nC @ 10 V | 100 V | ±20V | 8488 pF @ 50 V | - | - | TO-247 | - | 250W (Tc) | -55°C ~ 175°C (TJ) |
|
STP210N75F6MOSFET N-CH 75V 120A TO220 |
46 |
|
Datasheet |
DeepGATE™, STripFET™ VI | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 120A (Tc) | 10V | 3.7mOhm @ 60A, 10V | Through Hole | 4V @ 250µA | 171 nC @ 10 V | 75 V | ±20V | 11800 pF @ 25 V | - | - | TO-220 | - | 300W (Tc) | -55°C ~ 175°C (TJ) |
|
|
2SJ297-91LP-CHANNEL POWER MOSFET |
83 |
|
Datasheet |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GC20N65QDMOSFET N-CH 650V 20A TO-247 |
30 |
|
Datasheet |
- | - | Tube | Active | - | MOSFET (Metal Oxide) | 20A (Tc) | 10V | 190mOhm @ 10A, 10V | Surface Mount | 5V @ 250µA | 39 nC @ 10 V | - | ±30V | 1729 pF @ 400 V | - | - | TO-247-3 | - | - | -55°C ~ 150°C (TJ) |
|
FDB9403L-F085MOSFET N-CH 40V 110A D2PAK |
2,029 |
|
Datasheet |
PowerTrench® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 110A (Tc) | 10V | 1.2mOhm @ 80A, 10V | Surface Mount | 3V @ 250µA | 245 nC @ 10 V | 40 V | ±20V | 13500 pF @ 20 V | AEC-Q101 | - | TO-263 (D2PAK) | Automotive | 333W (Tj) | -55°C ~ 175°C (TJ) |
|
|
IRF9143MOSFET P-CH 80V 15A TO204AE |
80 |
|
Datasheet |
HEXFET® | TO-204AE | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 15A | - | - | Through Hole | - | - | 80 V | - | - | - | - | TO-204AE | - | 125W | - |
|
R6509ENJTLMOSFET N-CH 650V 9A LPTS |
88 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 9A (Tc) | 10V | 585mOhm @ 2.8A, 10V | Surface Mount | 4V @ 230µA | 24 nC @ 10 V | 650 V | ±20V | 430 pF @ 25 V | - | - | LPTS | - | 94W (Tc) | 150°C (TJ) |
|
|
RCJ450N20TLMOSFET N-CH 200V 45A LPTS |
57 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 45A (Tc) | 10V | 55mOhm @ 22.5A, 10V | Surface Mount | 5V @ 1mA | 80 nC @ 10 V | 200 V | ±30V | 4200 pF @ 25 V | - | - | LPTS | - | 1.56W (Ta), 40W (Tc) | 150°C (TJ) |
|
BUK962R8-60E,118MOSFET N-CH 60V 120A D2PAK |
38 |
|
Datasheet |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 120A (Tc) | 5V | 2.5mOhm @ 25A, 10V | Surface Mount | 2.1V @ 1mA | 92 nC @ 5 V | 60 V | ±10V | 15600 pF @ 25 V | AEC-Q101 | - | D2PAK | Automotive | 324W (Tc) | -55°C ~ 175°C (TJ) |
|
STWA65N60DM6MOSFET N-CH 600V 38A TO247 |
35 |
|
Datasheet |
MDmesh™ DM6 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 38A (Tc) | - | - | Through Hole | - | - | 600 V | ±25V | - | - | - | TO-247 Long Leads | - | - | - |
|
STL19N60DM2MOSFET N-CH 600V 11A PWRFLAT HV |
99 |
|
Datasheet |
MDmesh™ DM2 | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 11A (Tc) | 10V | 320mOhm @ 5.5A, 10V | Surface Mount | 5V @ 250µA | 21 nC @ 10 V | 600 V | ±25V | - | - | - | PowerFlat™ (8x8) HV | - | 90W (Tc) | -55°C ~ 150°C (TJ) |
|
|
RFH75N0575A, 50V, 0.008OHM, N-CHANNEL, |
80 |
|
Datasheet |
- | TO-218-3 Isolated Tab, TO-218AC | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | - | - | - | Through Hole | - | - | 50 V | - | - | - | - | TO-218 Isolated | - | - | - |
