FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | FET Type | Technology | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Mounting Style | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Drain to Source Voltage (Vdss) | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | Qualification | FET Feature | Supplier Device Package | Grade | Power Dissipation (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NTMFS6H800NLT1GMOSFET N-CH 80V 30A/224A 5DFN |
4,799 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30A (Ta), 224A (Tc) | 4.5V, 10V | 1.9mOhm @ 50A, 10V | Surface Mount | 2V @ 330µA | 112 nC @ 10 V | 80 V | ±20V | 6900 pF @ 40 V | - | - | 5-DFN (5x6) (8-SOFL) | - | 3.9W (Ta), 214W (Tc) | -55°C ~ 175°C (TJ) |
|
AONS66811N |
3,589 |
|
Datasheet |
AlphaSGT2™ | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 41A (Ta), 200A (Tc) | 5V, 10V | 2.5mOhm @ 20A, 8V | Surface Mount | 3.8V @ 250µA | 110 nC @ 10 V | 80 V | ±20V | 5750 pF @ 40 V | - | - | 8-DFN (5x6) | - | 7.5W (Ta), 258W (Tc) | -55°C ~ 175°C (TJ) |
|
|
TPH9R00CQ5,LQ150V U-MOS X-H SOP-ADVANCE(N) 9M |
10 |
|
Datasheet |
U-MOSX-H | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 64A (Tc) | 8V, 10V | 9mOhm @ 32A, 10V | Surface Mount | 4.5V @ 1mA | 44 nC @ 10 V | 150 V | ±20V | 5400 pF @ 75 V | - | - | 8-SOP Advance (5x5) | - | 210W (Tc) | 175°C |
|

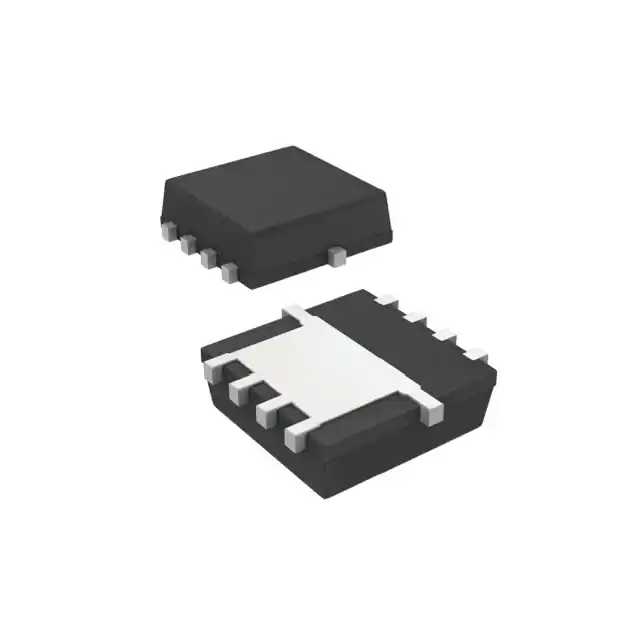

SIDR626LDP-T1-RE3MOSFET N-CH 60V 45.6A/2.4A PPAK |
4,553 |
|
Datasheet |
TrenchFET® Gen IV | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 45.6A (Ta) | 4.5V, 10V | 1.5mOhm @ 20A, 10V | Surface Mount | 2.5V @ 250µA | 135 nC @ 10 V | 60 V | ±20V | 5900 pF @ 30 V | - | - | PowerPAK® SO-8DC | - | 6.25W (Ta), 125W (Tc) | -55°C ~ 150°C (TJ) |
|
BSC110N15NS5ATMA1MOSFET N-CH 150V 76A TDSON |
3,993 |
|
Datasheet |
OptiMOS™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 76A (Tc) | 8V, 10V | 11mOhm @ 38A, 10V | Surface Mount | 4.6V @ 91µA | 35 nC @ 10 V | 150 V | ±20V | 2770 pF @ 75 V | - | - | PG-TDSON-8-7 | - | 125W (Tc) | -55°C ~ 150°C (TJ) |
|
|
NVMFS3D6N10MCLT1GMOSFET N-CH 100V 19A/132A 5DFN |
4,307 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 19A (Ta), 132A (Tc) | 4.5V, 10V | 3.6mOhm @ 48A, 10V | Surface Mount | 3V @ 270µA | 60 nC @ 10 V | 100 V | ±20V | 4411 pF @ 50 V | AEC-Q101 | - | 5-DFN (5x6) (8-SOFL) | Automotive | 3W (Ta), 139W (Tc) | -55°C ~ 175°C (TJ) |
|
FQPF47P06MOSFET P-CH 60V 30A TO220F |
4,556 |
|
Datasheet |
QFET® | TO-220-3 Full Pack | Tube | Active | P-Channel | MOSFET (Metal Oxide) | 30A (Tc) | 10V | 26mOhm @ 15A, 10V | Through Hole | 4V @ 250µA | 110 nC @ 10 V | 60 V | ±25V | 3600 pF @ 25 V | - | - | TO-220F-3 | - | 62W (Tc) | -55°C ~ 175°C (TJ) |
|
IRLB3036PBFMOSFET N-CH 60V 195A TO220AB |
4,859 |
|
Datasheet |
HEXFET® | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 195A (Tc) | 4.5V, 10V | 2.4mOhm @ 165A, 10V | Through Hole | 2.5V @ 250µA | 140 nC @ 4.5 V | 60 V | ±16V | 11210 pF @ 50 V | - | - | TO-220AB | - | 380W (Tc) | -55°C ~ 175°C (TJ) |
|
FDMS86500DCMOSFET N-CH 60V 29A DLCOOL56 |
2,627 |
|
Datasheet |
Dual Cool™, PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 29A (Ta), 108A (Tc) | 8V, 10V | 2.3mOhm @ 29A, 10V | Surface Mount | 4.5V @ 250µA | 107 nC @ 10 V | 60 V | ±20V | 7680 pF @ 30 V | - | - | 8-PQFN (5x6) | - | 3.2W (Ta), 125W (Tc) | -55°C ~ 150°C (TJ) |
|
SQM120P10_10M1LGE3MOSFET P-CH 100V 120A TO263 |
2,558 |
|
Datasheet |
TrenchFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 120A (Tc) | 4.5V, 10V | 10.1mOhm @ 30A, 10V | Surface Mount | 2.5V @ 250µA | 190 nC @ 10 V | 100 V | ±20V | 9000 pF @ 25 V | AEC-Q101 | - | TO-263 (D2PAK) | Automotive | 375W (Tc) | -55°C ~ 175°C (TJ) |
|
NTMTS0D6N04CLTXGMOSFET N-CH 40V 554.5A |
2,909 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 554.5A (Tc) | 4.5V, 10V | 0.42mOhm @ 50A, 10V | Surface Mount | 2V @ 250µA | 126 nC @ 4.5 V | 40 V | ±20V | 16013 pF @ 20 V | - | - | 8-DFNW (8.3x8.4) | - | 5W | -55°C ~ 175°C (TJ) |
|
|
TK055U60Z1,RQ600V DTMOS VI TOLL 55MOHM |
4,870 |
|
Datasheet |
- | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40A (Ta) | 10V | 55mOhm @ 15A, 10V | Surface Mount | 4V @ 1.69mA | 65 nC @ 10 V | 600 V | ±30V | 3680 pF @ 300 V | - | - | TOLL | - | 270W (Tc) | 150°C |
|
|
NTMTS1D2N08HT8-80V IN PQFN88 FOR INDU |
8 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 41A (Ta), 335A (Tc) | 6V, 10V | 1.1mOhm @ 90A, 10V | Surface Mount | 4V @ 590µA | 147 nC @ 10 V | 80 V | ±20V | 10100 pF @ 40 V | - | - | 8-DFNW (8.3x8.4) | - | 5W (Ta), 300W (Tc) | -55°C ~ 150°C (TJ) |
|
|
PSMN1R9-80SSEJAPPLICATION SPECIFIC POWER MOSFE |
4,624 |
|
Datasheet |
- | SOT-1235 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 286A (Tc) | 10V | 1.9mOhm @ 25A, 10V | Surface Mount | 3.6V @ 1mA | 232 nC @ 10 V | 80 V | ±20V | 17140 pF @ 40 V | - | - | LFPAK88 (SOT1235) | - | 340W (Tc) | -55°C ~ 175°C (TJ) |
|
IRFP90N20DPBFMOSFET N-CH 200V 94A TO247AC |
3,509 |
|
Datasheet |
HEXFET® | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 94A (Tc) | 10V | 23mOhm @ 56A, 10V | Through Hole | 5V @ 250µA | 270 nC @ 10 V | 200 V | ±30V | 6040 pF @ 25 V | - | - | TO-247AC | - | 580W (Tc) | -55°C ~ 175°C (TJ) |
|
|
IPTC044N15NM5ATMA1OPTIMOS 5 POWER MOSFET |
11 |
|
Datasheet |
OptiMOS™ 5 | 16-PowerSOP Module | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 19.4A (Ta), 174A (Tc) | 8V, 10V | 4.4mOhm @ 50A, 10V | Surface Mount | 4.6V @ 235µA | 89 nC @ 10 V | 150 V | ±20V | 7000 pF @ 75 V | - | - | PG-HDSOP-16-2 | - | 3.8W (Ta), 300W (Tc) | -55°C ~ 175°C (TJ) |
|
FDBL86062-F085MOSFET N-CH 100V 300A 8HPSOF |
4,672 |
|
Datasheet |
- | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 300A (Tc) | 10V | 2mOhm @ 80A, 10V | Surface Mount | 4.5V @ 250µA | 124 nC @ 10 V | 100 V | ±20V | 6970 pF @ 50 V | - | - | 8-HPSOF | - | 429W (Tc) | -55°C ~ 175°C (TJ) |
|
|
IPT039N15N5ATMA1OPTIMOS 5 POWER MOSFET |
4,832 |
|
Datasheet |
OptiMOS™ | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 21A (Ta), 190A (Tc) | 8V, 10V | 3.9mOhm @ 50A, 10V | Surface Mount | 4.6V @ 257µA | 98 nC @ 10 V | 150 V | ±20V | 7700 pF @ 75 V | - | - | PG-HSOF-8 | - | 3.8W (Ta), 319W (Tc) | -55°C ~ 175°C (TJ) |
|
IXTA26P20PMOSFET P-CH 200V 26A TO263 |
2,145 |
|
Datasheet |
Polar | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | P-Channel | MOSFET (Metal Oxide) | 26A (Tc) | 10V | 170mOhm @ 13A, 10V | Surface Mount | 4V @ 250µA | 56 nC @ 10 V | 200 V | ±20V | 2740 pF @ 25 V | - | - | TO-263AA | - | 300W (Tc) | -55°C ~ 175°C (TJ) |
|
|
IXTA52P10P-TRLMOSFET P-CH 100V 52A TO263 |
3,229 |
|
Datasheet |
PolarP™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 52A (Tc) | 10V | 50mOhm @ 26A, 10V | Surface Mount | 4V @ 250µA | 60 nC @ 10 V | 100 V | ±20V | 2845 pF @ 25 V | - | - | TO-263 (D2PAK) | - | 300W (Tc) | -55°C ~ 150°C (TJ) |
