FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | FET Type | Technology | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Mounting Style | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Drain to Source Voltage (Vdss) | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | Qualification | FET Feature | Supplier Device Package | Grade | Power Dissipation (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXTT82N25PMOSFET N-CH 250V 82A TO268 |
2,247 |
|
Datasheet |
Polar | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 82A (Tc) | 10V | 35mOhm @ 41A, 10V | Surface Mount | 5V @ 250µA | 142 nC @ 10 V | 250 V | ±20V | 4800 pF @ 25 V | - | - | TO-268AA | - | 500W (Tc) | -55°C ~ 150°C (TJ) |
.jpg)
|
IXFX120N25PMOSFET N-CH 250V 120A PLUS247-3 |
2,144 |
|
Datasheet |
HiPerFET™, Polar | TO-247-3 Variant | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 120A (Tc) | 10V | 24mOhm @ 60A, 10V | Through Hole | 5V @ 4mA | 185 nC @ 10 V | 250 V | ±20V | 8000 pF @ 25 V | - | - | PLUS247™-3 | - | 700W (Tc) | -55°C ~ 175°C (TJ) |
|
|
IXFT94N30P3MOSFET N-CH 300V 94A TO268 |
4,981 |
|
Datasheet |
HiPerFET™, Polar3™ | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 94A (Tc) | 10V | 36mOhm @ 47A, 10V | Surface Mount | 5V @ 4mA | 102 nC @ 10 V | 300 V | ±20V | 5510 pF @ 25 V | - | - | TO-268AA | - | 1040W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXFT44N50PMOSFET N-CH 500V 44A TO268 |
4,470 |
|
Datasheet |
HiPerFET™, Polar | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 44A (Tc) | 10V | 140mOhm @ 22A, 10V | Surface Mount | 5V @ 4mA | 98 nC @ 10 V | 500 V | ±30V | 5440 pF @ 25 V | - | - | TO-268AA | - | 658W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXFX64N50PMOSFET N-CH 500V 64A PLUS247-3 |
2 |
|
Datasheet |
HiPerFET™, Polar | TO-247-3 Variant | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 64A (Tc) | 10V | 85mOhm @ 32A, 10V | Through Hole | 5.5V @ 8mA | 150 nC @ 10 V | 500 V | ±30V | 8700 pF @ 25 V | - | - | PLUS247™-3 | - | 830W (Tc) | -55°C ~ 150°C (TJ) |
|
TK62N60W,S1VFMOSFET N-CH 600V 61.8A TO247 |
2,405 |
|
Datasheet |
DTMOSIV | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 61.8A (Ta) | 10V | 40mOhm @ 30.9A, 10V | Through Hole | 3.7V @ 3.1mA | 180 nC @ 10 V | 600 V | ±30V | 6500 pF @ 300 V | - | - | TO-247 | - | 400W (Tc) | 150°C (TJ) |
|
IXFH120N30X3MOSFET N-CH 300V 120A TO247 |
2,617 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 120A (Tc) | 10V | 11mOhm @ 60A, 10V | Through Hole | 4.5V @ 4mA | 170 nC @ 10 V | 300 V | ±20V | 10500 pF @ 25 V | - | - | TO-247 (IXTH) | - | 735W (Tc) | -55°C ~ 150°C (TJ) |
.jpg)
|
IXFR48N60PMOSFET N-CH 600V 32A ISOPLUS247 |
3,870 |
|
Datasheet |
HiPerFET™, Polar | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 32A (Tc) | 10V | 150mOhm @ 24A, 10V | Through Hole | 5V @ 8mA | 150 nC @ 10 V | 600 V | ±30V | 8860 pF @ 25 V | - | - | ISOPLUS247™ | - | 300W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXFX150N30P3MOSFET N-CH 300V 150A PLUS247-3 |
3,500 |
|
Datasheet |
HiPerFET™, Polar3™ | TO-247-3 Variant | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 150A (Tc) | 10V | 19mOhm @ 75A, 10V | Through Hole | 5V @ 8mA | 197 nC @ 10 V | 300 V | ±20V | 12100 pF @ 25 V | - | - | PLUS247™-3 | - | 1300W (Tc) | -55°C ~ 150°C (TJ) |
|
IXFK64N60PMOSFET N-CH 600V 64A TO264AA |
3,891 |
|
Datasheet |
HiPerFET™, Polar | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 64A (Tc) | 10V | 96mOhm @ 500mA, 10V | Through Hole | 5V @ 8mA | 200 nC @ 10 V | 600 V | ±30V | 12000 pF @ 25 V | - | - | TO-264AA (IXFK) | - | 1040W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXTT16N20D2MOSFET N-CH 200V 16A TO268 |
3,953 |
|
Datasheet |
Depletion | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel, Depletion Mode | MOSFET (Metal Oxide) | 16A (Tc) | - | 73mOhm @ 8A, 0V | Surface Mount | - | 208 nC @ 5 V | 200 V | ±20V | 5500 pF @ 25 V | - | - | TO-268AA | - | 695W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXFT320N10T2MOSFET N-CH 100V 320A TO268 |
3 |
|
Datasheet |
HiPerFET™, TrenchT2™ | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 320A (Tc) | 10V | 3.5mOhm @ 100A, 10V | Surface Mount | 4V @ 250µA | 430 nC @ 10 V | 100 V | ±20V | 26000 pF @ 25 V | - | - | TO-268AA | - | 1000W (Tc) | -55°C ~ 175°C (TJ) |
|
|
IXFR140N30PMOSFET N-CH 300V 70A ISOPLUS247 |
3,091 |
|
Datasheet |
HiPerFET™, Polar | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 70A (Tc) | 10V | 26mOhm @ 70A, 10V | Through Hole | 5V @ 8mA | 185 nC @ 10 V | 300 V | ±20V | 14800 pF @ 25 V | - | - | ISOPLUS247™ | - | 300W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXFX20N120PMOSFET N-CH 1200V 20A PLUS247-3 |
4,598 |
|
Datasheet |
HiPerFET™, Polar | TO-247-3 Variant | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 20A (Tc) | 10V | 570mOhm @ 10A, 10V | Through Hole | 6.5V @ 1mA | 193 nC @ 10 V | 1200 V | ±30V | 11100 pF @ 25 V | - | - | PLUS247™-3 | - | 780W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXFX120N65X2MOSFET N-CH 650V 120A PLUS247-3 |
2,715 |
|
Datasheet |
HiPerFET™, Ultra X2 | TO-247-3 Variant | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 120A (Tc) | 10V | 24mOhm @ 60A, 10V | Through Hole | 5.5V @ 8mA | 225 nC @ 10 V | 650 V | ±30V | 15500 pF @ 25 V | - | - | PLUS247™-3 | - | 1250W (Tc) | -55°C ~ 150°C (TJ) |
|

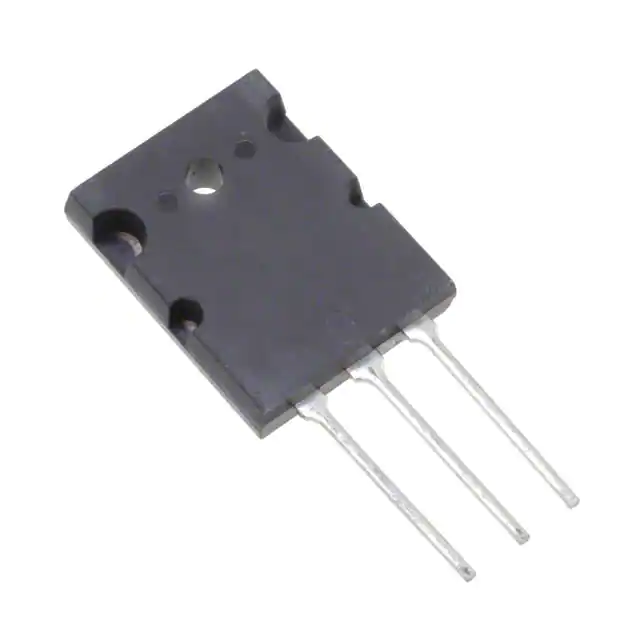

TK100L60W,VQMOSFET N-CH 600V 100A TO3P |
3 |
|
Datasheet |
DTMOSIV | TO-3PL | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100A (Tc) | 10V | 18mOhm @ 50A, 10V | Through Hole | 3.7V @ 5mA | 360 nC @ 10 V | 600 V | ±30V | 15000 pF @ 30 V | - | - | TO-3P(L) | - | 797W (Tc) | 150°C (TJ) |
|
IXFN48N60PMOSFET N-CH 600V 40A SOT227B |
3,783 |
|
Datasheet |
HiPerFET™, Polar | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 40A (Tc) | 10V | 140mOhm @ 4A, 10V | Chassis Mount | 5.5V @ 8mA | 150 nC @ 10 V | 600 V | ±30V | 8860 pF @ 25 V | - | - | SOT-227B | - | 625W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXFN170N25X3MOSFET N-CH 250V 170A SOT227B |
2,770 |
|
Datasheet |
HiPerFET™, Ultra X3 | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 170A (Tc) | 10V | 7.4mOhm @ 85A, 10V | Chassis Mount | 4.5V @ 4mA | 190 nC @ 10 V | 250 V | ±20V | 13500 pF @ 25 V | - | - | SOT-227B | - | 390W (Tc) | -55°C ~ 150°C (TJ) |
|
APT17F120JMOSFET N-CH 1200V 18A ISOTOP |
3,502 |
|
Datasheet |
POWER MOS 8™ | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 18A (Tc) | 10V | 580mOhm @ 14A, 10V | Chassis Mount | 5V @ 2.5mA | 300 nC @ 10 V | 1200 V | ±30V | 9670 pF @ 25 V | - | - | ISOTOP® | - | 545W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXTN8N150LMOSFET N-CH 1500V 7.5A SOT-227B |
4,201 |
|
Datasheet |
Linear | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 7.5A (Tc) | 20V | 3.6Ohm @ 4A, 20V | Chassis Mount | 8V @ 250µA | 250 nC @ 15 V | 1500 V | ±30V | 8000 pF @ 25 V | - | - | SOT-227B | - | 545W (Tc) | -55°C ~ 150°C (TJ) |
