FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | FET Type | Technology | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Mounting Style | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Drain to Source Voltage (Vdss) | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | Qualification | FET Feature | Supplier Device Package | Grade | Power Dissipation (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFQ72N30X3MOSFET N-CH 300V 72A TO3P |
2,163 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 72A (Tc) | 10V | 19mOhm @ 36A, 10V | Through Hole | 4.5V @ 1.5mA | 82 nC @ 10 V | 300 V | ±20V | 5400 pF @ 25 V | - | - | TO-3P | - | 390W (Tc) | -55°C ~ 150°C (TJ) |
|
STB12NM50T4MOSFET N-CH 550V 12A D2PAK |
3,542 |
|
Datasheet |
MDmesh™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 12A (Tc) | 10V | 350mOhm @ 6A, 10V | Surface Mount | 5V @ 50µA | 39 nC @ 10 V | 550 V | ±30V | 1000 pF @ 25 V | - | - | D2PAK | - | 160W (Tc) | -65°C ~ 150°C (TJ) |
|
IPP65R090CFD7XKSA1HIGH POWER_NEW |
3,221 |
|
Datasheet |
CoolMOS™ CFD7 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 25A (Tc) | 10V | 90mOhm @ 12.5A, 10V | Through Hole | 4.5V @ 630µA | 53 nC @ 10 V | 650 V | ±20V | 2513 pF @ 400 V | - | - | PG-TO220-3 | - | 127W (Tc) | -55°C ~ 150°C (TJ) |
|

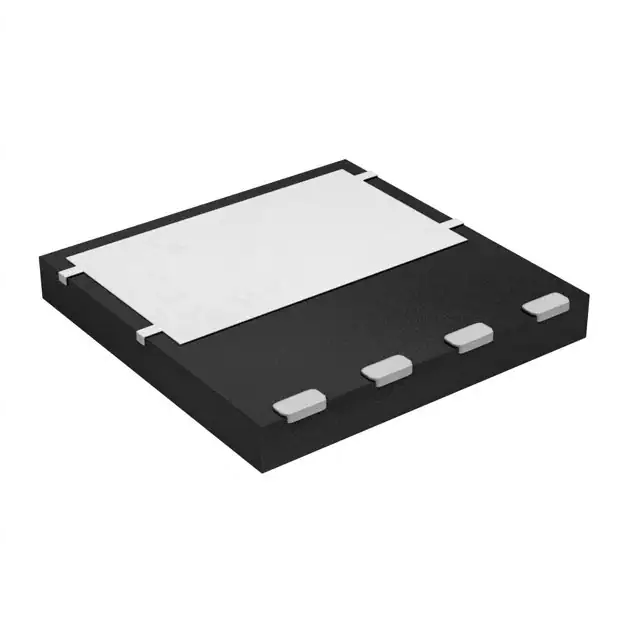

SIHH20N50E-T1-GE3MOSFET N-CH 500V 22A PPAK 8 X 8 |
3,479 |
|
Datasheet |
E | 8-PowerTDFN | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 22A (Tc) | 10V | 147mOhm @ 10A, 10V | Surface Mount | 4V @ 250µA | 84 nC @ 10 V | 500 V | ±30V | 2063 pF @ 100 V | - | - | PowerPAK® 8 x 8 | - | 174W (Tc) | -55°C ~ 150°C (TJ) |
|
SIHA17N80E-E3MOSFET N-CHANNEL 800V 15A TO220 |
4 |
|
Datasheet |
E | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 15A (Tc) | 10V | 290mOhm @ 8.5A, 10V | Through Hole | 4V @ 250µA | 122 nC @ 10 V | 800 V | ±30V | 2408 pF @ 100 V | - | - | TO-220 Full Pack | - | 35W (Tc) | -55°C ~ 150°C (TJ) |
|
IPW60R105CFD7XKSA1MOSFET N-CH 600V 21A TO247-3 |
4 |
|
Datasheet |
CoolMOS™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 21A (Tc) | 10V | 105mOhm @ 9.3A, 10V | Through Hole | 4.5V @ 470µA | 42 nC @ 10 V | 600 V | ±20V | 1752 pF @ 400 V | - | - | PG-TO247-3-41 | - | 106W (Tc) | -55°C ~ 150°C (TJ) |
|
STB23NM50NMOSFET N-CH 500V 17A D2PAK |
2,729 |
|
Datasheet |
MDmesh™ II | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 17A (Tc) | 10V | 190mOhm @ 8.5A, 10V | Surface Mount | 4V @ 250µA | 45 nC @ 10 V | 500 V | ±25V | 1330 pF @ 50 V | - | - | TO-263 (D2PAK) | - | 125W (Tc) | 150°C (TJ) |
|
IXFH14N60PMOSFET N-CH 600V 14A TO247AD |
19 |
|
Datasheet |
HiPerFET™, Polar | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 14A (Tc) | 10V | 550mOhm @ 7A, 10V | Through Hole | 5.5V @ 2.5mA | 36 nC @ 10 V | 600 V | ±30V | 2500 pF @ 25 V | - | - | TO-247AD (IXFH) | - | 300W (Tc) | -55°C ~ 150°C (TJ) |
|
IPT60R065S7XTMA1MOSFET N-CH 600V 8A 8HSOF |
4,213 |
|
Datasheet |
CoolMOS™S7 | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 8A (Tc) | 12V | 65mOhm @ 8A, 12V | Surface Mount | 4.5V @ 490µA | 51 nC @ 12 V | 600 V | ±20V | 1932 pF @ 300 V | - | - | PG-HSOF-8-2 | - | 167W (Tc) | -55°C ~ 150°C (TJ) |
|
TK31N60W,S1VFMOSFET N CH 600V 30.8A TO247 |
4,873 |
|
Datasheet |
DTMOSIV | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 30.8A (Ta) | 10V | 88mOhm @ 15.4A, 10V | Through Hole | 3.7V @ 1.5mA | 86 nC @ 10 V | 600 V | ±30V | 3000 pF @ 300 V | - | - | TO-247 | - | 230W (Tc) | 150°C (TJ) |
|
|
STHU36N60DM6AGAUTOMOTIVE-GRADE N-CHANNEL 600 V |
3,726 |
|
Datasheet |
- | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 29A (Tc) | 10V | 99mOhm @ 14.5A, 10V | Surface Mount | 4.75V @ 250µA | 46 nC @ 10 V | 600 V | ±25V | 1960 pF @ 100 V | - | - | HU3PAK | Automotive | 210W (Tc) | -55°C ~ 150°C (TJ) |
|
TK16J60W5,S1VQX35 PB-F POWER MOSFET TRANSISTOR |
7 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 15.8A (Ta) | 10V | 230mOhm @ 7.9A, 10V | Through Hole | 4.5V @ 790µA | 43 nC @ 10 V | 600 V | ±30V | 1350 pF @ 300 V | - | - | TO-3P(N) | - | 130W (Tc) | 150°C |
|
SIHH180N60E-T1-GE3MOSFET N-CH 600V 19A PPAK 8 X 8 |
2,014 |
|
Datasheet |
E | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 19A (Tc) | 10V | 180mOhm @ 9.5A, 10V | Surface Mount | 5V @ 250µA | 33 nC @ 10 V | 600 V | ±30V | 1085 pF @ 100 V | - | - | PowerPAK® 8 x 8 | - | 114W (Tc) | -55°C ~ 150°C (TJ) |
|
IXTP76N25TMOSFET N-CH 250V 76A TO220AB |
3 |
|
Datasheet |
Trench | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 76A (Tc) | 10V | 39mOhm @ 500mA, 10V | Through Hole | 5V @ 1mA | 92 nC @ 10 V | 250 V | ±30V | 4500 pF @ 25 V | - | - | TO-220-3 | - | 460W (Tc) | -55°C ~ 150°C (TJ) |
|
STF23NM50NMOSFET N-CH 500V 17A TO220FP |
2,891 |
|
Datasheet |
MDmesh™ II | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 17A (Tc) | 10V | 190mOhm @ 8.5A, 10V | Through Hole | 4V @ 250µA | 45 nC @ 10 V | 500 V | ±25V | 1330 pF @ 50 V | - | - | TO-220FP | - | 30W (Tc) | 150°C (TJ) |
|
NTBLS1D7N08HMOSFET - POWER, SINGLE, N-CHANNE |
3,413 |
|
Datasheet |
- | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 29A (Ta), 203A (Tc) | 6V, 10V | 1.7mOhm @ 80A, 10V | Surface Mount | 4V @ 479µA | 121 nC @ 10 V | 80 V | ±20V | 7675 pF @ 40 V | - | - | 8-HPSOF | - | 3.5W (Ta), 167W (Tc) | -55°C ~ 175°C (TJ) |
|
|
SIHB17N80E-T1-GE3MOSFET N-CH 800V 15A D2PAK |
3,390 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 15A (Tc) | 10V | 290mOhm @ 8.5A, 10V | Surface Mount | 4V @ 250µA | 122 nC @ 10 V | 800 V | ±30V | 2408 pF @ 100 V | - | - | TO-263 (D2PAK) | - | 208W (Tc) | -55°C ~ 150°C (TJ) |
|
|
IXFH80N25X3MOSFET N-CH 250V 80A TO247 |
21 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 80A (Tc) | 10V | 16mOhm @ 40A, 10V | Through Hole | 4.5V @ 1.5mA | 83 nC @ 10 V | 250 V | ±20V | 5430 pF @ 25 V | - | - | TO-247 (IXTH) | - | 390W (Tc) | -55°C ~ 150°C (TJ) |
|
IXTA130N15X4-7MOSFET N-CH 150V 130A TO263-7 |
4,713 |
|
Datasheet |
Ultra X4 | TO-263-7, D2PAK (6 Leads + Tab) | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 130A (Tc) | 10V | 8mOhm @ 65A, 10V | Surface Mount | 4.5V @ 250µA | 87 nC @ 10 V | 150 V | ±20V | 4770 pF @ 25 V | - | - | TO-263-7 (IXTA) | - | 400W (Tc) | -55°C ~ 150°C (TJ) |
|
|
NTP125N65S3HPOWER MOSFET, N-CHANNEL, SUPERFE |
2,394 |
|
Datasheet |
SuperFET® III | TO-220-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 24A (Tc) | 10V | 125mOhm @ 12A, 10V | Through Hole | 4V @ 2.1mA | 44 nC @ 10 V | 650 V | ±30V | 2200 pF @ 400 V | - | - | TO-220-3 | - | 171W (Tc) | -55°C ~ 150°C (TJ) |
