FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | FET Type | Technology | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Mounting Style | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Drain to Source Voltage (Vdss) | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | Qualification | FET Feature | Supplier Device Package | Grade | Power Dissipation (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

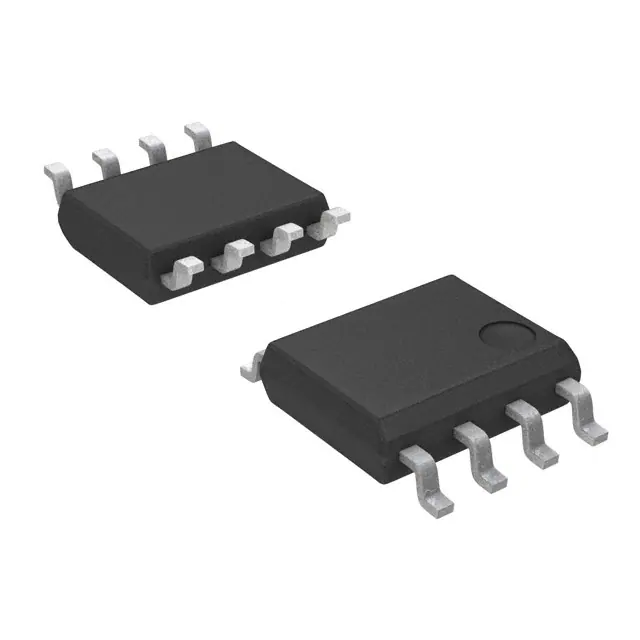

DMT6013LSS-13MOSFET N-CH 60V 10A 8SO |
4,123 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 10A (Ta) | 4.5V, 10V | 14.3mOhm @ 10A, 10V | Surface Mount | 2.5V @ 250µA | 15 nC @ 10 V | 60 V | ±20V | 1081 pF @ 30 V | - | - | 8-SOP | - | 1.4W (Ta) | -55°C ~ 150°C (TJ) |
|
DMT35M4LFDF4-7MOSFET BVDSS: 25V~30V X2-DFN2020 |
2,629 |
|
Datasheet |
- | 6-PowerXDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 12A (Ta) | 4.5V, 10V | 9mOhm @ 20A, 10V | Surface Mount | 2.5V @ 250µA | 14.9 nC @ 10 V | 30 V | ±20V | 1009 pF @ 15 V | - | - | X2-DFN2020-6 (Type W) | - | 910mW (Ta) | -55°C ~ 150°C (TJ) |
|
|
MCT01N65K-TPMOSFET |
4,780 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 1A (Ta) | 10V | 11Ohm @ 100mA, 10V | Surface Mount | 4V @ 250µA | 3 nC @ 10 V | 650 V | ±30V | 34 pF @ 300 V | - | - | SOT-223 | - | 2W (Tj) | -55°C ~ 150°C (TJ) |
|
AO4435LMOSFET P-CH 30V 10.5A 8SOIC |
2,010 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 10.5A (Ta) | 5V, 20V | 14mOhm @ 11A, 20V | Surface Mount | 3V @ 250µA | 24 nC @ 10 V | 30 V | ±25V | 1400 pF @ 15 V | - | - | 8-SOIC | - | 3.1W (Ta) | -55°C ~ 150°C (TJ) |
Type-UX;-;-8-Top.jpg)
|
DMT35M4LFVW-13MOSFET BVDSS: 25V~30V POWERDI333 |
2,712 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 16A (Ta), 60A (Tc) | 4.5V, 10V | 6mOhm @ 20A, 10V | Surface Mount, Wettable Flank | 2.5V @ 250µA | 16.1 nC @ 10 V | 30 V | ±20V | 982 pF @ 15 V | - | - | PowerDI3333-8 (SWP) Type UX | - | 1.5W (Ta) | -55°C ~ 150°C (TJ) |
|
|
PJW1NA50_R2_00001500V N-CHANNEL MOSFET |
2,529 |
|
- |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 300mA (Ta) | 10V | 9Ohm @ 500mA, 10V | Surface Mount | 4V @ 250µA | 4.2 nC @ 10 V | 500 V | ±30V | 95 pF @ 25 V | - | - | SOT-223 | - | 3.3W (Tc) | -55°C ~ 150°C (TJ) |
|
|
SIB422EDK-T4-GE3MOSFET N-CH 20V 7.1A/9A PPAK |
2,508 |
|
Datasheet |
TrenchFET® | PowerPAK® SC-75-6 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 7.1A (Ta), 9A (Tc) | 1.5V, 4.5V | 30mOhm @ 5A, 4.5V | Surface Mount | 1V @ 250µA | 18 nC @ 10 V | 20 V | ±8V | - | - | - | PowerPAK® SC-75-6 | - | 2.5W (Ta), 13W (Tc) | -55°C ~ 150°C (TJ) |
|
DMP3035SFG-7MOSFET P-CH 30V 8.5A PWRDI3333-8 |
2,955 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 8.5A (Ta) | 5V, 10V | 20mOhm @ 8A, 10V | Surface Mount | 2.5V @ 250µA | 17 nC @ 10 V | 30 V | ±25V | 1633 pF @ 15 V | - | - | POWERDI3333-8 | - | 950mW (Ta) | -55°C ~ 150°C (TJ) |
|
PJW7N04-AU_R2_000A140V N-CHANNEL ENHANCEMENT MODE M |
2,253 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 6.5A (Ta) | 4.5V, 10V | 42mOhm @ 5A, 10V | Surface Mount | 2.5V @ 250µA | 4.8 nC @ 4.5 V | 40 V | ±20V | 410 pF @ 20 V | AEC-Q101 | - | SOT-223 | Automotive | 3.7W (Ta) | -55°C ~ 175°C (TJ) |
|
AOL1404GMOSFET N-CH 20V 30A/46A ULTRASO8 |
3,398 |
|
- |
- | 3-PowerSMD, Flat Leads | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 30A (Ta), 46A (Tc) | 2.5V, 4.5V | 4.6mOhm @ 20A, 4.5V | Surface Mount | 1.25V @ 250µA | 45 nC @ 4.5 V | 20 V | ±12V | 3300 pF @ 10 V | - | - | UltraSO-8™ | - | 6.2W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) |
|
NTGS4111PT1MOSFET P-CH 30V 2.6A 6TSOP |
2,231 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 2.6A (Ta) | 4.5V, 10V | 60mOhm @ 3.7A, 10V | Surface Mount | 3V @ 250µA | 32 nC @ 10 V | 30 V | ±20V | 750 pF @ 15 V | - | - | 6-TSOP | - | 630mW (Ta) | -55°C ~ 150°C (TJ) |
|
|
DMN6069SFVW-7MOSFET BVDSS: 41V~60V POWERDI333 |
4,962 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 4A (Ta), 14A (Tc) | 4.5V, 10V | 69mOhm @ 3A, 10V | Surface Mount, Wettable Flank | 3V @ 250µA | 14 nC @ 10 V | 60 V | ±20V | 740 pF @ 30 V | - | - | PowerDI3333-8 (SWP) Type UX | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) |
|
ZXMN2A03E6TCMOSFET N-CH 20V 3.7A SOT23-6 |
4,116 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 3.7A (Ta) | 2.5V, 4.5V | 55mOhm @ 7.2A, 4.5V | Surface Mount | 700mV @ 250µA (Min) | 8.2 nC @ 4.5 V | 20 V | ±12V | 837 pF @ 10 V | - | - | SOT-23-6 | - | 1.1W (Ta) | -55°C ~ 150°C (TJ) |
|
|
ZXMN3A03E6TCMOSFET N-CH 30V 3.7A SOT23-6 |
3,693 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 3.7A (Ta) | 4.5V, 10V | 50mOhm @ 7.8A, 10V | Surface Mount | 1V @ 250µA | 12.6 nC @ 10 V | 30 V | ±20V | 600 pF @ 25 V | - | - | SOT-23-6 | - | 1.1W (Ta) | -55°C ~ 150°C (TJ) |
|
SI8447DB-T2-E1MOSFET P-CH 20V 11A 6MICRO FOOT |
4,116 |
|
- |
TrenchFET® | 6-UFBGA | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 11A (Tc) | 1.7V, 4.5V | 75mOhm @ 1A, 4.5V | Surface Mount | 1.2V @ 250µA | 25 nC @ 10 V | 20 V | ±12V | 600 pF @ 10 V | - | - | 6-Micro Foot™ (1.5x1) | - | 2.77W (Ta), 13W (Tc) | -55°C ~ 150°C (TJ) |
|
2N7002BKMB,315MOSFET N-CH 60V 450MA DFN1006B-3 |
4,501 |
|
Datasheet |
- | 3-XFDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 450mA (Ta) | 10V | 1.6Ohm @ 450mA, 10V | Surface Mount | 2.1V @ 250µA | 0.6 nC @ 4.5 V | 60 V | ±20V | 50 pF @ 10 V | - | - | DFN1006B-3 | - | 360mW (Ta) | -55°C ~ 150°C (TJ) |
|
|
DMP1011LFVQ-13MOSFET BVDSS: 8V~24V POWERDI3333 |
2,155 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 13A (Ta), 19A (Tc) | 2.5V, 4.5V | 11.7mOhm @ 12A, 4.5V | Surface Mount, Wettable Flank | 1.2V @ 250µA | 9.5 nC @ 6 V | 12 V | -6V | 913 pF @ 6 V | AEC-Q101 | - | PowerDI3333-8 (SWP) Type UX | Automotive | 1.05W | -55°C ~ 150°C (TJ) |
|
DMT5015LFDF-7MOSFET N-CH 50V 9.1A 6UDFN |
4,278 |
|
- |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 9.1A (Ta) | 4.5V, 10V | 15mOhm @ 8A, 10V | Surface Mount | 2V @ 250µA | 14 nC @ 10 V | 50 V | ±16V | 902.7 pF @ 25 V | - | - | U-DFN2020-6 (Type F) | - | 820mW (Ta) | -55°C ~ 150°C (TJ) |
|
|
MCU20N06C-TPMOSFET |
3,921 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20A | 4.5V, 10V | 37mOhm @ 10A, 10V | Surface Mount | 2.5V @ 250µA | 19 nC @ 10 V | 60 V | ±20V | 821 pF @ 30 V | - | - | TO-252 (DPAK) | - | 125W (Tj) | -55°C ~ 150°C |
|
|
DMN3024SFG-13MOSFET N-CH 30V 7.5A PWRDI3333-8 |
4,771 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 7.5A (Ta) | 4.5V, 10V | 23mOhm @ 10A, 10V | Surface Mount | 2.4V @ 250µA | 10.5 nC @ 10 V | 30 V | ±25V | 479 pF @ 15 V | - | - | POWERDI3333-8 | - | 900mW (Ta) | -55°C ~ 150°C (TJ) |
