FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | FET Type | Technology | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Mounting Style | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Drain to Source Voltage (Vdss) | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | Qualification | FET Feature | Supplier Device Package | Grade | Power Dissipation (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PJA3456E_R1_00001SOT-23, MOSFET |
3,146 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 7.3A (Ta) | 1.8V, 4.5V | 15.5mOhm @ 5A, 4.5V | Surface Mount | 1V @ 250µA | 16 nC @ 4.5 V | 20 V | ±10V | 1177 pF @ 10 V | - | - | SOT-23 | - | 1.25W (Ta) | -55°C ~ 150°C (TJ) |
|

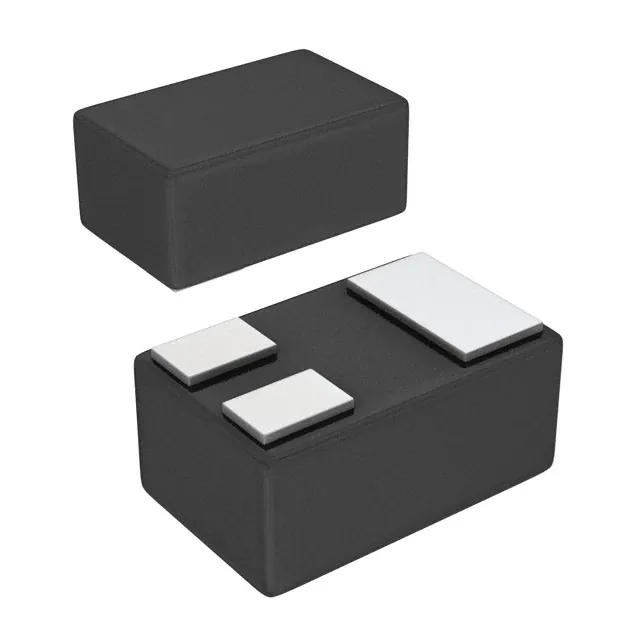

PJQ1916_R1_0000120V N-CHANNEL ENHANCEMENT MODE M |
2,786 |
|
- |
- | 3-UFDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 950mA (Ta) | 1.2V, 4.5V | 300mOhm @ 500mA, 4.5V | Surface Mount | 1V @ 250µA | 1.1 nC @ 4.5 V | 20 V | ±8V | 46 pF @ 10 V | - | - | DFN1006-3 | - | 500mW (Ta) | -55°C ~ 150°C (TJ) |
|
IPF10N03LA GMOSFET N-CH 25V 30A TO252-3 |
2,490 |
|
Datasheet |
OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30A (Tc) | 4.5V, 10V | 10.4mOhm @ 30A, 10V | Surface Mount | 2V @ 20µA | 11 nC @ 5 V | 25 V | ±20V | 1358 pF @ 15 V | - | - | PG-TO252-3-23 | - | 52W (Tc) | -55°C ~ 175°C (TJ) |
|
DMTH8008SFG-7MOSFET BVDSS: 61V~100V POWERDI33 |
2,094 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 17A (Ta), 68A (Tc) | 6V, 10V | 7mOhm @ 14A, 10V | Surface Mount | 4V @ 1mA | 31.7 nC @ 10 V | 80 V | ±20V | 1945 pF @ 40 V | - | - | POWERDI3333-8 | - | 1.2W (Ta), 50W (Tc) | -55°C ~ 175°C (TJ) |
|
NTD80N02GMOSFET N-CH 24V 80A DPAK |
4,001 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 80A (Tc) | 4.5V, 10V | 5.8mOhm @ 80A, 10V | Surface Mount | 3V @ 250µA | 42 nC @ 4.5 V | 24 V | ±20V | 2600 pF @ 20 V | - | - | DPAK | - | 75W (Tc) | -55°C ~ 150°C (TJ) |
|
HUFA76619D3MOSFET N-CH 100V 18A IPAK |
2,720 |
|
Datasheet |
UltraFET™ | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 18A (Tc) | 4.5V, 10V | 85mOhm @ 18A, 10V | Through Hole | 3V @ 250µA | 29 nC @ 10 V | 100 V | ±16V | 767 pF @ 25 V | - | - | IPAK | - | 75W (Tc) | -55°C ~ 175°C (TJ) |
|
HUFA76619D3SMOSFET N-CH 100V 18A TO252AA |
2,601 |
|
Datasheet |
UltraFET™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 18A (Tc) | 4.5V, 10V | 85mOhm @ 18A, 10V | Surface Mount | 3V @ 250µA | 29 nC @ 10 V | 100 V | ±16V | 767 pF @ 25 V | - | - | TO-252AA | - | 75W (Tc) | -55°C ~ 175°C (TJ) |
|
FQP1N50MOSFET N-CH 500V 1.4A TO220-3 |
2,844 |
|
Datasheet |
QFET® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1.4A (Tc) | 10V | 9Ohm @ 700mA, 10V | Through Hole | 5V @ 250µA | 5.5 nC @ 10 V | 500 V | ±30V | 150 pF @ 25 V | - | - | TO-220-3 | - | 40W (Tc) | -55°C ~ 150°C (TJ) |
|
|
FQP2N40MOSFET N-CH 400V 1.8A TO220-3 |
4,419 |
|
Datasheet |
QFET® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1.8A (Tc) | 10V | 5.8Ohm @ 900mA, 10V | Through Hole | 5V @ 250µA | 5.5 nC @ 10 V | 400 V | ±30V | 150 pF @ 25 V | - | - | TO-220-3 | - | 40W (Tc) | -55°C ~ 150°C (TJ) |
|
FQPF2N60MOSFET N-CH 600V 1.6A TO220F |
2,559 |
|
Datasheet |
QFET® | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1.6A (Tc) | 10V | 4.7Ohm @ 800mA, 10V | Through Hole | 5V @ 250µA | 11 nC @ 10 V | 600 V | ±30V | 350 pF @ 25 V | - | - | TO-220F-3 | - | 28W (Tc) | -55°C ~ 150°C (TJ) |
|
FQB8N25TMMOSFET N-CH 250V 8A D2PAK |
3,541 |
|
Datasheet |
QFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 8A (Tc) | 10V | 550mOhm @ 4A, 10V | Surface Mount | 5V @ 250µA | 15 nC @ 10 V | 250 V | ±30V | 530 pF @ 25 V | - | - | TO-263 (D2PAK) | - | 3.13W (Ta), 87W (Tc) | -55°C ~ 150°C (TJ) |
|
DMT10H009LSSQ-13MOSFET BVDSS: 61V~100V SO-8 T&R |
2,025 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 13A (Ta), 48A (Tc) | 4.5V, 10V | 9mOhm @ 10A, 10V | Surface Mount | 2.5V @ 250µA | 40.2 nC @ 10 V | 100 V | ±20V | 2309 pF @ 50 V | AEC-Q101 | - | 8-SO | Automotive | 1.8W (Ta) | -55°C ~ 150°C (TJ) |
|
STD80N6F7MOSFET N-CH 60V 40A DPAK |
3,507 |
|
Datasheet |
STripFET™ F7 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40A (Tc) | 10V | 8mOhm @ 20A, 10V | Surface Mount | 4V @ 250µA | 25 nC @ 10 V | 60 V | ±20V | 1600 pF @ 30 V | - | - | TO-252 (DPAK) | - | 100W (Tc) | -55°C ~ 175°C (TJ) |
|
|
AONS36312N |
3,459 |
|
Datasheet |
- | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 42.5A (Ta), 85A (Tc) | 4.5V, 10V | 2.1mOhm @ 20A, 10V | Surface Mount | 1.9V @ 250µA | 60 nC @ 10 V | 30 V | ±12V | 2500 pF @ 15 V | - | - | 8-DFN (5x6) | - | 6.2W (Ta), 48W (Tc) | -55°C ~ 150°C (TJ) |
|
DMT31M7LSS-13MOSFET BVDSS: 25V~30V SO-8 T&R 2 |
4,772 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25A (Ta), 78A (Tc) | 4.5V, 10V | 2.7mOhm @ 20A, 10V | Surface Mount | 3V @ 250µA | 84 nC @ 10 V | 30 V | ±20V | 5492 pF @ 15 V | - | - | 8-SO | - | 1.7W (Ta), 5.9W (Tc) | -55°C ~ 150°C (TJ) |
|
|
DMP4009SPSW-13MOSFET BVDSS: 31V~40V POWERDI506 |
2,481 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 79A (Tc) | 4.5V, 10V | 11mOhm @ 9.8A, 10V | Surface Mount, Wettable Flank | 2.5V @ 250µA | 112 nC @ 10 V | 40 V | ±20V | 5697 pF @ 20 V | - | - | PowerDI5060-8 (Type UX) | - | 3.9W (Ta), 119W (Tc) | -55°C ~ 150°C (TJ) |
|
|
XP6NA6R3MTMOSFET N CH 60V 21.6A PMPAK5X6 |
2,093 |
|
Datasheet |
XP6NA6R3 | 8-PowerLDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 21.6A (Ta), 68A (Tc) | 6V, 10V | 6.3mOhm @ 20A, 10V | Surface Mount | 4V @ 250µA | 56 nC @ 10 V | 60 V | ±20V | 2960 pF @ 50 V | - | - | 8-PMPAK (5x6) | - | 5W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) |
|
|
XP6NA6R0CMT-LMOSFET N CH 60V 21.7A PMPAK5X6L |
4,024 |
|
Datasheet |
XP6NA6R0C | 8-PowerLDFN | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 21.7A (Ta), 68A (Tc) | 6V, 10V | 6mOhm @ 20A, 10V | Surface Mount | 3.6V @ 250µA | 56 nC @ 10 V | 60 V | ±20V | 2960 pF @ 50 V | - | - | 8-PMPAK (5x6) | - | 5W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) |
|
IPU78CN10N GMOSFET N-CH 100V 13A TO251-3 |
2,839 |
|
Datasheet |
OptiMOS™ | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 13A (Tc) | 10V | 78mOhm @ 13A, 10V | Through Hole | 4V @ 12µA | 11 nC @ 10 V | 100 V | ±20V | 716 pF @ 50 V | - | - | PG-TO251-3 | - | 31W (Tc) | -55°C ~ 175°C (TJ) |
|
RP1L055SNTRMOSFET N-CH 60V 5.5A MPT6 |
3,124 |
|
Datasheet |
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 5.5A (Ta) | 4V, 10V | 49mOhm @ 5.5A, 10V | Surface Mount | 3V @ 1mA | 14 nC @ 10 V | 60 V | ±20V | 730 pF @ 10 V | - | - | MPT6 | - | 2W (Ta) | 150°C (TJ) |
