Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCXA503-1R0M1.0uH 20% Shielded High Current Allied Components International |
3,623 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 12.2 A | 14.3A | - | Shielded | 7.6mOhm Max | 1 µH | - | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.122" (3.10mm) |
|

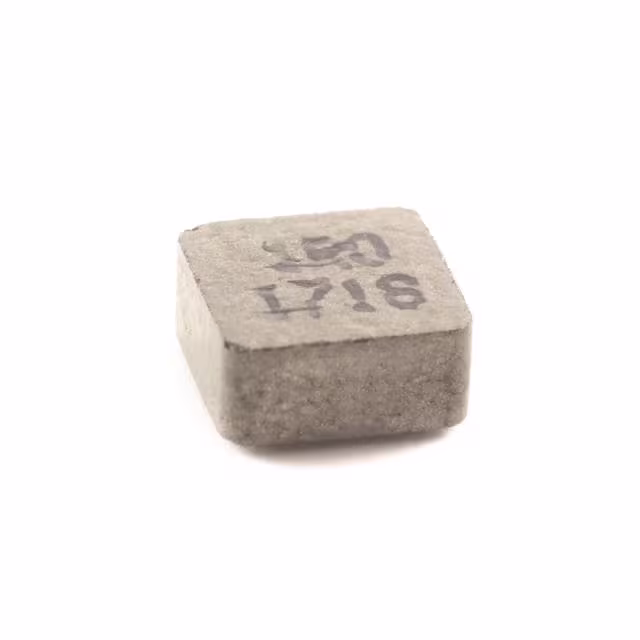

PCXA402-R72M.72uH 20% Shielded High Current Allied Components International |
2,411 |
|
Datasheet |
* | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 10.5 A | 10.6A | - | Shielded | 11.6mOhm Max | 720 nH | - | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
|
PCXA402-1R5M1.5uH 20% Shielded High Current Allied Components International |
2,187 |
|
Datasheet |
* | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 7.6 A | 7.4A | - | Shielded | 23.5mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|

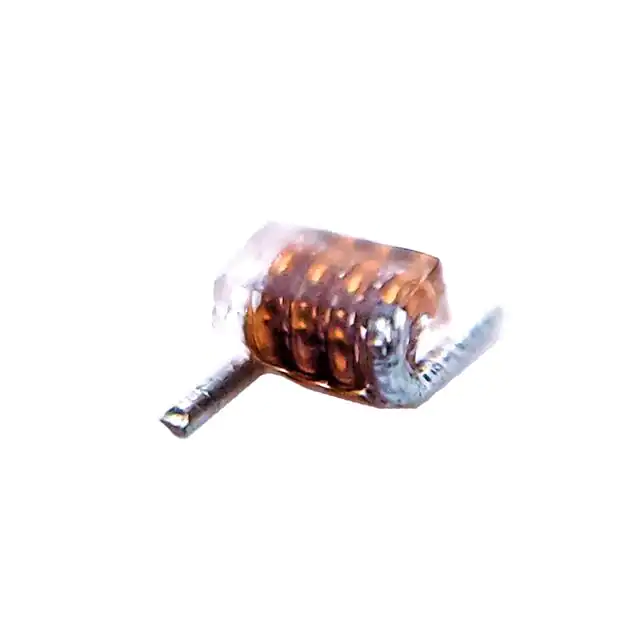

SMAC10-2K-RC1.65nH 10% SMD AirCore Inductor Allied Components International |
4,704 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±10% | 1.6 A | - | - | Shielded | 4mOhm Max | 1.65 nH | 100 @ 800MHz | 10.2GHz | Surface Mount | - | 0.087" L x 0.056" W (2.20mm x 1.42mm) | - | -40°C ~ 125°C | 800 MHz | 0.060" (1.52mm) |
|
|
SMAC10-3J-RC2.55nH 5% SMD Air Core Inductor Allied Components International |
2,956 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±5% | 1.6 A | - | - | Shielded | 5mOhm Max | 2.55 nH | 100 @ 800MHz | 8.2GHz | Surface Mount | - | 0.087" L x 0.056" W (2.20mm x 1.42mm) | - | -40°C ~ 125°C | 800 MHz | 0.060" (1.52mm) |
|
|
SMAC10-4G-RC3.85nH 2% SMD Air Core Inductor Allied Components International |
4,671 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±2% | 1.6 A | - | - | Shielded | 6mOhm Max | 3.85 nH | 100 @ 800MHz | 7.5GHz | Surface Mount | - | 0.087" L x 0.056" W (2.20mm x 1.42mm) | - | -40°C ~ 125°C | 800 MHz | 0.060" (1.52mm) |
|
SMAC15-9J-RC9.85nH 5% SMD Air Core Inductor Allied Components International |
3,484 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±5% | 1.6 A | - | - | Shielded | 13mOhm Max | 9.85 nH | 100 @ 800MHz | 5.2GHz | Surface Mount | - | 0.159" L x 0.056" W (4.04mm x 1.42mm) | - | -40°C ~ 125°C | 800 MHz | 0.060" (1.52mm) |
|

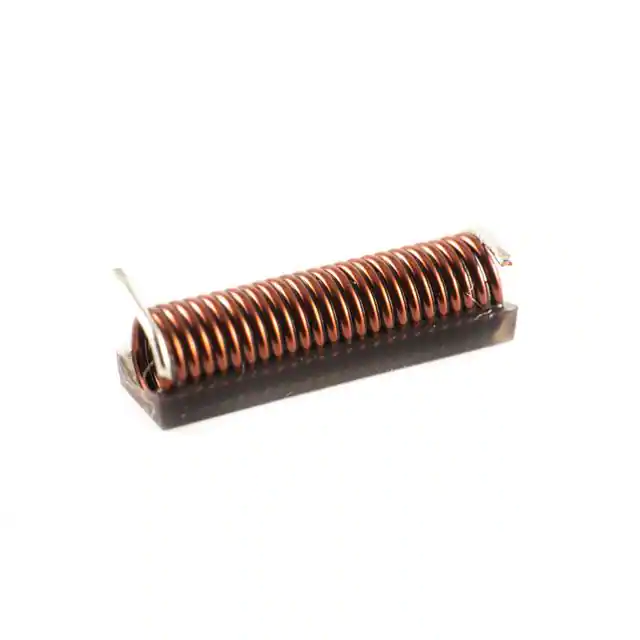

SMAC60-R10L-RC100NH 15% SMD AIR COIL INDUCTOR Allied Components International |
4,410 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±15% | - | - | - | Unshielded | 15mOhm Max | 100 nH | - | - | Surface Mount | - | 0.465" L x 0.190" W (11.80mm x 4.83mm) | - | -40°C ~ 125°C | 200 MHz | 0.140" (3.55mm) |
|
SMAC25-33J-RC33NH 5% SMD AIR CORE INDUCTOR Allied Components International |
3,594 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±5% | 3 A | - | - | Unshielded | 4.8mOhm Max | 33 nH | 100 @ 150MHz | 2.5GHz | Surface Mount | - | 0.190" L x 0.150" W (4.83mm x 3.81mm) | - | -40°C ~ 125°C | 150 MHz | 0.165" (4.20mm) |
|
|
SMAC25-27G-RC27NH 2% SMD AIR CORE INDUCTOR Allied Components International |
2,741 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±2% | 3.5 A | - | - | Unshielded | 4mOhm Max | 27 nH | 100 @ 150MHz | 2.7GHz | Surface Mount | - | 0.190" L x 0.150" W (4.83mm x 3.81mm) | - | -40°C ~ 125°C | 150 MHz | 0.165" (4.20mm) |
