Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

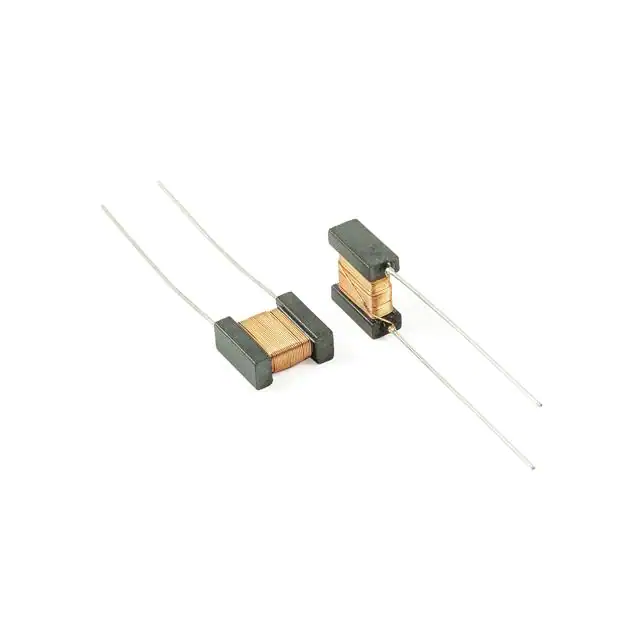

RFC20-1R0K-RC1.0UH 10% RADIAL FLAT COIL Allied Components International |
4,954 |
|
Datasheet |
- | Radial | Box | Active | Wirewound | - | ±10% | 7 A | - | Radial | Unshielded | 15mOhm Max | 1 µH | 37 @ 7.9MHz | - | Through Hole | - | 0.400" L x 0.125" W (10.16mm x 3.18mm) | - | -20°C ~ 100°C | 7.9 MHz | 0.400" (10.16mm) |
|
|
RFC20-5R0K-RC5.0UH 10% RADIAL FLAT COIL Allied Components International |
2,119 |
|
Datasheet |
- | Radial | Box | Active | Wirewound | - | ±10% | 2.9 A | - | Radial | Unshielded | 80mOhm Max | 5 µH | 40 @ 7.9MHz | - | Through Hole | - | 0.400" L x 0.125" W (10.16mm x 3.18mm) | - | -20°C ~ 100°C | 7.9 MHz | 0.400" (10.16mm) |
|
|
RFC20-8R2K-RC8.2UH 10% RADIAL FLAT COIL Allied Components International |
2,735 |
|
Datasheet |
- | Radial | Box | Active | Wirewound | - | ±10% | 2.2 A | - | Radial | Unshielded | 116mOhm Max | 8.2 µH | 32 @ 7.9MHz | - | Through Hole | - | 0.400" L x 0.125" W (10.16mm x 3.18mm) | - | -20°C ~ 100°C | 7.9 MHz | 0.400" (10.16mm) |
|
|
RFC20-751K-RC750UH 10% RADIAL FLAT COIL Allied Components International |
2,317 |
|
Datasheet |
- | Radial | Box | Active | Wirewound | - | ±10% | 280 mA | - | Radial | Unshielded | 6.2Ohm Max | 750 µH | 30 @ 790kHz | - | Through Hole | - | 0.400" L x 0.125" W (10.16mm x 3.18mm) | - | -20°C ~ 100°C | 790 kHz | 0.400" (10.16mm) |
|
|
RFC20-820K-RC82UH 10% RADIAL FLAT COIL Allied Components International |
4,381 |
|
Datasheet |
- | Radial | Box | Active | Wirewound | - | ±10% | 860 mA | - | Radial | Unshielded | 1.45Ohm Max | 82 µH | 50 @ 2.5MHz | - | Through Hole | - | 0.400" L x 0.125" W (10.16mm x 3.18mm) | - | -20°C ~ 100°C | 2.5 MHz | 0.400" (10.16mm) |
|
|
RFC20-472K-RC4700UH10% RFC20 RADIAL FLT COIL Allied Components International |
4,380 |
|
Datasheet |
- | Radial | Tray | Active | Wirewound | - | ±10% | 110 mA | - | Radial | Unshielded | 28.9Ohm Max | 4.7 mH | 50 @ 250kHz | - | Through Hole | - | 0.400" L x 0.150" W (10.16mm x 3.81mm) | - | -20°C ~ 100°C | 250 kHz | 0.400" (10.16mm) |
|

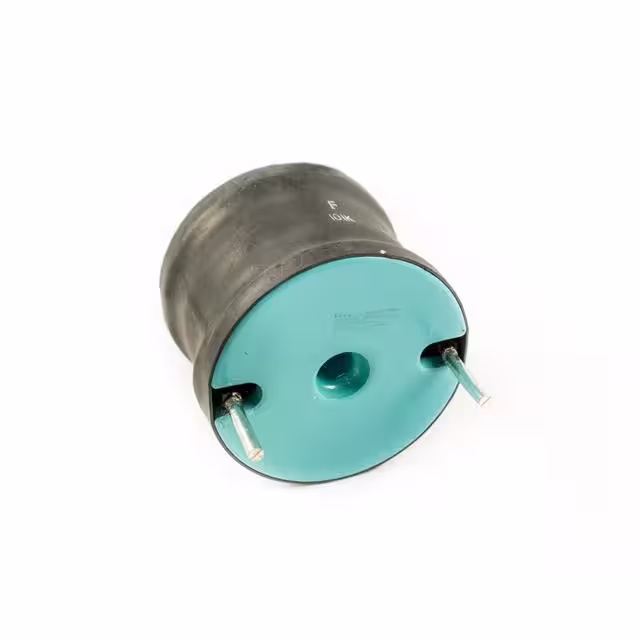

RDC60-393K-RC39000UH 10% RADIAL DRUM CORE Allied Components International |
3,691 |
|
Datasheet |
RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | - | ±10% | 1.4 A | 1.4A | Radial | Unshielded | 5.56Ohm Max | 39 mH | - | - | Through Hole | - | 2.000" Dia (50.80mm) | - | -55°C ~ 125°C | 1 kHz | 1.500" (38.10mm) |
|

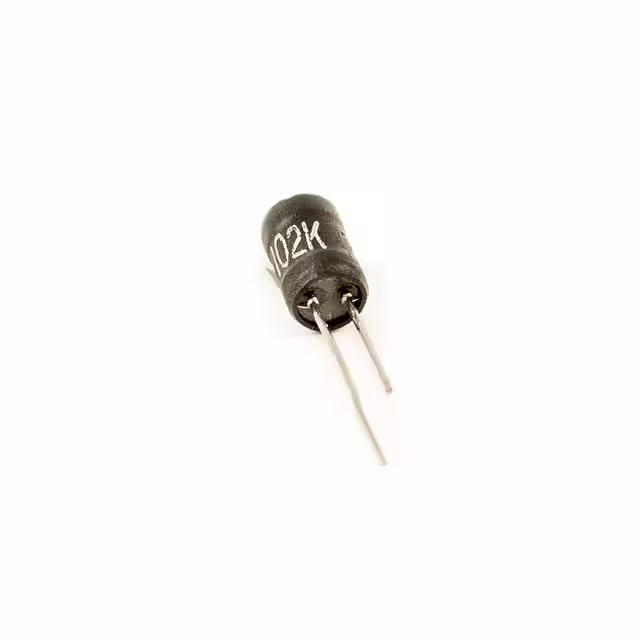

RB5480-1-102K-RC1000UH 10% RADIAL POWER CHOKE Allied Components International |
3,316 |
|
Datasheet |
- | Radial, Vertical Cylinder | Bag | Active | - | - | ±10% | 60 mA | 92mA | Radial | Unshielded | 5.5Ohm Max | 1 mH | - | - | Through Hole | - | 0.225" Dia (5.72mm) | - | -55°C ~ 125°C | 1 kHz | 0.340" (8.64mm) |
|
|
RDC60-223K-RC22000UH 10% RADIAL DRUM CORE Allied Components International |
3,505 |
|
Datasheet |
RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | - | ±10% | 2 A | 1.8A | Radial | Unshielded | 2.74Ohm Max | 22 mH | - | - | Through Hole | - | 2.000" Dia (50.80mm) | - | -55°C ~ 125°C | 1 kHz | 1.500" (38.10mm) |
|

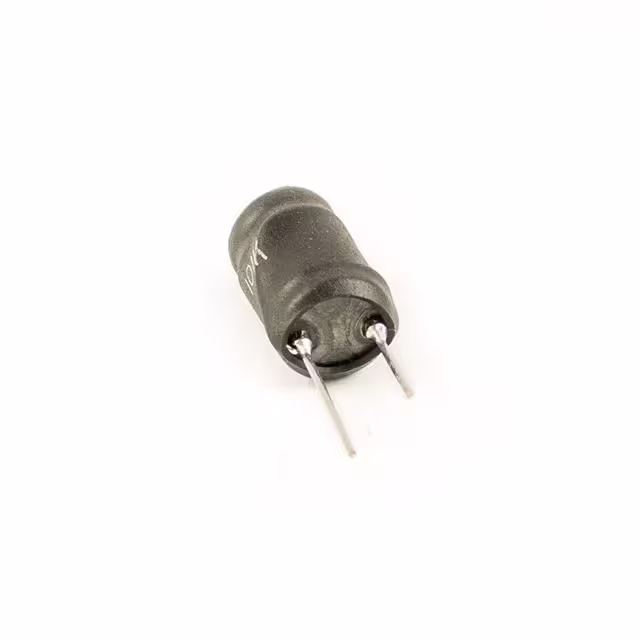

RB5480-4-271K-RC270UH 10% RADIAL POWER CHOKE Allied Components International |
2,576 |
|
Datasheet |
- | Radial, Vertical Cylinder | Bag | Active | - | - | ±10% | 1.3 A | 1.75A | Radial | Unshielded | 270mOhm Max | 270 µH | - | - | Through Hole | - | 0.450" Dia (11.43mm) | - | -55°C ~ 125°C | 1 kHz | 0.760" (19.30mm) |
