Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LS03-2R7J-RC2.7uH +/-5% Ferrite Core Chip Allied Components International |
2,038 |
|
Datasheet |
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±5% | - | 480mA | 0603 | Unshielded | 1.5Ohm Max | 2.7 µH | 17 @ 7.9MHz | 105MHz | Surface Mount | - | 0.071" L x 0.049" W (1.80mm x 1.25mm) | - | -40°C ~ 125°C | 7.9 MHz | 0.040" (1.02mm) |
|
|
LS03-47NJ-RC.047uH +/-5% Ferrite Core Chip Allied Components International |
3,119 |
|
Datasheet |
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±5% | - | 1.5A | 0603 | Unshielded | 75mOhm Max | 47 nH | 17 @ 7.9MHz | 1.7GHz | Surface Mount | - | 0.071" L x 0.049" W (1.80mm x 1.25mm) | - | -40°C ~ 125°C | 7.9 MHz | 0.040" (1.02mm) |
|

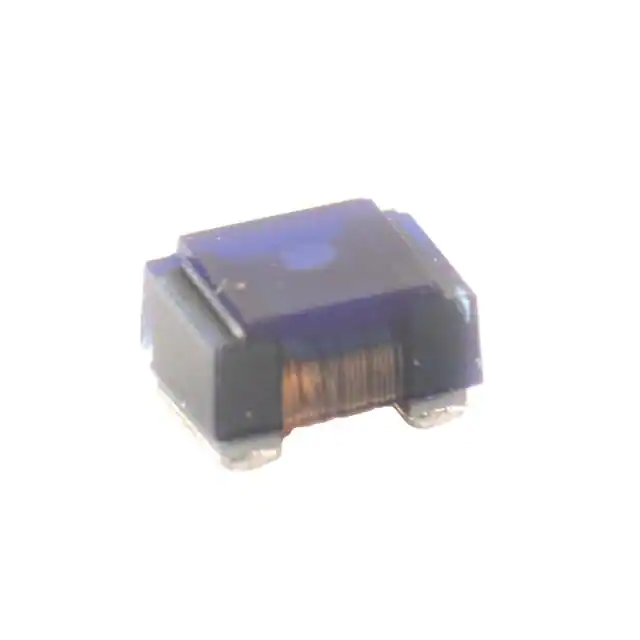

LS05-150J-RC15uH +/-5% Ferrite Core Chip Allied Components International |
4,481 |
|
Datasheet |
LS05 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±5% | - | 350mA | 0805 | Unshielded | 3.55Ohm Max | 15 µH | 16 @ 2.5MHz | 35MHz | Surface Mount | - | 0.094" L x 0.068" W (2.40mm x 1.72mm) | - | -25°C ~ 85°C | 2.5 MHz | 0.060" (1.52mm) |
|
|
LS05-3R9J-RC3.9uH +/-5% Ferrite Core Chip Allied Components International |
2,047 |
|
Datasheet |
LS05 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±5% | - | 600mA | 0805 | Unshielded | 1.5Ohm Max | 3.9 µH | 23 @ 7.9MHz | 90MHz | Surface Mount | - | 0.094" L x 0.068" W (2.40mm x 1.72mm) | - | -25°C ~ 85°C | 7.9 MHz | 0.060" (1.52mm) |
|
|
LS05-1R0J-RC1.0uH +/-5% Ferrite Core Chip Allied Components International |
3,793 |
|
Datasheet |
LS05 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±5% | - | 700mA | 0805 | Unshielded | 690mOhm Max | 1 µH | 20 @ 7.9MHz | 400MHz | Surface Mount | - | 0.094" L x 0.068" W (2.40mm x 1.72mm) | - | -25°C ~ 85°C | 7.9 MHz | 0.060" (1.52mm) |
|
|
LS05-5R6J-RC5.6uH +/-5% Ferrite Core Chip Allied Components International |
4,825 |
|
Datasheet |
LS05 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±5% | - | 500mA | 0805 | Unshielded | 1.7Ohm Max | 5.6 µH | 20 @ 7.9MHz | 65MHz | Surface Mount | - | 0.094" L x 0.068" W (2.40mm x 1.72mm) | - | -25°C ~ 85°C | 7.9 MHz | 0.060" (1.52mm) |
|

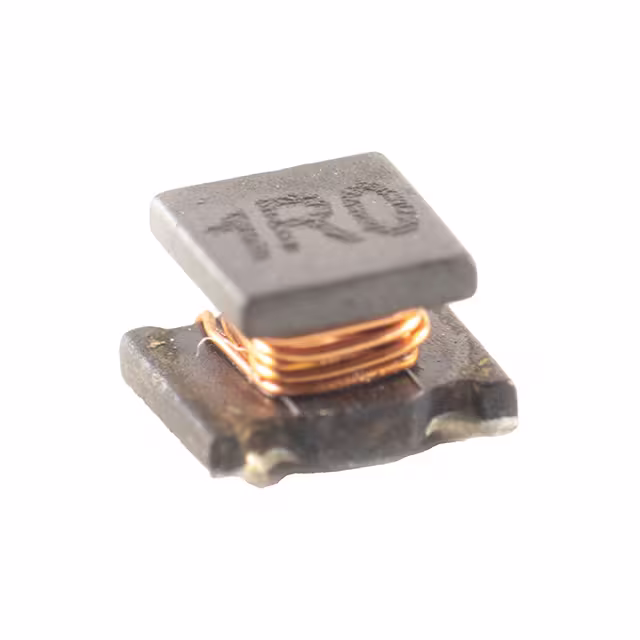

LRC20-1R0M-RC1.0uH +/-20% Low Resistance Chip Allied Components International |
4,743 |
|
Datasheet |
LRC20 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1 A | - | 1210 | Unshielded | 120mOhm Max | 1 µH | - | 96MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.49mm) | - | -25°C ~ 125°C | 1 kHz | 0.087" (2.21mm) |
|
LRC20L-2R2M-RC2.2uH +/-20% Lo-Res Chip Allied Components International |
4,242 |
|
Datasheet |
LRC20L | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 790 mA | - | 1210 | Unshielded | 97mOhm Max | 2.2 µH | - | 64MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.49mm) | - | -25°C ~ 125°C | 1 MHz | 0.087" (2.21mm) |
|
LRC30-100K-RC10uH +/-10% Low Resistance Chip Allied Components International |
4,979 |
|
Datasheet |
LRC30 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 650 mA | - | 1812 | Unshielded | 240mOhm Max | 10 µH | - | 23MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -40°C ~ 125°C | 1 kHz | 0.110" (2.79mm) |
|

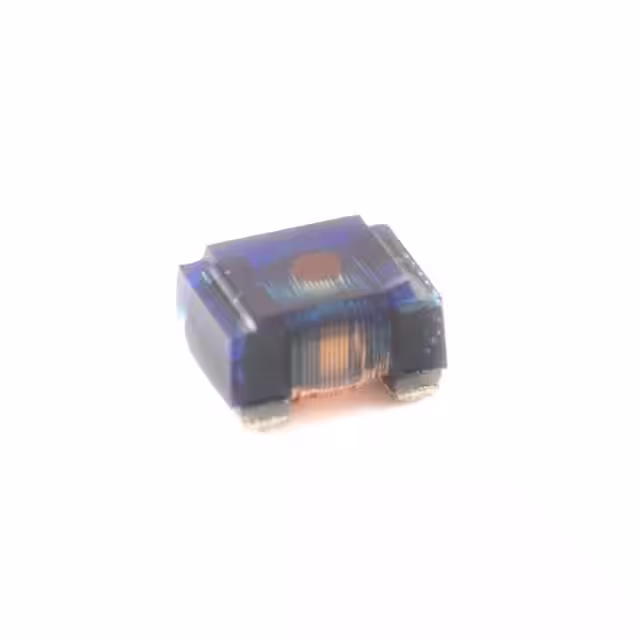

LD05-101M-RC100uH +/-20% 0805 Ferrite Core Allied Components International |
4,169 |
|
Datasheet |
LD05 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | - | 70mA | 0805 | Unshielded | 9Ohm Max | 100 µH | 18 @ 7.96MHz | 9MHz | Surface Mount | - | 0.094" L x 0.068" W (2.40mm x 1.72mm) | - | -25°C ~ 85°C | 7.96 MHz | 0.060" (1.52mm) |
