Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDC20-222K-RC2200uH +/-10% Radial Drum Core Allied Components International |
3,090 |
|
Datasheet |
RDC20 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | ±10% | 800 mA | 2A | Radial, Vertical Cylinder | Unshielded | 1.54Ohm Max | 2.2 mH | - | - | Through Hole | - | 0.825" Dia (20.96mm) | - | -40°C ~ 85°C | 1 kHz | 0.840" (21.34mm) |
|
|
RDC20-121K-RC120uH +/- 10% Radial Drum Core Allied Components International |
2,132 |
|
Datasheet |
RDC20 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | ±10% | 4 A | 9.4A | Radial, Vertical Cylinder | Unshielded | 90mOhm Max | 120 µH | - | - | Through Hole | - | 0.825" Dia (20.96mm) | - | -40°C ~ 85°C | 1 kHz | 0.840" (21.34mm) |
|

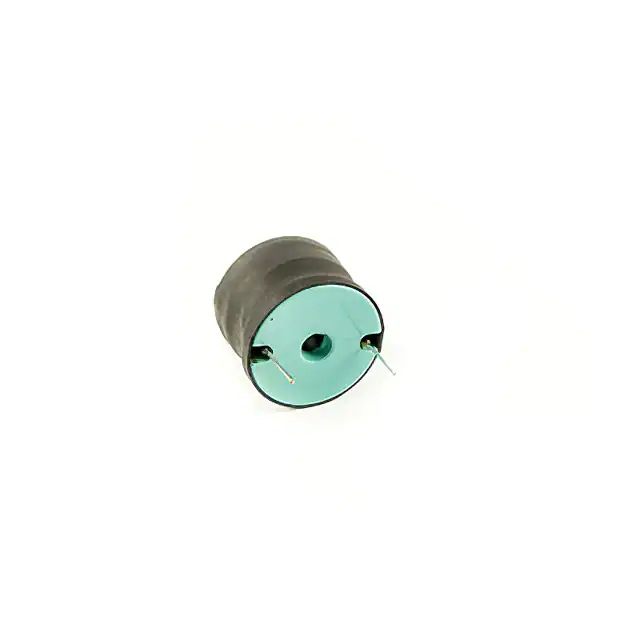

RDC30-390K-RC39uH +/-10% Radial Drum Core Allied Components International |
2,391 |
|
Datasheet |
RDC30 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | ±10% | 11.4 A | 19.1A | Radial | Unshielded | 22mOhm Max | 39 µH | - | - | Through Hole | - | 1.100" Dia (27.94mm) | - | -55°C ~ 125°C | 1 kHz | 0.840" (21.34mm) |
|
|
RDC30-502K-RC5000uH +/-10% Radial Drum Core Allied Components International |
3,559 |
|
Datasheet |
RDC30 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | ±10% | - | - | Radial | Unshielded | - | 5 mH | - | - | Through Hole | - | 1.100" Dia (27.94mm) | - | -55°C ~ 125°C | 1 kHz | 0.840" (21.34mm) |
|
|
RDC30-4R7M-RC4.7uH +/-10% Radial Drum Core Allied Components International |
2,621 |
|
Datasheet |
RDC30 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | ±20% | 21 A | 54A | Radial | Unshielded | 3mOhm Max | 4.7 µH | - | - | Through Hole | - | 1.100" Dia (27.94mm) | - | -55°C ~ 125°C | 1 kHz | 0.840" (21.34mm) |
|

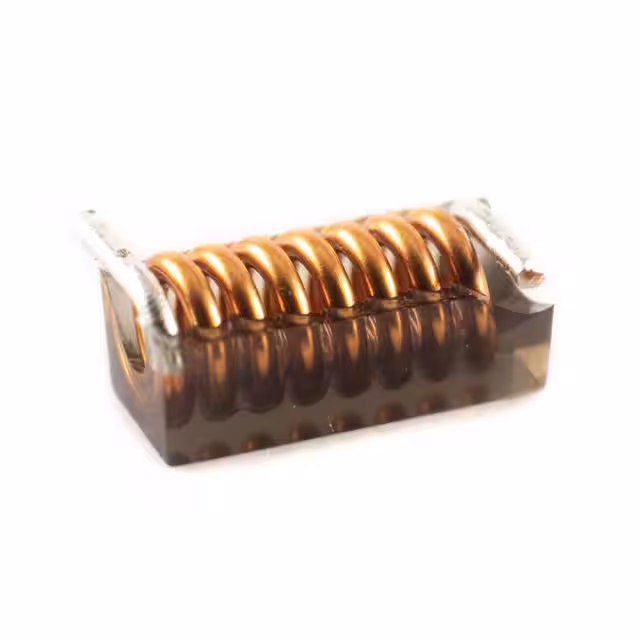

SMAC30-10G-RC43nH +/-2% SMD Air Core Induct. Allied Components International |
3,429 |
|
Datasheet |
SMAC30 | Nonstandard | Tape & Reel (TR) | Active | - | Air | ±2% | 4 A | - | - | Unshielded | 7.9mOhm Max | 43 nH | 106 @ 150MHz | 1.2GHz | Surface Mount | - | 0.270" L x 0.120" W (6.86mm x 3.05mm) | - | -40°C ~ 125°C | 150 MHz | 0.125" (3.18mm) |
|
SMAC25-47G-RC47nH +/-2% SMD Air Core Induct. Allied Components International |
4,281 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±2% | 3 A | - | - | Unshielded | 5.6mOhm Max | 47 nH | 100 @ 150MHz | 2.1GHz | Surface Mount | - | 0.190" L x 0.150" W (4.83mm x 3.81mm) | - | -40°C ~ 125°C | 150 MHz | 0.165" (4.20mm) |
|
CC10-800NG-RC80nH +/-2% Ceramic Core Chip Allied Components International |
3,118 |
|
Datasheet |
CC10 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±2% | - | - | 1008 | Unshielded | - | 800 nH | - | - | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | - | 0.087" (2.20mm) |
|
CC03-100NJ-RC100nH +/-5% Ceramic Core Chip Allied Components International |
3,746 |
|
Datasheet |
CC03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±5% | - | 400mA | 0603 | Unshielded | 780mOhm Max | 100 nH | 34 @ 150MHz | 1.4GHz | Surface Mount | - | 0.071" L x 0.047" W (1.80mm x 1.20mm) | - | -40°C ~ 125°C | 150 MHz | 0.047" (1.20mm) |
|
|
CC03-220NJ-RC220nH +/-5% Ceramic Core Chip Allied Components International |
4,378 |
|
Datasheet |
CC03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±5% | - | 200mA | 0603 | Unshielded | 2.02Ohm Max | 220 nH | 25 @ 100MHz | 900MHz | Surface Mount | - | 0.071" L x 0.047" W (1.80mm x 1.20mm) | - | -40°C ~ 125°C | 100 MHz | 0.047" (1.20mm) |
