Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TFM252012ALMAR15MTAAFIXED IND 150NH 7.3A 11 MOHM SMD |
60,459 |
|
Datasheet |
TFM-ALMA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 150 nH | ±20% | 7.3 A | 9A | Shielded | 11mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
NR6045T470MFIXED IND 47UH 1.1A 286 MOHM SMD |
55,150 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.1 A | 1.3A | Shielded | 286mOhm Max | - | 5MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LQH3NPN6R8MMELFIXED IND 6.8UH 900MA 168MOHM SM |
13,529 |
|
Datasheet |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 900 mA | 1.04A | Shielded | 168mOhm Max | - | 30MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
LQH3NPN470MMELFIXED IND 47UH 380MA 984MOHM SMD |
9,012 |
|
Datasheet |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 380 mA | 380mA | Shielded | 984mOhm Max | - | 5MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
NRS6028T4R7MMGKVFIXED IND 4.7UH 3A 40.3 MOHM SMD |
8,290 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3 A | 2.7A | Shielded | 40.3mOhm Max | - | 39MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
LQH3NPN101MMELFIXED IND 100UH 270MA 1.908 OHM |
3,750 |
|
Datasheet |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 270 mA | 260mA | Shielded | 1.908Ohm Max | - | 3MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|

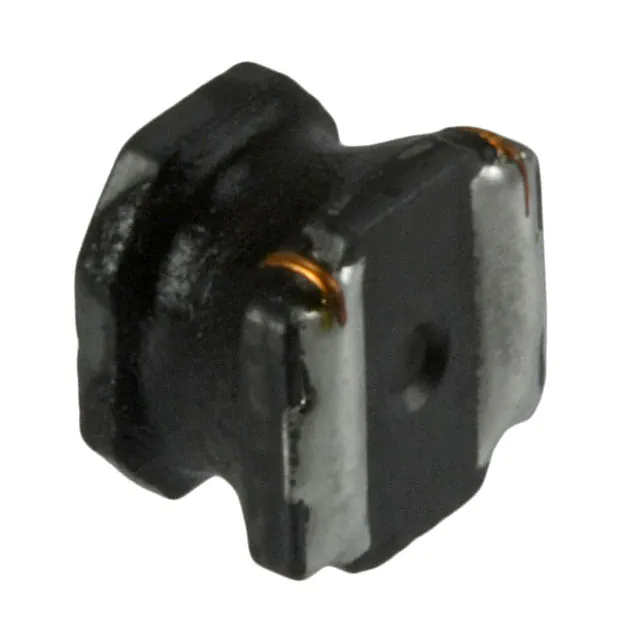

NR5040T4R7NFIXED IND 4.7UH 3.1A 37.7MOHM SM |
75,329 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 3.1 A | 3.3A | Shielded | 37.7mOhm Max | - | 28MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.161" (4.10mm) |
-Height-1.00mm.jpg)
|

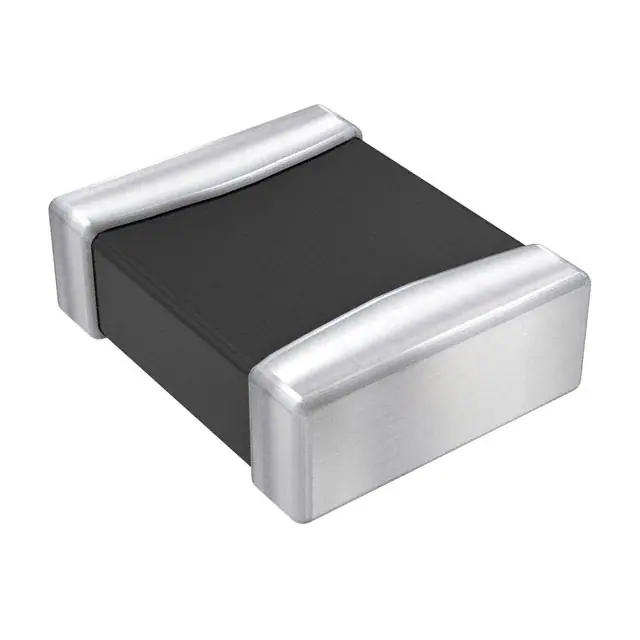

1276AS-H-100M=P2FIXED IND 10UH 800MA 588MOHM SMD |
54,131 |
|
Datasheet |
DFE322510C | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 800 mA | 1A | Shielded | 588mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
|
|
NR5040T3R3NFIXED IND 3.3UH 3.3A 35.1MOHM SM |
51,344 |
|
- |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.3 A | 3.8A | Shielded | 35.1mOhm Max | - | 32MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.161" (4.10mm) |
|
|
NR5040T100MFIXED IND 10UH 2.1A 72.8MOHM SMD |
41,041 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.1 A | 2.3A | Shielded | 72.8mOhm Max | - | 18MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.161" (4.10mm) |
-DFE18SAN_G0.jpg)
|

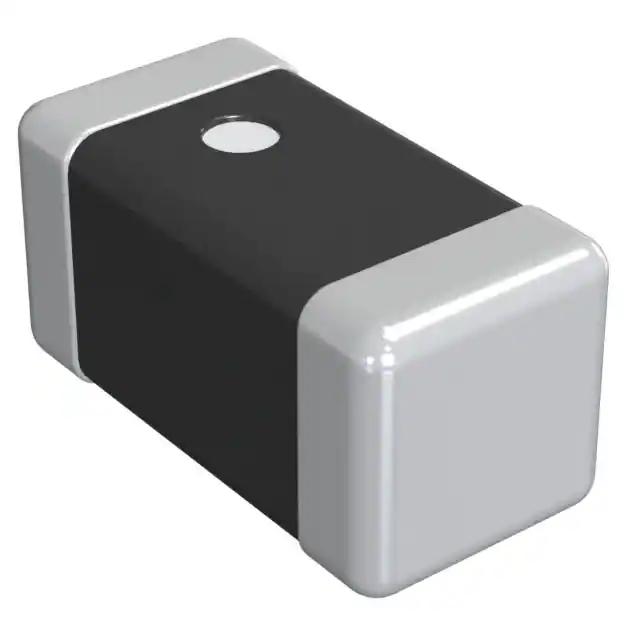

DFE18SANR47MG0LFIXED IND 470NH 2.6A 54 MOHM SMD |
34,728 |
|
Datasheet |
DFE18SAN | 0603 (1608 Metric) | Tape & Reel (TR) | Not For New Designs | - | Metal | 470 nH | ±20% | 2.6 A | 3.6A | Shielded | 54mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
VLS6045EX-330MFIXED IND 33UH 1.5A 228 MOHM SMD |
16,441 |
|
Datasheet |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.5 A | 1.9A | Shielded | 175mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
ASPI-4030S-150M-TFIXED IND 15UH 1.11A 190MOHM SMD |
9,893 |
|
Datasheet |
ASPI-4030S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 15 µH | ±20% | 1.11 A | 1.65A | Shielded | 190mOhm | - | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
VLS252010CX-1R0M-1FIXED IND 1UH 2.29A 65 MOHM SMD |
9,432 |
|
Datasheet |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 2.29 A | 2.25A | Shielded | 65mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LQH2HPN4R7MGRLFIXED IND 4.7UH 1A 360 MOHM SMD |
7,885 |
|
Datasheet |
LQH2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 1 A | 1.09A | Shielded | 360mOhm Max | - | 50MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
-DFE18SAN_E0.jpg)
|

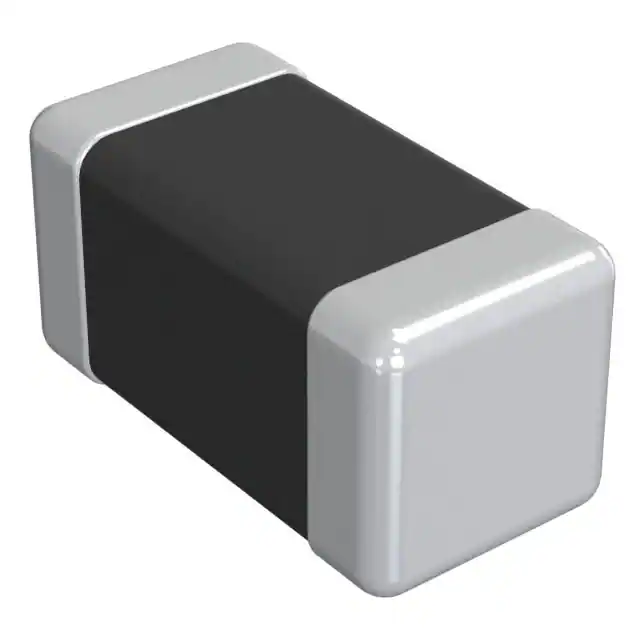

DFE18SAN1R0ME0LFIXED IND 1UH 1.6A 144 MOHM SMD |
3,329 |
|
Datasheet |
DFE18SAN | 0603 (1608 Metric) | Tape & Reel (TR) | Not For New Designs | - | Metal | 1 µH | ±20% | 1.6 A | 2A | Shielded | 144mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
-Height-1.20mm.jpg)
|

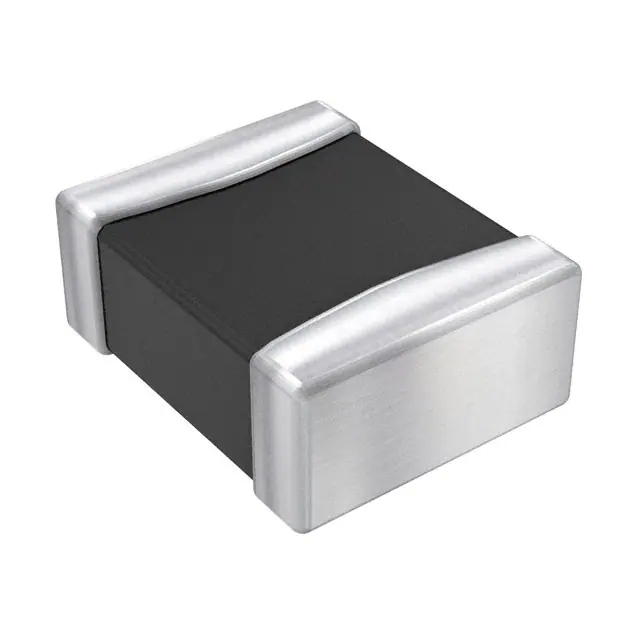

1277AS-H-4R7M=P2FIXED IND 4.7UH 1.4A 180MOHM SMD |
26,034 |
|
Datasheet |
DFE322512C | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 1.4 A | 1.8A | Shielded | 180mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
1277AS-H-1R0M=P2FIXED IND 1UH 3.1A 45 MOHM SMD |
16,242 |
|
Datasheet |
DFE322512C | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 3.1 A | 3.7A | Shielded | 45mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
NR6020T2R2NFIXED IND 2.2UH 2.7A 40.8MOHM SM |
102,465 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 2.7 A | 3.2A | Shielded | 40.8mOhm Max | - | 73MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
VLS6045EX-470MFIXED IND 47UH 1.3A 299 MOHM SMD |
64,362 |
|
Datasheet |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.3 A | 1.8A | Shielded | 230mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
