Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBCP-80HY6R8HFIXED IND 6.8UH 3.3A 50 MOHM TH KEMET |
3,351 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.3 A | 6.5A | - | Unshielded | 50mOhm Max | 6.8 µH | - | - | Through Hole | - | 0.374" Dia (9.50mm) | - | -20°C ~ 105°C | 10 kHz | 0.433" (11.00mm) |
|
|
SBCP-80HY4R7HFIXED IND 4.7UH 3.3A 40 MOHM TH KEMET |
4,807 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.3 A | 7.6A | - | Unshielded | 40mOhm Max | 4.7 µH | - | - | Through Hole | - | 0.374" Dia (9.50mm) | - | -20°C ~ 105°C | 10 kHz | 0.433" (11.00mm) |
|
|
SBCP-80HY471HFIXED IND 470UH 650MA 950MOHM TH KEMET |
2,980 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±10% | 650 mA | 710mA | - | Unshielded | 950mOhm Max | 470 µH | - | - | Through Hole | - | 0.374" Dia (9.50mm) | - | -20°C ~ 105°C | 10 kHz | 0.433" (11.00mm) |
|
|
SBCP-80HY3R3HFIXED IND 3.3UH 3.6A 40 MOHM TH KEMET |
4,484 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±30% | 3.6 A | 9.2A | - | Unshielded | 40mOhm Max | 3.3 µH | - | - | Through Hole | - | 0.374" Dia (9.50mm) | - | -20°C ~ 105°C | 10 kHz | 0.433" (11.00mm) |
|
|
SBCP-80HY330HFIXED IND 33UH 2.1A 90 MOHM TH KEMET |
2,474 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.1 A | 2.7A | - | Unshielded | 90mOhm Max | 33 µH | - | - | Through Hole | - | 0.374" Dia (9.50mm) | - | -20°C ~ 105°C | 10 kHz | 0.433" (11.00mm) |
|
|
SBCP-80HY220HFIXED IND 22UH 2.4A 80 MOHM TH KEMET |
2,923 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.4 A | 3.4A | - | Unshielded | 80mOhm Max | 22 µH | - | - | Through Hole | - | 0.374" Dia (9.50mm) | - | -20°C ~ 105°C | 10 kHz | 0.433" (11.00mm) |
|
|
SBCP-80HY1R5HFIXED IND 1.5UH 4.5A 20 MOHM TH KEMET |
2,190 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±30% | 4.5 A | 13.5A | - | Unshielded | 20mOhm Max | 1.5 µH | - | - | Through Hole | - | 0.374" Dia (9.50mm) | - | -20°C ~ 105°C | 10 kHz | 0.433" (11.00mm) |
|
|
SBCP-80HY150HFIXED IND 15UH 2.5A 80 MOHM TH KEMET |
3,185 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.5 A | 4A | - | Unshielded | 80mOhm Max | 15 µH | - | - | Through Hole | - | 0.374" Dia (9.50mm) | - | -20°C ~ 105°C | 10 kHz | 0.433" (11.00mm) |
|
|
SBCP-80HY122HFIXED IND 1.2MH 320MA 2.6 OHM TH KEMET |
4,353 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±10% | 320 mA | 450mA | - | Unshielded | 2.6Ohm Max | 1.2 mH | - | - | Through Hole | - | 0.374" Dia (9.50mm) | - | -20°C ~ 105°C | 10 kHz | 0.433" (11.00mm) |
|

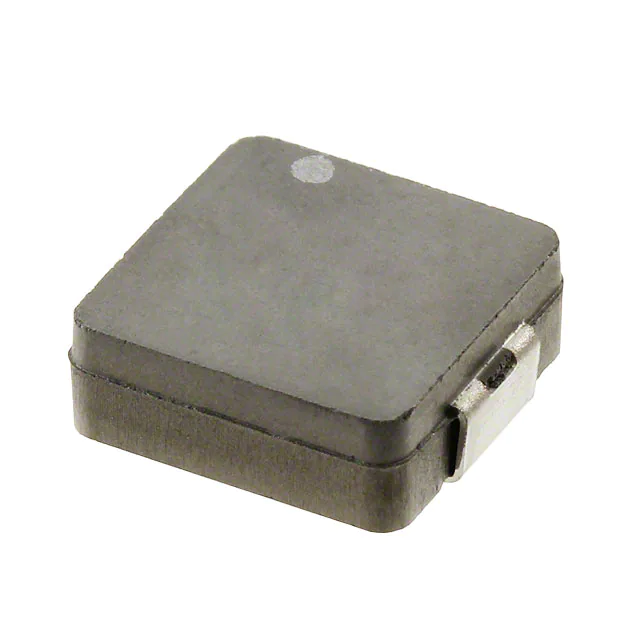

MPLC1040L4R7FIXED IND 4.7UH 8A 19 MOHM SMD KEMET |
4,069 |
|
Datasheet |
MPLC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 8 A | 8A | - | Shielded | 19mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | - | -20°C ~ 120°C | 100 kHz | 0.157" (4.00mm) |
