Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L04021R8BHLTRFIXED IND 1.8NH 400MA 200MOHM SM KYOCERA AVX |
3,154 |
|
Datasheet |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±0.1nH | 400 mA | - | 0402 (1005 Metric) | Unshielded | 200mOhm Max | 1.8 nH | 18 @ 450MHz | 16GHz | Surface Mount | - | 0.039" L x 0.023" W (1.00mm x 0.58mm) | - | - | 450 MHz | 0.018" (0.45mm) |
|
|
L04022R2BHLTRFIXED IND 2.2NH 400MA 200MOHM SM KYOCERA AVX |
2,535 |
|
Datasheet |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±0.1nH | 400 mA | - | 0402 (1005 Metric) | Unshielded | 200mOhm Max | 2.2 nH | 15 @ 450MHz | 15GHz | Surface Mount | - | 0.039" L x 0.023" W (1.00mm x 0.58mm) | - | - | 450 MHz | 0.018" (0.45mm) |
|
|
L04021R2BHLTRFIXED IND 1.2NH 400MA 200MOHM SM KYOCERA AVX |
3,272 |
|
Datasheet |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±0.1nH | 400 mA | - | 0402 (1005 Metric) | Unshielded | 200mOhm Max | 1.2 nH | 20 @ 450MHz | 20GHz | Surface Mount | - | 0.039" L x 0.023" W (1.00mm x 0.58mm) | - | - | 450 MHz | 0.018" (0.45mm) |
|
L08052R2CESTR\500ACCU-L KYOCERA AVX |
4,053 |
|
Datasheet |
Accu-L® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±0.2nH | 2 A | - | 0805 | Unshielded | 70mOhm Max | 2.2 nH | 20 @ 450MHz | 10GHz | Surface Mount | - | 0.083" L x 0.059" W (2.11mm x 1.50mm) | - | -55°C ~ 125°C | 450 MHz | 0.041" (1.04mm) |
|
|
L0402R82BHLTRFIXED IND 0.82NH 500MA 60MOHM SM KYOCERA AVX |
4,168 |
|
Datasheet |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±0.1nH | 500 mA | - | 0402 (1005 Metric) | Unshielded | 60mOhm Max | 0.82 nH | 25 @ 450MHz | 20GHz | Surface Mount | - | 0.039" L x 0.023" W (1.00mm x 0.58mm) | - | - | 450 MHz | 0.018" (0.45mm) |
|

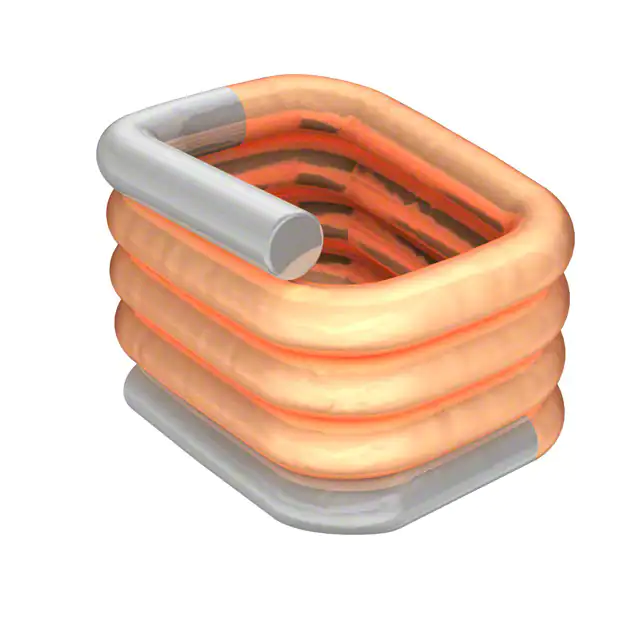

AS0608N9JTRFIXED IND 8.9NH 2.9A 7 MOHM SMD KYOCERA AVX |
4,969 |
|
Datasheet |
AS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±5% | 2.9 A | - | 0608 (1618 Metric) | Unshielded | 7mOhm Max | 8.9 nH | 90 @ 400MHz | 4.3GHz | Surface Mount | - | 0.064" L x 0.072" W (1.63mm x 1.83mm) | - | -40°C ~ 125°C | 400 MHz | 0.059" (1.51mm) |
|
|
AS0706N9JTRFIXED IND 6.9NH 2.7A 6 MOHM SMD KYOCERA AVX |
2,657 |
|
Datasheet |
AS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±5% | 2.7 A | - | - | Unshielded | 6mOhm Max | 6.9 nH | 100 @ 400MHz | 4.6GHz | Surface Mount | - | 0.072" L x 0.051" W (1.83mm x 1.30mm) | - | -40°C ~ 125°C | 400 MHz | 0.070" (1.78mm) |
|
|
L08053R9CEWTR\500ACCU-L KYOCERA AVX |
2,271 |
|
Datasheet |
Accu-L® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | - | ±0.2nH | 1.5 A | - | 0805 | Unshielded | 200mOhm Max | 3.9 nH | 27 @ 450MHz | 10GHz | Surface Mount | - | 0.083" L x 0.059" W (2.11mm x 1.50mm) | - | -55°C ~ 125°C | 450 MHz | 0.041" (1.04mm) |
|
L08054R7DEWTR\3FIXED IND 4.7NH 750MA 100MOHM SM KYOCERA AVX |
3,046 |
|
Datasheet |
Accu-L® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±0.5nH | 750 mA | - | 0805 (2012 Metric) | Unshielded | 100mOhm Max | 4.7 nH | 43 @ 450MHz | 5.5GHz | Surface Mount | - | 0.083" L x 0.059" W (2.11mm x 1.50mm) | - | -55°C ~ 125°C | 450 MHz | 0.041" (1.04mm) |
|
|
L0805220JEWTR\3FIXED IND 22NH 500MA 400MOHM SMD KYOCERA AVX |
4,440 |
|
Datasheet |
Accu-L® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±5% | 500 mA | - | 0805 (2012 Metric) | Unshielded | 400mOhm Max | 22 nH | 36 @ 450MHz | 1.4GHz | Surface Mount | - | 0.083" L x 0.059" W (2.11mm x 1.50mm) | - | -55°C ~ 125°C | 450 MHz | 0.041" (1.04mm) |
