Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

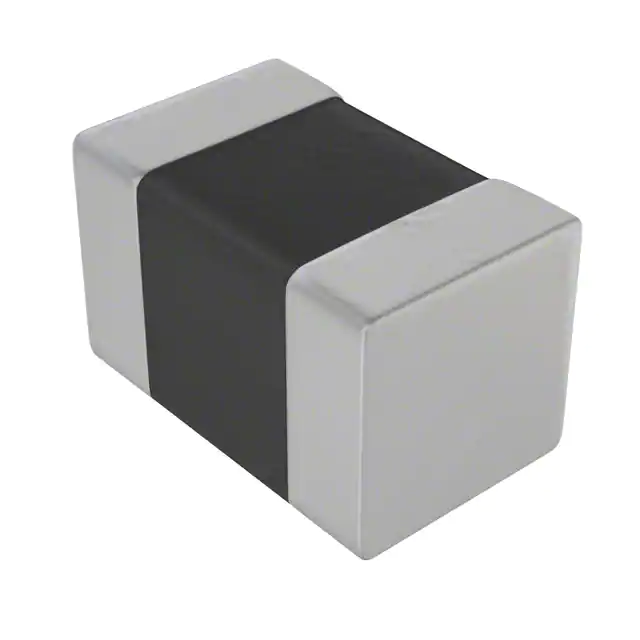

L08055R6DEWTR\500FIXED IND 5.6NH 750MA 100MOHM SM KYOCERA AVX |
3,839 |
|
Datasheet |
Accu-L® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±0.5nH | 750 mA | - | 0805 (2012 Metric) | Unshielded | 100mOhm Max | 5.6 nH | 50 @ 450MHz | 4.6GHz | Surface Mount | - | 0.083" L x 0.059" W (2.11mm x 1.50mm) | - | -55°C ~ 125°C | 450 MHz | 0.041" (1.04mm) |
|
|
L08056R8DEWTR\500FIXED IND 6.8NH 750MA 110MOHM SM KYOCERA AVX |
2,923 |
|
Datasheet |
Accu-L® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±0.5nH | 750 mA | - | 0805 (2012 Metric) | Unshielded | 110mOhm Max | 6.8 nH | 43 @ 450MHz | 4.5GHz | Surface Mount | - | 0.083" L x 0.059" W (2.11mm x 1.50mm) | - | -55°C ~ 125°C | 450 MHz | 0.041" (1.04mm) |
|
|
L08058R2DEWTR\500FIXED IND 8.2NH 750MA 120MOHM SM KYOCERA AVX |
4,100 |
|
Datasheet |
Accu-L® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±0.5nH | 750 mA | - | 0805 (2012 Metric) | Unshielded | 120mOhm Max | 8.2 nH | 43 @ 450MHz | 3.5GHz | Surface Mount | - | 0.083" L x 0.059" W (2.11mm x 1.50mm) | - | -55°C ~ 125°C | 450 MHz | 0.041" (1.04mm) |
|

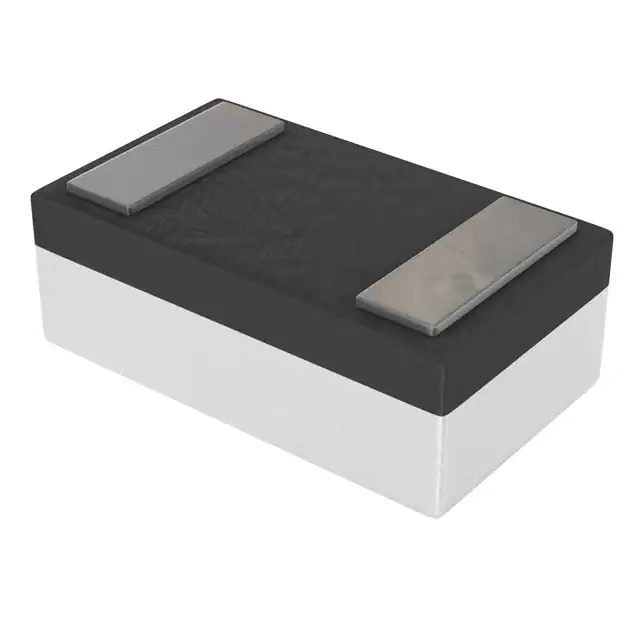

L04022R7BHLTRFIXED IND 2.7NH 250MA 250MOHM SM KYOCERA AVX |
2,001 |
|
Datasheet |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±0.1nH | 250 mA | - | 0402 (1005 Metric) | Unshielded | 250mOhm Max | 2.7 nH | 15 @ 450MHz | 9.5GHz | Surface Mount | - | 0.039" L x 0.023" W (1.00mm x 0.58mm) | - | - | 450 MHz | 0.018" (0.45mm) |
|
|
L04023R3BHLTRFIXED IND 3.3NH 250MA 400MOHM SM KYOCERA AVX |
4,986 |
|
Datasheet |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±0.1nH | 250 mA | - | 0402 (1005 Metric) | Unshielded | 400mOhm Max | 3.3 nH | 15 @ 450MHz | 8.5GHz | Surface Mount | - | 0.039" L x 0.023" W (1.00mm x 0.58mm) | - | - | 450 MHz | 0.018" (0.45mm) |
|
|
L04023R9BHLTRFIXED IND 3.9NH 250MA 450MOHM SM KYOCERA AVX |
4,925 |
|
Datasheet |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±0.1nH | 250 mA | - | 0402 (1005 Metric) | Unshielded | 450mOhm Max | 3.9 nH | 13 @ 450MHz | 8GHz | Surface Mount | - | 0.039" L x 0.023" W (1.00mm x 0.58mm) | - | - | 450 MHz | 0.018" (0.45mm) |
|
|
L04024R7BHLTRFIXED IND 4.7NH 250MA 450MOHM SM KYOCERA AVX |
4,665 |
|
Datasheet |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±0.1nH | 250 mA | - | 0402 (1005 Metric) | Unshielded | 450mOhm Max | 4.7 nH | 13 @ 450MHz | 7.5GHz | Surface Mount | - | 0.039" L x 0.023" W (1.00mm x 0.58mm) | - | - | 450 MHz | 0.018" (0.45mm) |
|
|
L04025R6BHLTRFIXED IND 5.6NH 200MA 650MOHM SM KYOCERA AVX |
3,550 |
|
Datasheet |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±0.1nH | 200 mA | - | 0402 (1005 Metric) | Unshielded | 650mOhm Max | 5.6 nH | 13 @ 450MHz | 7GHz | Surface Mount | - | 0.039" L x 0.023" W (1.00mm x 0.58mm) | - | - | 450 MHz | 0.018" (0.45mm) |
|
HLC024R7BTTRFIXED IND 4.7NH 405MA 480MOHM SM KYOCERA AVX |
4,302 |
|
Datasheet |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±0.1nH | 405 mA | - | 0402 (1005 Metric) | Unshielded | 480mOhm Max | 4.7 nH | 29 @ 450MHz | 9GHz | Surface Mount | - | 0.039" L x 0.023" W (1.00mm x 0.58mm) | - | -55°C ~ 125°C | 450 MHz | 0.018" (0.45mm) |
|
|
HLC025R6BTTRFIXED IND 5.6NH 375MA 500MOHM SM KYOCERA AVX |
2,891 |
|
Datasheet |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±0.1nH | 375 mA | - | 0402 (1005 Metric) | Unshielded | 500mOhm Max | 5.6 nH | 30 @ 450MHz | 8GHz | Surface Mount | - | 0.039" L x 0.023" W (1.00mm x 0.58mm) | - | -55°C ~ 125°C | 450 MHz | 0.018" (0.45mm) |
