Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L06031R5AHLTRFIXED IND 1.5NH 1A 60 MOHM SMD KYOCERA AVX |
2,809 |
|
Datasheet |
Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Non-Magnetic | ±0.05nH | 1 A | - | 0603 (1608 Metric) | Unshielded | 60mOhm Max | 1.5 nH | 26 @ 450MHz | 10GHz | Surface Mount | - | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | -55°C ~ 125°C | 450 MHz | 0.028" (0.71mm) |
|
|
L06031R8AHLTRFIXED IND 1.8NH 1A 70 MOHM SMD KYOCERA AVX |
4,863 |
|
Datasheet |
Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Non-Magnetic | ±0.05nH | 1 A | - | 0603 (1608 Metric) | Unshielded | 70mOhm Max | 1.8 nH | 20 @ 450MHz | 10GHz | Surface Mount | - | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | -55°C ~ 125°C | 450 MHz | 0.028" (0.71mm) |
|
|
L06032R2AHLTRFIXED IND 2.2NH 1A 80 MOHM SMD KYOCERA AVX |
4,887 |
|
Datasheet |
Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Non-Magnetic | ±0.05nH | 1 A | - | 0603 (1608 Metric) | Unshielded | 80mOhm Max | 2.2 nH | 20 @ 450MHz | 10GHz | Surface Mount | - | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | -55°C ~ 125°C | 450 MHz | 0.028" (0.71mm) |
|
|
L06032R7AHLTRFIXED IND 2.7NH 750MA 80MOHM SMD KYOCERA AVX |
4,844 |
|
Datasheet |
Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Non-Magnetic | ±0.05nH | 750 mA | - | 0603 (1608 Metric) | Unshielded | 80mOhm Max | 2.7 nH | 21 @ 450MHz | 9GHz | Surface Mount | - | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | -55°C ~ 125°C | 450 MHz | 0.028" (0.71mm) |
|

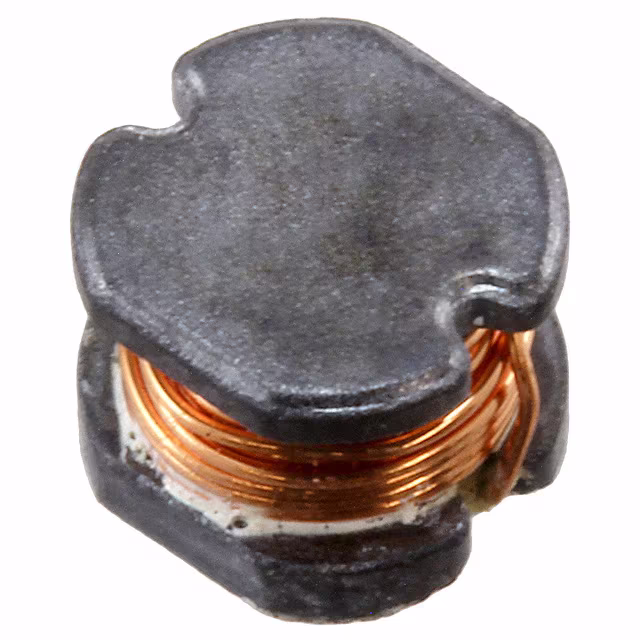

LMXN0605M330DTASFIXED IND 33UH 880MA 230MOHM SMD KYOCERA AVX |
3,448 |
|
Datasheet |
LMXN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 880 mA | - | - | Unshielded | 230mOhm Max | 33 µH | - | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.191" (4.85mm) |
|
|
LMXN0605M470DTASFIXED IND 47UH 720MA 370MOHM SMD KYOCERA AVX |
3,958 |
|
Datasheet |
LMXN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 720 mA | - | - | Unshielded | 370mOhm Max | 47 µH | - | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.191" (4.85mm) |
|
LMXN1310M4R7CTASFIXED IND 4.7UH 36 MOHM SMD KYOCERA AVX |
3,511 |
|
Datasheet |
LMXN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | - | 4.2A | - | Unshielded | 36mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.520" L x 0.390" W (13.20mm x 9.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.250" (6.35mm) |
|

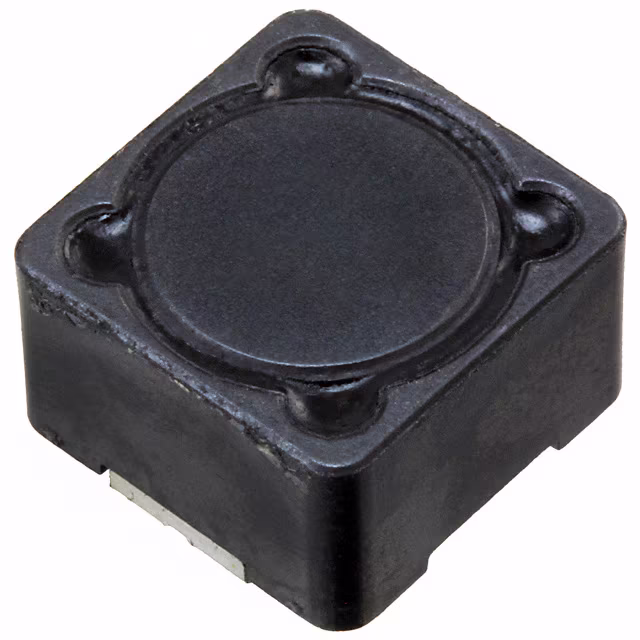

LMXS1212M330HTASFIXED IND 33UH 2.7A 97 MOHM SMD KYOCERA AVX |
3,827 |
|
Datasheet |
LMXS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.7 A | - | - | Shielded | 97mOhm Max | 33 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|

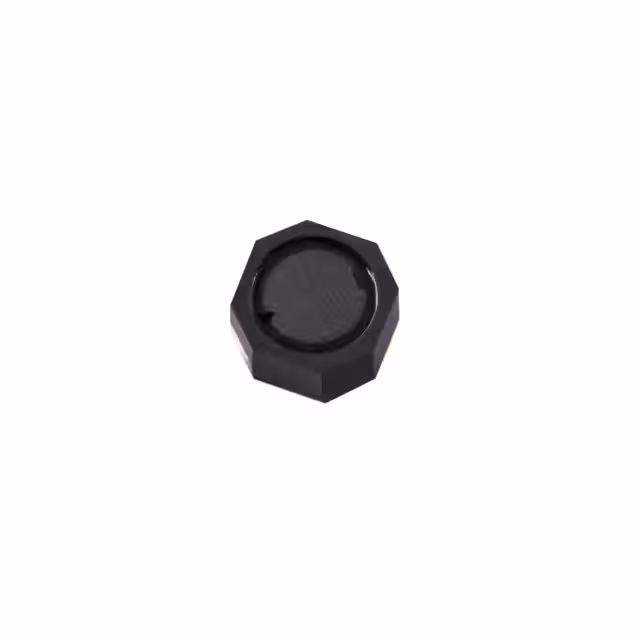

LMXS0606M471BTASFIXED IND 470UH 2.58 OHM SMD KYOCERA AVX |
3,629 |
|
- |
LMXS | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | ±20% | - | 200mA | - | Shielded | 2.58Ohm Max | 470 µH | - | - | Surface Mount | - | 0.232" L x 0.232" W (5.90mm x 5.90mm) | - | -40°C ~ 85°C | 1 kHz | 0.118" (3.00mm) |
|

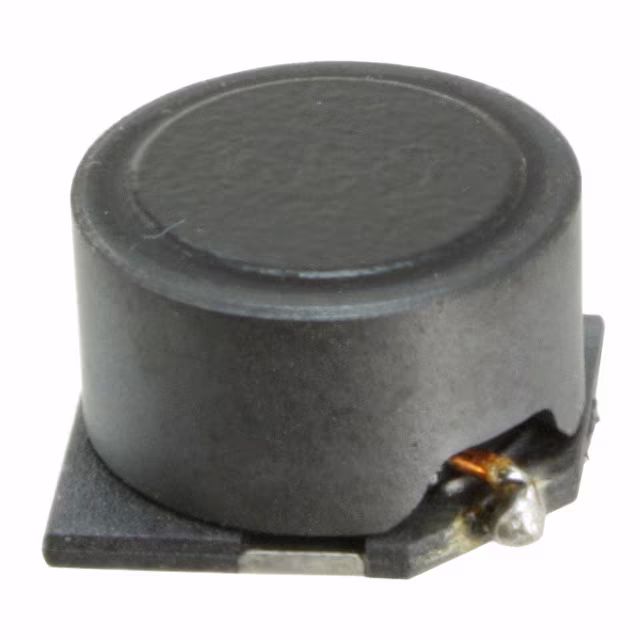

LMXS131JM220FTASFIXED IND 22UH 4A 32 MOHM SMD KYOCERA AVX |
3,566 |
|
Datasheet |
LMXS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 4 A | - | - | Shielded | 32mOhm Max | 22 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.309" (7.85mm) |
