Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW18AN4N1B8ZDFIXED IND 4.1NH 2.2A 0.028OHM SM Murata Electronics |
17,194 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 4.1 nH | ±0.1nH | 2.2 A | - | Unshielded | 28mOhm Max | 30 @ 250MHz | 10GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
|
LQW18AN47NJ80DFIXED IND 47NH 830MA 0.23OHM SMD Murata Electronics |
15,471 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 47 nH | ±5% | 830 mA | - | Unshielded | 230mOhm Max | 32 @ 200MHz | 2.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
|
LQW18AN2N4C8ZDFIXED IND 2.4NH 2.4A 0.026OHM SM Murata Electronics |
11,382 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 2.4 nH | ±0.2nH | 2.4 A | - | Unshielded | 26mOhm Max | 18 @ 250MHz | 15GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|

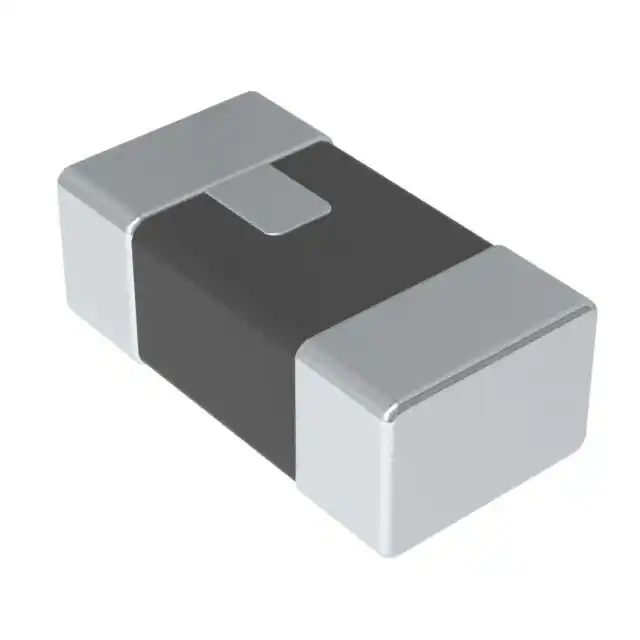

LQM18JNR16J00DFIXED IND 160NH 550MA 600MOHM SM Murata Electronics |
11,059 |
|
Datasheet |
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 160 nH | ±5% | 550 mA | - | Shielded | 600mOhm | 8 @ 25MHz | 100MHz | AEC-Q200 | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.026" (0.65mm) |
|
|
LQW18ANR33J80DFIXED IND 330NH 190MA 3.84OHM SM Murata Electronics |
8,766 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 330 nH | ±5% | 190 mA | - | Unshielded | 3.84Ohm Max | 25 @ 100MHz | 1.1GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
.jpg)
|
LQP02HQ0N2B02EFIXED IND 0.2NH 1A 10 MOHM SMD Murata Electronics |
6,320 |
|
Datasheet |
LQP03 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 0.2 nH | ±0.1nH | 1 A | - | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.013" (0.32mm) |
|
|
LQW18AN78NG8ZDFIXED IND 78NH 590MA 0.41OHM SMD Murata Electronics |
5,757 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 78 nH | ±2% | 590 mA | - | Unshielded | 410mOhm Max | 28 @ 150MHz | 2.28GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
|
LQW18AN37NG8ZDFIXED IND 37NH 910MA 0.2OHM SMD Murata Electronics |
5,509 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 37 nH | ±2% | 910 mA | - | Unshielded | 200mOhm Max | 37 @ 250MHz | 3GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
|
LQW18AN8N4C8ZDFIXED IND 8.4NH 1.6A 0.052OHM SM Murata Electronics |
4,881 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 8.4 nH | ±0.2nH | 1.6 A | - | Unshielded | 52mOhm Max | 38 @ 250MHz | 4.75GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
|
LQW18AN19NG8ZDFIXED IND 19NH 1.4A 0.075OHM SMD Murata Electronics |
4,306 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 19 nH | ±2% | 1.4 A | - | Unshielded | 75mOhm Max | 40 @ 250MHz | 4.6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
