Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW04AN2N2C00DFIXED IND 2.2NH 1.1A 40MOHM SMD Murata Electronics |
4,222 |
|
Datasheet |
LQW04 | 0302 (0804 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | ±0.2nH | 1.1 A | - | 03015 (0804 Metric) | Unshielded | 40mOhm Max | 2.2 nH | 21 @ 250MHz | 12GHz | Surface Mount | - | 0.031" L x 0.016" W (0.80mm x 0.40mm) | - | -55°C ~ 125°C | 100 MHz | 0.018" (0.45mm) |
|
LQH3NPN101MGRLFIXED IND 100UH 220MA 3.84OHM SM Murata Electronics |
2,552 |
|
Datasheet |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 220 mA | 190mA | 1212 (3030 Metric) | Shielded | 3.84Ohm Max | 100 µH | - | 5MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 85°C | 1 MHz | 0.039" (1.00mm) |
|
|
LQH3NPN221MGRLFIXED IND 220UH 150MA 9 OHM SMD Murata Electronics |
4,096 |
|
Datasheet |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 150 mA | 120mA | 1212 (3030 Metric) | Shielded | 9Ohm Max | 220 µH | - | 2MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 85°C | 1 MHz | 0.039" (1.00mm) |
|
|
LQH3NPN251MGRLFIXED IND 250UH 140MA 9.6OHM SMD Murata Electronics |
4,823 |
|
Datasheet |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 140 mA | 110mA | 1212 (3030 Metric) | Shielded | 9.6Ohm Max | 250 µH | - | 2MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 85°C | 1 MHz | 0.039" (1.00mm) |
|
|
LQH32PH1R0NN0LFIXED IND 1UH 2.05A 54 MOHM SMD Murata Electronics |
3,824 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.05 A | 2.3A | 1210 (3225 Metric) | Shielded | 54mOhm Max | 1 µH | - | 100MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 85°C | 1 MHz | 0.067" (1.70mm) |
|
|
LQH32PH1R5NN0LFIXED IND 1.5UH 1.75A 68.4 MOHM Murata Electronics |
2,650 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.75 A | 1.75A | 1210 (3225 Metric) | Shielded | 68.4mOhm Max | 1.5 µH | - | 70MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 85°C | 1 MHz | 0.067" (1.70mm) |
|
|
LQH32PH3R3NN0LFIXED IND 3.3UH 1.2A 144MOHM SMD Murata Electronics |
2,783 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.2 A | 1.25A | 1210 (3225 Metric) | Shielded | 144mOhm Max | 3.3 µH | - | 50MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 85°C | 1 MHz | 0.067" (1.70mm) |
|
|
LQH32PHR47NN0LFIXED IND 470NH 2.55A 36MOHM SMD Murata Electronics |
3,966 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.55 A | 3.4A | 1210 (3225 Metric) | Shielded | 36mOhm Max | 470 nH | - | 100MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 85°C | 1 MHz | 0.067" (1.70mm) |
|
LQH55PN1R2NR0LFIXED IND 1.2UH 2.9A 21 MOHM SMD Murata Electronics |
2,362 |
|
- |
LQH55 | 2220 (5750 Metric) | Cut Tape (CT) | Obsolete | Wirewound | - | ±30% | 2.9 A | 2.6A | - | Shielded | 21mOhm | 1.2 µH | - | 80MHz | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | -40°C ~ 85°C | 100 kHz | 0.197" (5.00mm) |
|
|

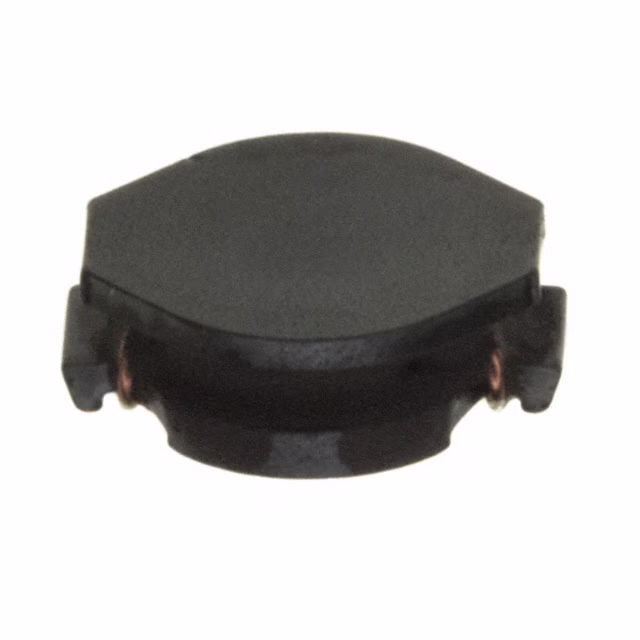

LQH55PN2R2NR0LFIXED IND 2.2UH 2.5A 31 MOHM SMD Murata Electronics |
2,984 |
|
- |
LQH55 | 2220 (5750 Metric) | Cut Tape (CT) | Obsolete | Wirewound | - | ±30% | 2.5 A | 2.1A | - | Shielded | 31mOhm | 2.2 µH | - | 60MHz | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | -40°C ~ 85°C | 100 kHz | 0.073" (1.85mm) |
