Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TYA3015150M-10FIXED IND 15UH 1.1A 610 MOHM SMD |
12,384 |
|
Datasheet |
TYA3015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 15 µH | ±20% | 1.1 A | 1.45A | Shielded | 610mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.065" (1.65mm) |
|
NR6045T6R3MFIXED IND 6.3UH 2.8A 49.4MOHM SM |
12,326 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 6.3 µH | ±20% | 2.8 A | 3.8A | Shielded | 49.4mOhm Max | - | 15MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
AIAP-01-4R7K-TFIXED IND 4.7UH 1.7A 68 MOHM TH |
11,620 |
|
Datasheet |
AIAP-01 | Axial | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±10% | 1.7 A | - | Unshielded | 68mOhm Max | - | 86MHz | - | -40°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.130" Dia x 0.360" L (3.30mm x 9.14mm) | - |
|
LQH3NPN220MJRLFIXED IND 22UH 350MA 600MOHM SMD |
11,481 |
|
Datasheet |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 350 mA | 520mA | Shielded | 600mOhm Max | - | 20MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
NRS6028T100MMGKVFIXED IND 10UH 1.9A 84.5MOHM SMD |
11,065 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.9 A | 1.9A | Shielded | 84.5mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
VLS6045EX-101MFIXED IND 100UH 900MA 611MOHM SM |
10,857 |
|
Datasheet |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 900 mA | 1.1A | Shielded | 470mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
HMLQ25201T-2R2MSRFIXED IND 2.2UH 2.4A 102MOHM SMD |
10,655 |
|
Datasheet |
HMLQ25201T | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | 2.2 µH | ±20% | 2.4 A | 3A | Shielded | 102mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
NRS6028T470MMGJVFIXED IND 47UH 920MA 390MOHM SMD |
10,628 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 920 mA | 1A | Shielded | 390mOhm Max | - | 8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
ASPI-0615FS-220M-T2FIXED IND 22UH 1A 170 MOHM SMD |
9,529 |
|
Datasheet |
ASPI-0615FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1 A | 1.1A | Shielded | 170mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.087" (2.20mm) |
|
ASPI-0418FS-100M-T3FIXED IND 10UH 1.3A 150 MOHM SMD |
9,400 |
|
Datasheet |
ASPI-0418FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.2 A | 1.3A | Shielded | 180mOhm Max | - | 25MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
LQH3NPN1R0MMELFIXED IND 1UH 1.6A 30 MOHM SMD |
8,801 |
|
Datasheet |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 1.6 A | 2.35A | Shielded | 30mOhm Max | - | 100MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
VLS5045EX-470MFIXED IND 47UH 1A 390 MOHM SMD |
7,240 |
|
Datasheet |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1 A | 1.3A | Shielded | 390mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|
LSXBD6060YEL100MFIXED IND 10UH 2.5A 61.1MOHM SMD |
7,045 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 10 µH | ±20% | 2.5 A | 3A | Shielded | 47mOhm | - | 12MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
VLS201610ET-100MFIXED IND 10UH 400MA 1.38OHM SMD |
6,910 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 400 mA | 400mA | Shielded | 1.38Ohm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
|
LQH3NPN1R0MJRLFIXED IND 1UH 1.23A 48 MOHM SMD |
6,724 |
|
Datasheet |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 1.23 A | 2.25A | Shielded | 48mOhm Max | - | 100MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
HTEL20120H-R47MSR20120H 1.47H 20% |
6,654 |
|
Datasheet |
HTEL20120H | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Metal | 0.47 µH | ±20% | 4 A | 4.8A | Unshielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
SDCL1V4030-331M-RIND 330 UH 0.38A SMT |
6,373 |
|
Datasheet |
SDCL1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±20% | 250 mA | 380mA | Shielded | 5.06Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
VLS252010CX-R47M-1FIXED IND 470NH 3.22A 38MOHM SMD |
6,365 |
|
Datasheet |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 3.22 A | 3.08A | Shielded | 38mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LQH3NPN330MMELFIXED IND 33UH 460MA 660MOHM SMD |
6,159 |
|
Datasheet |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 460 mA | 440mA | Shielded | 660mOhm Max | - | 8MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|

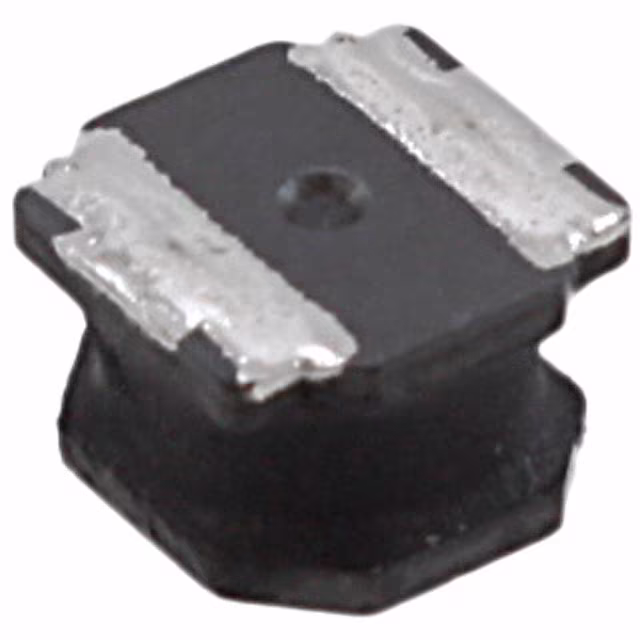

NR6045T680MFIXED IND 68UH 900MA 429MOHM SMD |
6,127 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 900 mA | 1A | Shielded | 429mOhm Max | - | 4MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
