Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AISC-1206-6N8J-TFIXED IND 6.8NH 1A 70 MOHM SMD Abracon LLC |
4,545 |
|
Datasheet |
AISC-1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 1 A | - | - | Unshielded | 70mOhm Max | 6.8 nH | 30 @ 300MHz | 5.5GHz | Surface Mount | - | 0.140" L x 0.085" W (3.56mm x 2.16mm) | - | -40°C ~ 125°C | 100 MHz | 0.060" (1.52mm) |
|
|
AISC-1206-R12J-TFIXED IND 120NH 800MA 300MOHM SM Abracon LLC |
2,117 |
|
Datasheet |
AISC-1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 800 mA | - | - | Unshielded | 300mOhm Max | 120 nH | 60 @ 300MHz | 1.1GHz | Surface Mount | - | 0.140" L x 0.085" W (3.56mm x 2.16mm) | - | -40°C ~ 125°C | 100 MHz | 0.060" (1.52mm) |
|
|
AISC-1206-R18J-TFIXED IND 180NH 700MA 430MOHM SM Abracon LLC |
3,951 |
|
Datasheet |
AISC-1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 700 mA | - | - | Unshielded | 430mOhm Max | 180 nH | 60 @ 300MHz | 900MHz | Surface Mount | - | 0.140" L x 0.085" W (3.56mm x 2.16mm) | - | -40°C ~ 125°C | 50 MHz | 0.060" (1.52mm) |
|
|
AISC-1206-R22J-TFIXED IND 220NH 670MA 560MOHM SM Abracon LLC |
2,402 |
|
Datasheet |
AISC-1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 670 mA | - | - | Unshielded | 560mOhm Max | 220 nH | 60 @ 300MHz | 760MHz | Surface Mount | - | 0.140" L x 0.085" W (3.56mm x 2.16mm) | - | -40°C ~ 125°C | 50 MHz | 0.060" (1.52mm) |
|
|
AISC-1206-R82J-TFIXED IND 820NH 400MA 1.82OHM SM Abracon LLC |
4,158 |
|
Datasheet |
AISC-1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 400 mA | - | - | Unshielded | 1.82Ohm Max | 820 nH | 45 @ 150MHz | 420MHz | Surface Mount | - | 0.140" L x 0.085" W (3.56mm x 2.16mm) | - | -40°C ~ 125°C | 35 MHz | 0.060" (1.52mm) |
|

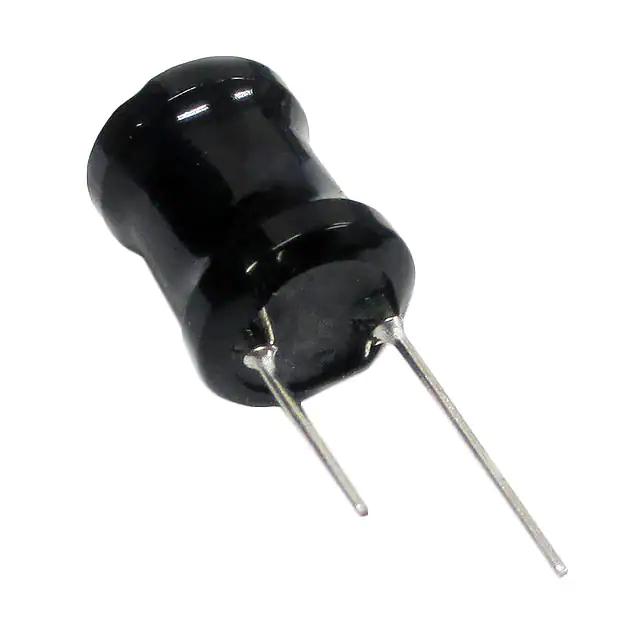

AIUR-16-220KFIXED IND 22UH 1A 71 MOHM TH Abracon LLC |
4,391 |
|
Datasheet |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1 A | 1.2A | - | Unshielded | 71mOhm Max | 22 µH | - | - | Through Hole | - | 0.276" Dia (7.00mm) | - | -25°C ~ 85°C | 10 kHz | 0.374" (9.50mm) |
|
|
AIUR-16-5R6KFIXED IND 5.6UH 1.3A 27 MOHM TH Abracon LLC |
3,796 |
|
Datasheet |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.3 A | 2.3A | - | Unshielded | 27mOhm Max | 5.6 µH | - | - | Through Hole | - | 0.276" Dia (7.00mm) | - | -25°C ~ 85°C | 10 kHz | 0.374" (9.50mm) |
|
|
AIUR-16-6R8KFIXED IND 6.8UH 1.3A 29 MOHM TH Abracon LLC |
4,650 |
|
Datasheet |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.3 A | 2.1A | - | Unshielded | 29mOhm Max | 6.8 µH | - | - | Through Hole | - | 0.276" Dia (7.00mm) | - | -25°C ~ 85°C | 10 kHz | 0.374" (9.50mm) |
|
|
AIUR-16-8R2KFIXED IND 8.2UH 1.3A 36 MOHM TH Abracon LLC |
2,877 |
|
Datasheet |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.3 A | 1.9A | - | Unshielded | 36mOhm Max | 8.2 µH | - | - | Through Hole | - | 0.276" Dia (7.00mm) | - | -25°C ~ 85°C | 10 kHz | 0.374" (9.50mm) |
|
|
AIUR-16-120KFIXED IND 12UH 1.3A 46 MOHM TH Abracon LLC |
4,439 |
|
Datasheet |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.3 A | 1.55A | - | Unshielded | 46mOhm Max | 12 µH | - | - | Through Hole | - | 0.276" Dia (7.00mm) | - | -25°C ~ 85°C | 10 kHz | 0.374" (9.50mm) |
