Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDR0805-680KLFIXED IND 68UH 850MA 300MOHM SMD |
2,633 |
|
Datasheet |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 850 mA | 1.3A | - | Unshielded | 300mOhm Max | 68 µH | 15 @ 2.52MHz | 8MHz | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.209" (5.30mm) |
|
82472CFIXED IND 4.7UH 800MA 190MOHM SM |
2,396 |
|
Datasheet |
8200 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 800 mA | - | 1210 | Unshielded | 190mOhm Max | 4.7 µH | 20 @ 1MHz | 58MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 85°C | 10 kHz | 0.091" (2.30mm) |
|
|
82683CFIXED IND 68UH 200MA 2.55OHM SMD |
1,786 |
|
Datasheet |
8200 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 200 mA | - | 1210 | Unshielded | 2.55Ohm Max | 68 µH | 40 @ 1MHz | 15MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 85°C | 10 kHz | 0.091" (2.30mm) |
|
|
SDR0805-470KLFIXED IND 47UH 1A 200 MOHM SMD |
1,313 |
|
Datasheet |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1 A | 1.6A | - | Unshielded | 200mOhm Max | 47 µH | 15 @ 2.52MHz | 9MHz | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.209" (5.30mm) |
|
|
82104CFIXED IND 100UH 160MA 3.5OHM SMD |
1,260 |
|
Datasheet |
8200 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 160 mA | - | 1210 | Unshielded | 3.5Ohm Max | 100 µH | 40 @ 800kHz | 13MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 85°C | 10 kHz | 0.091" (2.30mm) |
|
22R686MCFIXED IND 68MH 26MA 242 OHM SMD |
170,923 |
|
Datasheet |
2200RM | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 26 mA | - | - | Unshielded | 242Ohm Max | 68 mH | - | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 85°C | 1 kHz | 0.311" (7.90mm) |
|
B82498F1102J000FIXED IND 1UH 240MA 550 MOHM SMD |
28,120 |
|
Datasheet |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 240 mA | - | 0805 (2012 Metric) | Unshielded | 550mOhm Max | 1 µH | 20 @ 7.96MHz | 440MHz | Surface Mount | - | 0.091" L x 0.067" W (2.30mm x 1.70mm) | - | -55°C ~ 125°C | 7.96 MHz | 0.055" (1.40mm) |
|
B82498F1222J000FIXED IND 2.2UH 130MA 1.6OHM SMD |
11,926 |
|
Datasheet |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 130 mA | - | 0805 (2012 Metric) | Unshielded | 1.6Ohm Max | 2.2 µH | 20 @ 7.96MHz | 330MHz | Surface Mount | - | 0.091" L x 0.067" W (2.30mm x 1.70mm) | - | -55°C ~ 125°C | 7.96 MHz | 0.055" (1.40mm) |
|
|
B82498F1332J000FIXED IND 3.3UH 100MA 3.3OHM SMD |
9,042 |
|
Datasheet |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 100 mA | - | 0805 (2012 Metric) | Unshielded | 3.3Ohm Max | 3.3 µH | 20 @ 7.96MHz | 250MHz | Surface Mount | - | 0.091" L x 0.067" W (2.30mm x 1.70mm) | - | -55°C ~ 125°C | 7.96 MHz | 0.055" (1.40mm) |
|
|
B82498F1122J000FIXED IND 1.2UH 220MA 650MOHM SM |
8,150 |
|
Datasheet |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 220 mA | - | 0805 (2012 Metric) | Unshielded | 650mOhm Max | 1.2 µH | 20 @ 7.96MHz | 420MHz | Surface Mount | - | 0.091" L x 0.067" W (2.30mm x 1.70mm) | - | -55°C ~ 125°C | 7.96 MHz | 0.055" (1.40mm) |
|
|
82154CFIXED IND 150UH 130MA 5.9OHM SMD |
7,774 |
|
Datasheet |
8200 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 130 mA | - | 1210 | Unshielded | 5.9Ohm Max | 150 µH | 40 @ 800kHz | 11MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 85°C | 10 kHz | 0.091" (2.30mm) |
|
RLB0913-100KFIXED IND 10UH 3.1A 45 MOHM TH |
7,011 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 3.1 A | 3A | - | Unshielded | 45mOhm | 10 µH | 50 @ 2.52MHz | 14MHz | Through Hole | - | 0.335" Dia (8.50mm) | - | -55°C ~ 125°C | 1 kHz | 0.492" (12.50mm) |
|
|
RLB0913-183KFIXED IND 18MH 90MA 40 OHM TH |
5,015 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 90 mA | 40mA | - | Unshielded | 40Ohm | 18 mH | 30 @ 79.6kHz | 200kHz | Through Hole | - | 0.335" Dia (8.50mm) | - | -55°C ~ 125°C | 1 kHz | 0.492" (12.50mm) |
|
|
B82498F1152J000FIXED IND 1.5UH 200MA 700MOHM SM |
3,678 |
|
Datasheet |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 200 mA | - | 0805 (2012 Metric) | Unshielded | 700mOhm Max | 1.5 µH | 20 @ 7.96MHz | 380MHz | Surface Mount | - | 0.091" L x 0.067" W (2.30mm x 1.70mm) | - | -55°C ~ 125°C | 7.96 MHz | 0.055" (1.40mm) |
|

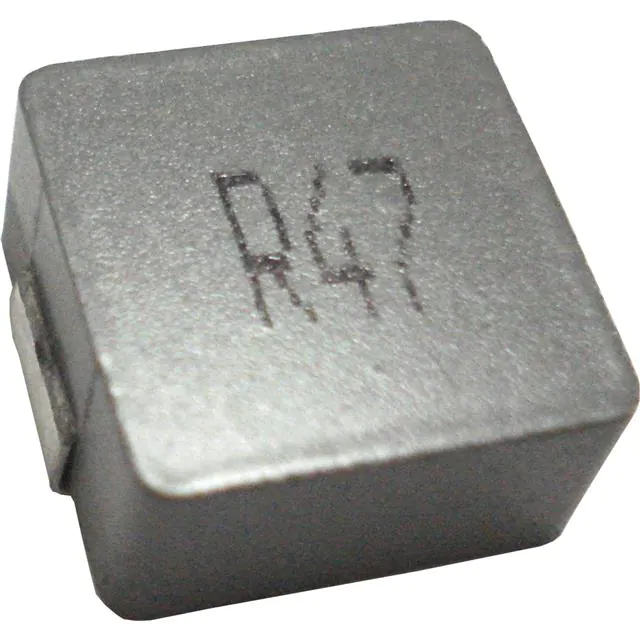

BMQA000606302R2MA1FIXED IND 2.2UH 11A 9.4 MOHM SMD |
2,837 |
|
Datasheet |
BMQx | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 11 A | 12.5A | - | Shielded | 9.4mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
RLB0913-104KFIXED IND 100MH 40MA 235 OHM TH |
2,787 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 40 mA | 20mA | - | Unshielded | 235Ohm | 100 mH | 20 @ 25.2kHz | 100kHz | Through Hole | - | 0.335" Dia (8.50mm) | - | -55°C ~ 125°C | 1 kHz | 0.492" (12.50mm) |
|
|
RLB0913-101KFIXED IND 100UH 1.2A 280 MOHM TH |
1,929 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.2 A | 910mA | - | Unshielded | 280mOhm | 100 µH | 20 @ 796kHz | 3.7MHz | Through Hole | - | 0.335" Dia (8.50mm) | - | -55°C ~ 125°C | 1 kHz | 0.492" (12.50mm) |
|
|
RLB0913-563KFIXED IND 56MH 50MA 135 OHM TH |
1,506 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 50 mA | 20mA | - | Unshielded | 135Ohm | 56 mH | 20 @ 79.6kHz | 100kHz | Through Hole | - | 0.335" Dia (8.50mm) | - | -55°C ~ 125°C | 1 kHz | 0.492" (12.50mm) |
|
|
RLB0913-2R2KFIXED IND 2.2UH 5.6A 16 MOHM TH |
1,491 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 5.6 A | 6.5A | - | Unshielded | 16mOhm | 2.2 µH | 20 @ 7.96MHz | 100MHz | Through Hole | - | 0.335" Dia (8.50mm) | - | -55°C ~ 125°C | 7.96 MHz | 0.492" (12.50mm) |
|
|
RLB0913-122KFIXED IND 1.2MH 300MA 4 OHM TH |
1,197 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 300 mA | 130mA | - | Unshielded | 4Ohm | 1.2 mH | 50 @ 252kHz | 1.1MHz | Through Hole | - | 0.335" Dia (8.50mm) | - | -55°C ~ 125°C | 1 kHz | 0.492" (12.50mm) |
