Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

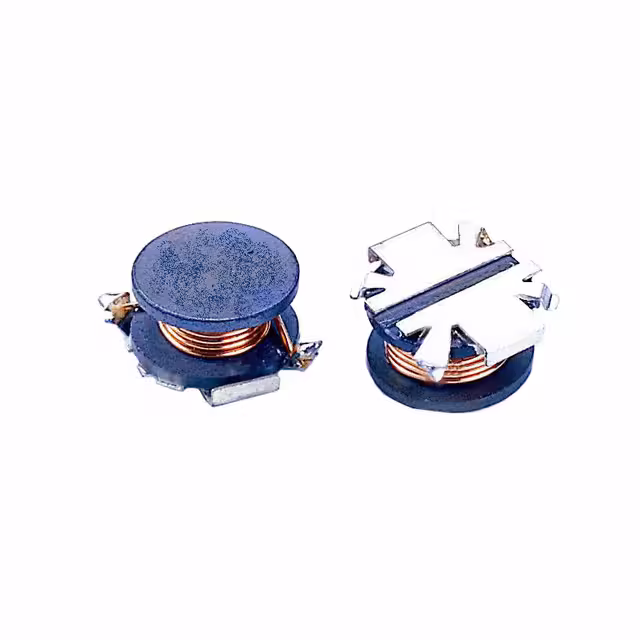

SCH114-180FIXED IND 18UH 2.55A 85 MOHM SMD Signal Transformer |
0 |
|
Datasheet |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 2.55 A | 3.4A | Unshielded | 85mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
|
|
SCH114-181FIXED IND 180UH 900MA 589MOHM SM Signal Transformer |
0 |
|
Datasheet |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 180 µH | ±10% | 900 mA | 1A | Unshielded | 589mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
|
|
SCH114-220FIXED IND 22UH 2.37A 100MOHM SMD Signal Transformer |
0 |
|
Datasheet |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 2.37 A | 3A | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
|
|
SCH114-221FIXED IND 220UH 800MA 747MOHM SM Signal Transformer |
0 |
|
Datasheet |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±10% | 800 mA | 900mA | Unshielded | 747mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
|
|
SCH114-270FIXED IND 27UH 2.18A 114MOHM SMD Signal Transformer |
0 |
|
Datasheet |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 27 µH | ±20% | 2.18 A | 2.7A | Unshielded | 114mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
|
|
SCH114-271FIXED IND 270UH 680MA 927MOHM SM Signal Transformer |
0 |
|
Datasheet |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 270 µH | ±10% | 680 mA | 720mA | Unshielded | 927mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
|
|
SCH114-2R5FIXED IND 2.5UH 5.1A 30 MOHM SMD Signal Transformer |
0 |
|
Datasheet |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.5 µH | ±30% | 5.1 A | 6.5A | Unshielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
|
|
SCH114-330FIXED IND 33UH 2.05A 122MOHM SMD Signal Transformer |
0 |
|
Datasheet |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 2.05 A | 2.5A | Unshielded | 122mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
|
|
SCH114-331FIXED IND 330UH 560MA 1.22OHM SM Signal Transformer |
0 |
|
Datasheet |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±10% | 560 mA | 700mA | Unshielded | 1.22Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
|
|
SCH114-390FIXED IND 39UH 1.95A 139MOHM SMD Signal Transformer |
0 |
|
Datasheet |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 39 µH | ±20% | 1.95 A | 2.3A | Unshielded | 139mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
