Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

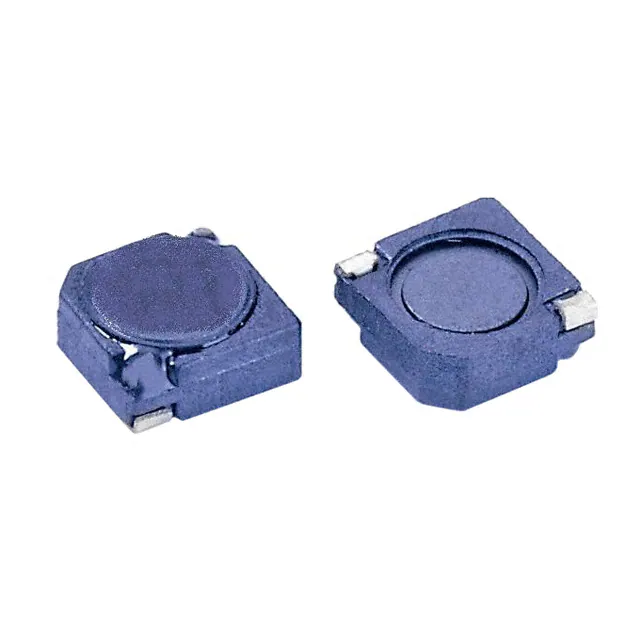

SCC5D23-471FIXED IND 470UH 210MA 4.78OHM SM Signal Transformer |
3,869 |
|
Datasheet |
SCC5D23 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 210 mA | 165mA | - | Shielded | 4.78Ohm Max | 470 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.098" (2.50mm) |
|
|
SCC5D23-4R7FIXED IND 4.7UH 2.2A 62 MOHM SMD Signal Transformer |
4,560 |
|
Datasheet |
SCC5D23 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 2.2 A | 1.6A | - | Shielded | 62mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.098" (2.50mm) |
|
|
SCC5D23-820FIXED IND 82UH 580MA 1 OHM SMD Signal Transformer |
3,192 |
|
Datasheet |
SCC5D23 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 580 mA | 350mA | - | Shielded | 1Ohm Max | 82 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.098" (2.50mm) |
|
|
SCC5D23-8R2FIXED IND 8.2UH 1.75A 103MOHM SM Signal Transformer |
3,280 |
|
Datasheet |
SCC5D23 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.75 A | 1.12A | - | Shielded | 103mOhm Max | 8.2 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.098" (2.50mm) |
|
F1A1-464615-390MFIXED IND 39UH 450MA 1200 MOHM Signal Transformer |
4,826 |
|
Datasheet |
F1A1-464615 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | ±20% | 450 mA | 400mA | - | Shielded | 1.2kOhm Max | 39 µH | - | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
|
|
F1A1-464615-3R3NFIXED IND 3.3UH 1.55A 150 MOHM Signal Transformer |
3,286 |
|
Datasheet |
F1A1-464615 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | ±30% | 1.55 A | 1.6A | - | Shielded | 150Ohm Max | 3.3 µH | - | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
|
|
F1A1-464615-120MFIXED IND 12UH 850MA 356 MOHM Signal Transformer |
2,955 |
|
Datasheet |
F1A1-464615 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | ±20% | 850 mA | 800mA | - | Shielded | 356Ohm Max | 12 µH | - | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
|
|
F1A1-464615-2R7NFIXED IND 2.7UH 1.6A 137 MOHM Signal Transformer |
2,917 |
|
Datasheet |
F1A1-464615 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | ±30% | 1.6 A | 1.7A | - | Shielded | 137Ohm Max | 2.7 µH | - | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
|
|
F1A1-464615-180MFIXED IND 18UH 700MA 618 MOHM Signal Transformer |
3,721 |
|
Datasheet |
F1A1-464615 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | ±20% | 700 mA | 650mA | - | Shielded | 618Ohm Max | 18 µH | - | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
|
|
F1A1-464615-1R0NFIXED IND 1.0UH 1.75A 81 MOHM Signal Transformer |
4,854 |
|
Datasheet |
F1A1-464615 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | ±30% | 1.75 A | 2.6A | - | Shielded | 81Ohm Max | 1 µH | - | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
