Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCIHP0718-1R0MFIXED IND 1UH 7A 18.5 MOHM SMD Signal Transformer |
351 |
|
Datasheet |
SCIHP0718 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 7 A | 11.5A | Shielded | 18.5mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.071" (1.80mm) |
|
SC3316F-471FIXED IND 470UH 600MA 1.27OHM SM Signal Transformer |
1,447 |
|
Datasheet |
SC3316F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 600 mA | 500mA | Unshielded | 1.27Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.205" (5.21mm) |
|

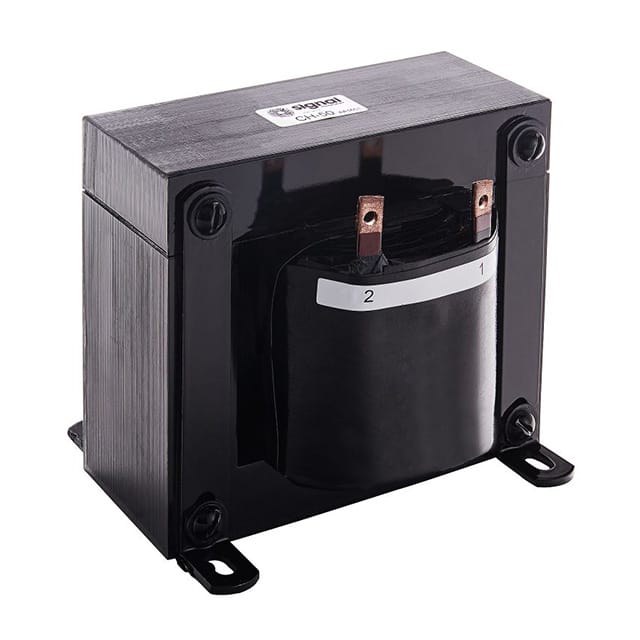

CH-50FIXED IND 1.4MH 50A 10 MOHM CHAS Signal Transformer |
8 |
|
Datasheet |
- | Nonstandard | Box | Active | - | - | 1.4 mH | - | 50 A | - | Unshielded | 10mOhm | - | - | - | - | - | - | Chassis Mount | - | 6.374" L x 5.252" W (161.90mm x 133.40mm) | 5.374" (136.50mm) |
|

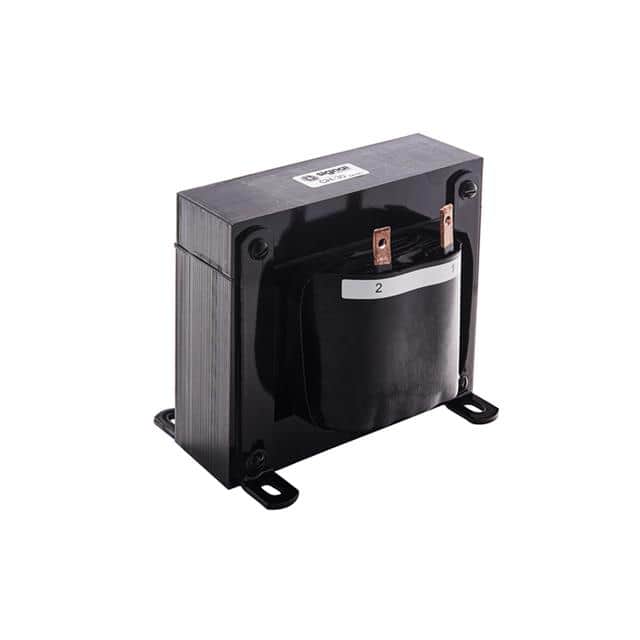

CH-30FIXED IND 4MH 30A 10 MOHM CHASS Signal Transformer |
2 |
|
Datasheet |
- | Nonstandard | Box | Active | - | - | 4 mH | - | 30 A | - | Unshielded | 10mOhm | - | - | - | - | - | - | Chassis Mount | - | 6.374" L x 5.000" W (161.90mm x 127.00mm) | 5.374" (136.50mm) |
|
F1C1-252012-2R2MFIXED IND 2.2 UH 2.7A 65 MOHM Signal Transformer |
972 |
|
Datasheet |
F1C1-2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 2.7 A | 3.3A | Shielded | 65mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
DRC-0406-681J-ULRADIAL INDUCTOR WITH LEADS, 680H Signal Transformer |
490 |
|
Datasheet |
DRC-0406 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±5% | 170 mA | - | Unshielded | 4.6Ohm Max | 50 @ 796kHz | 1.3MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 0.217" Dia (5.50mm) | - |
|
|
DRC-0406-471J-ULRADIAL INDUCTOR WITH LEADS, 470H Signal Transformer |
490 |
|
Datasheet |
DRC-0406 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 200 mA | - | Unshielded | 3.6Ohm Max | 50 @ 796kHz | 1.7MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 0.217" Dia (5.50mm) | - |
|
|
DRC-0707-100K-ULRADIAL INDUCTOR WITH LEADS, 10.0 Signal Transformer |
596 |
|
Datasheet |
DRC-0707 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 1.9 A | 2.1A | Unshielded | 43mOhm Max | 20 @ 2.52MHz | 19MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.335" Dia (8.50mm) | 0.374" (9.50mm) |
|
|
DRC-0807-3R3M-ULRADIAL INDUCTOR WITH LEADS, 3.3H Signal Transformer |
500 |
|
Datasheet |
DRC-0807 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 3.4 A | 3.8A | Unshielded | 13mOhm Max | 10 @ 7.96MHz | 38MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.394" Dia (10.00mm) | 0.374" (9.50mm) |
|
|
DRC-0406-3R3M-ULRADIAL INDUCTOR WITH LEADS, 3.3H Signal Transformer |
988 |
|
Datasheet |
DRC-0406 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.5 A | - | Unshielded | 130mOhm Max | 100 @ 7.96MHz | 75MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 0.217" Dia (5.50mm) | - |
