Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

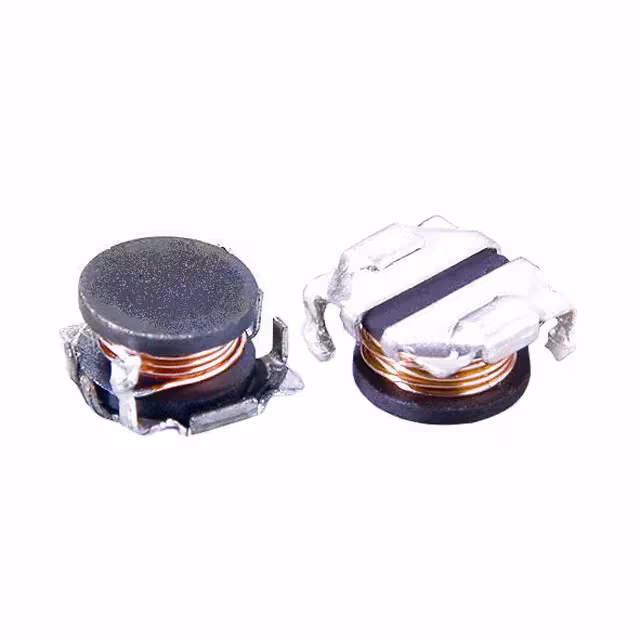

SCH53-121FIXED IND 120UH 420MA 1.8OHM SMD Signal Transformer |
0 |
|
Datasheet |
SCH53 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 120 µH | ±20% | 420 mA | 340mA | Unshielded | 1.8Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.126" (3.20mm) |
|
SCH53-150FIXED IND 15UH 1.2A 250 MOHM SMD Signal Transformer |
0 |
|
Datasheet |
SCH53 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±20% | 1.2 A | 1A | Unshielded | 250mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.126" (3.20mm) |
|
|
SCH53-151FIXED IND 150UH 390MA 2.4OHM SMD Signal Transformer |
0 |
|
Datasheet |
SCH53 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 150 µH | ±20% | 390 mA | 310mA | Unshielded | 2.4Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.126" (3.20mm) |
|
|
SCH53-180FIXED IND 18UH 1.1A 280 MOHM SMD Signal Transformer |
0 |
|
Datasheet |
SCH53 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 18 µH | ±20% | 1.1 A | 880mA | Unshielded | 280mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.126" (3.20mm) |
|
|
SCH53-181FIXED IND 180UH 330MA 2.66OHM SM Signal Transformer |
0 |
|
Datasheet |
SCH53 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 180 µH | ±20% | 330 mA | 300mA | Unshielded | 2.66Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.126" (3.20mm) |
|
|
SCH53-220FIXED IND 22UH 1.05A 390MOHM SMD Signal Transformer |
0 |
|
Datasheet |
SCH53 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 1.05 A | 800mA | Unshielded | 390mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.126" (3.20mm) |
|
|
SCH53-221FIXED IND 220UH 300MA 3.73OHM SM Signal Transformer |
0 |
|
Datasheet |
SCH53 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 220 µH | ±20% | 300 mA | 260mA | Unshielded | 3.73Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.126" (3.20mm) |
|
|
SCH53-270FIXED IND 27UH 900MA 420MOHM SMD Signal Transformer |
0 |
|
Datasheet |
SCH53 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 27 µH | ±20% | 900 mA | 720mA | Unshielded | 420mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.126" (3.20mm) |
|
|
SCH53-2R2FIXED IND 2.2UH 2.6A 66 MOHM SMD Signal Transformer |
0 |
|
Datasheet |
SCH53 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±20% | 2.6 A | 2.03A | Unshielded | 66mOhm Max | - | - | - | -40°C ~ 125°C | 7.96 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.126" (3.20mm) |
|
|
SCH53-330FIXED IND 33UH 800MA 490MOHM SMD Signal Transformer |
0 |
|
Datasheet |
SCH53 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±20% | 800 mA | 670mA | Unshielded | 490mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.126" (3.20mm) |
