Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

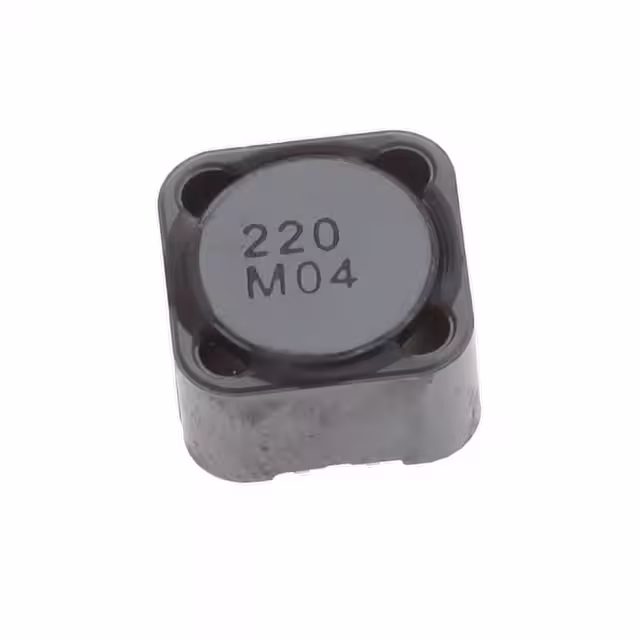

CDRH127L125NP-220MCFIXED IND 22UH 4.6A 36.7MOHM SMD Sumida America Components Inc. |
6,933 |
|
Datasheet |
CDRH127/L125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 22 µH | ±20% | 4.6 A | 5.6A | Shielded | 36.7mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
CDRH3D16NP-3R3NCFIXED IND 3.3UH 1.1A 85 MOHM SMD Sumida America Components Inc. |
6,391 |
|
Datasheet |
CDRH3D16 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±30% | 1.1 A | - | Shielded | 85mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|

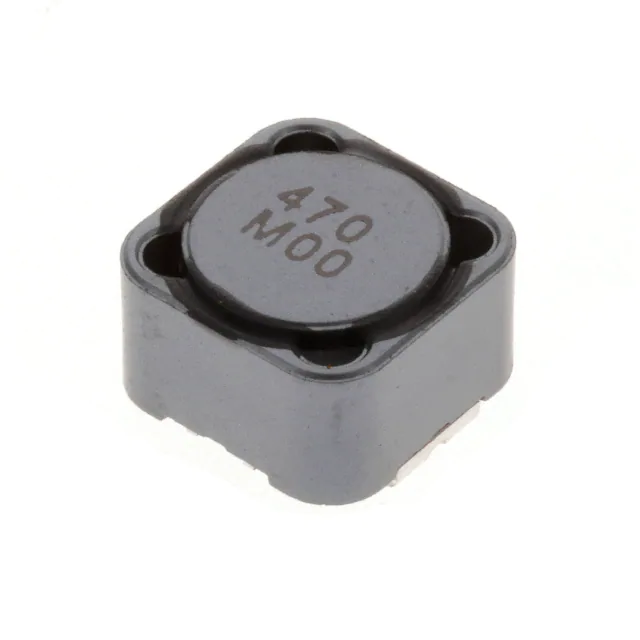

CDRH127L125NP-470MCFIXED IND 47UH 3.1A 83.2MOHM SMD Sumida America Components Inc. |
5,000 |
|
Datasheet |
CDRH127/L125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 47 µH | ±20% | 3.1 A | 3.9A | Shielded | 83.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

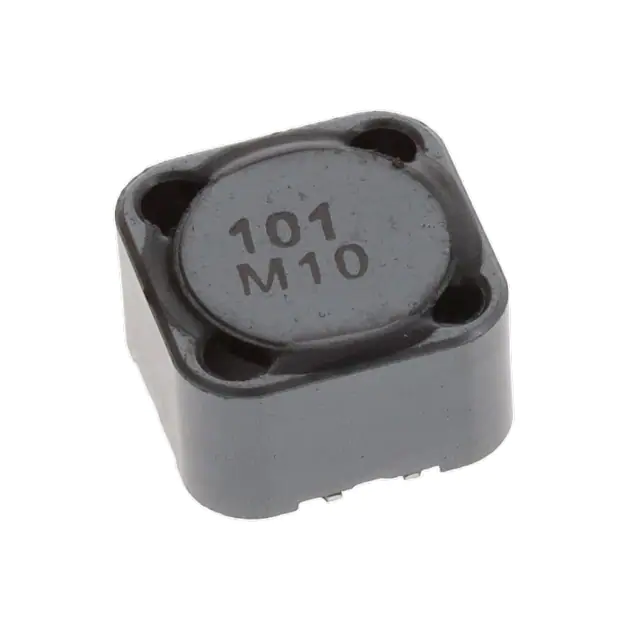

CDRH127L125NP-101MCFIXED IND 100UH 2A 171.2MOHM SMD Sumida America Components Inc. |
2,026 |
|
Datasheet |
CDRH127/L125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 100 µH | ±20% | 2 A | 2.6A | Shielded | 171.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

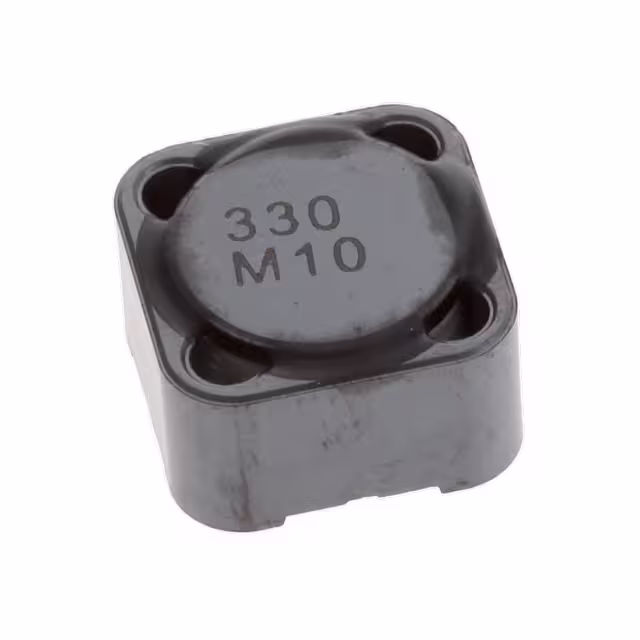

CDRH127L125NP-330MCFIXED IND 33UH 3.8A 53 MOHM SMD Sumida America Components Inc. |
546 |
|
Datasheet |
CDRH127/L125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 33 µH | ±20% | 3.8 A | 4.3A | Shielded | 53mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
CDRH124NP-680MCFIXED IND 68UH 1.5A 220 MOHM SMD Sumida America Components Inc. |
7,160 |
|
Datasheet |
CDRH124 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 1.5 A | - | Shielded | 220mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
CDRH125NP-151MCFIXED IND 150UH 1A 230 MOHM SMD Sumida America Components Inc. |
5,832 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 1 A | - | Shielded | 230mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH124NP-330MCFIXED IND 33UH 2.7A 97 MOHM SMD Sumida America Components Inc. |
3,789 |
|
Datasheet |
CDRH124 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 2.7 A | - | Shielded | 97mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|

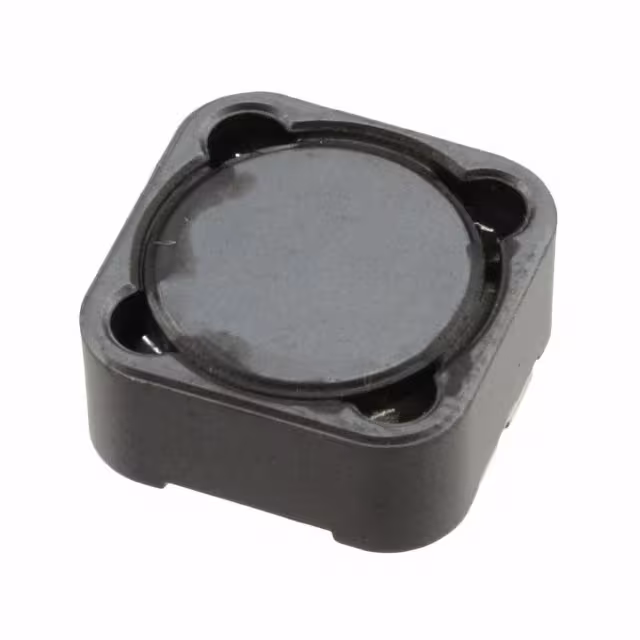

CDRH125/LDNP-220MCFIXED IND 22UH 3.28A 44 MOHM SMD Sumida America Components Inc. |
1,084 |
|
- |
CDRH125/LD | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 3.28 A | - | Shielded | 44mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|

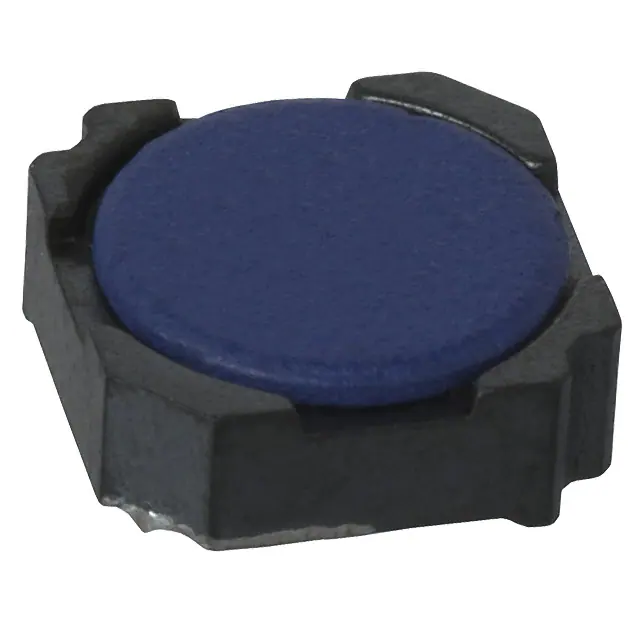

CDR7D28MNNP-100NCFIXED IND 10UH 2.5A 53.8MOHM SMD Sumida America Components Inc. |
23,406 |
|
Datasheet |
CDR7D28MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±25% | 2.5 A | 2.4A | Shielded | 53.8mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.118" (3.00mm) |
