Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

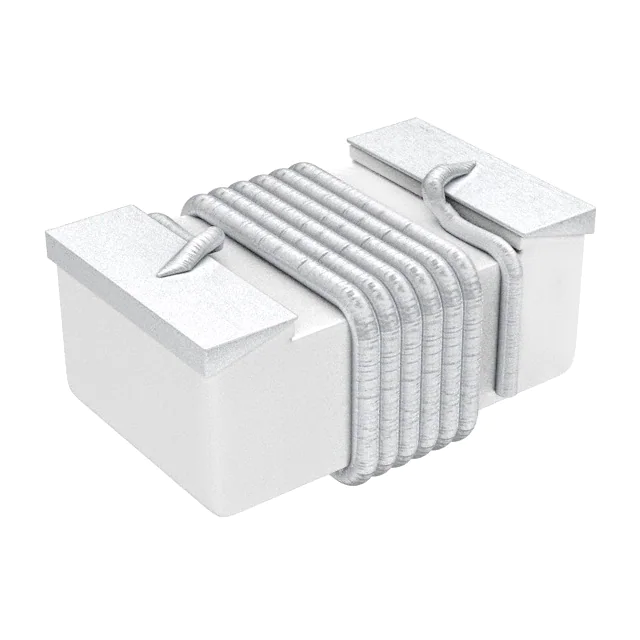

55081013400FIXED IND 100NH 350MA 260MOHM SM Sumida America Components Inc. |
1,405 |
|
Datasheet |
5508 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 100 nH | ±5% | 350 mA | - | Unshielded | 260mOhm Max | 40 @ 150MHz | 1.31GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0.056" (1.42mm) |
|
CDRH4D18NP-4R7NCFIXED IND 4.7UH 840MA 162MOHM SM Sumida America Components Inc. |
5,959 |
|
Datasheet |
CDRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 840 mA | - | Shielded | 162mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.079" (2.00mm) |
|
CDRH2D11/HPNP-4R7NCFIXED IND 4.7UH 850MA 238MOHM SM Sumida America Components Inc. |
1,453 |
|
Datasheet |
CDRH2D11/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 850 mA | 750mA | Shielded | 238mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.043" (1.10mm) |
|

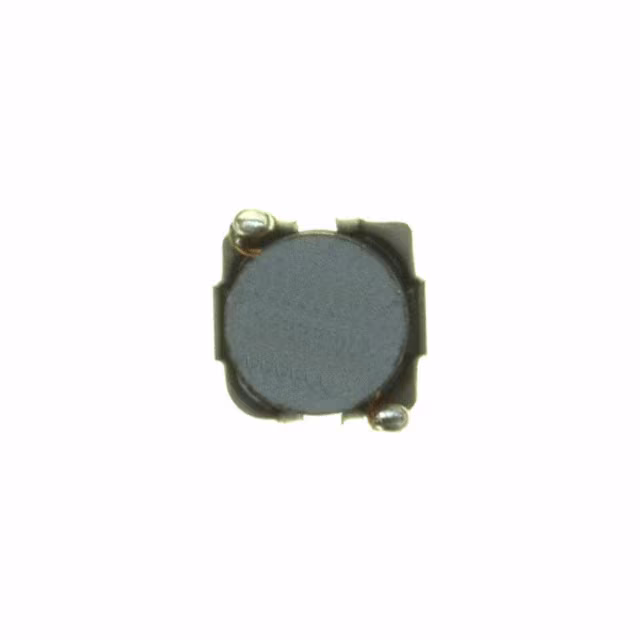

CDH53NP-101JCFIXED IND 100UH 370MA 1.57OHM SM Sumida America Components Inc. |
3,327 |
|
Datasheet |
CDH53 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 370 mA | - | Unshielded | 1.57Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.205" W (6.00mm x 5.20mm) | 0.126" (3.20mm) |
|
CDRH6D28NP-120NCFIXED IND 12UH 1.55A 70 MOHM SMD Sumida America Components Inc. |
10,249 |
|
Datasheet |
CDRH6D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 12 µH | ±30% | 1.55 A | - | Shielded | 70mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|

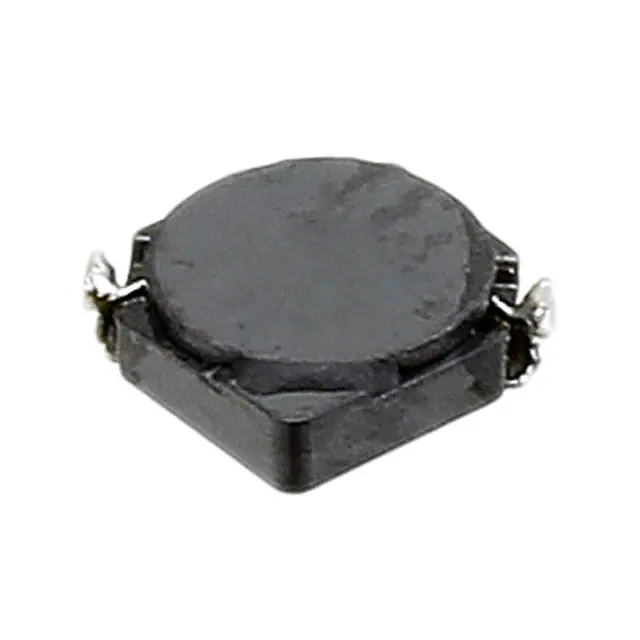

CDRH3D11HPNP-100NCFIXED IND 10UH 600MA 413MOHM SMD Sumida America Components Inc. |
4,802 |
|
Datasheet |
CDRH3D11/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±25% | 600 mA | 800mA | Shielded | 413mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|

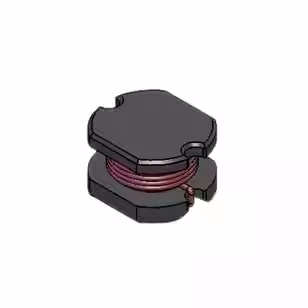

CD30D22HF-100MCFIXED IND 10UH 950MA 313MOHM SMD Sumida America Components Inc. |
2,667 |
|
Datasheet |
CD30D22 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 950 mA | 1.02A | Unshielded | 313mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.118" W (3.50mm x 3.00mm) | 0.098" (2.50mm) |
|

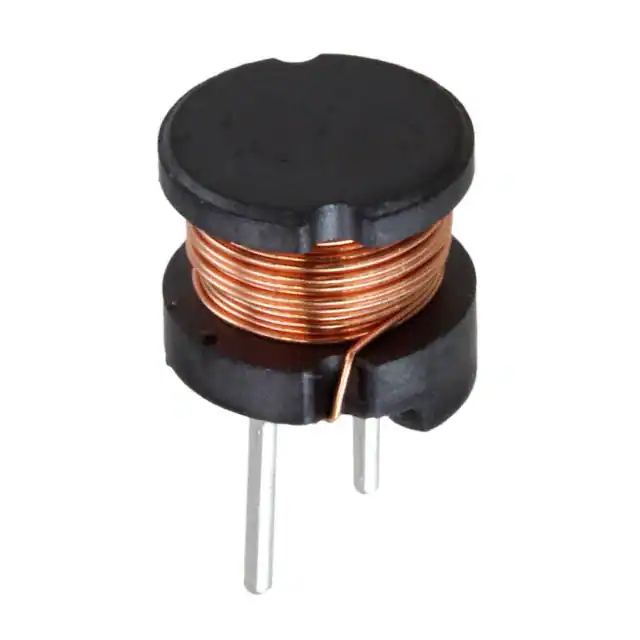

RCH875NP-331KFIXED IND 330UH 300MA 1.05OHM TH Sumida America Components Inc. |
6,790 |
|
Datasheet |
RCH-875 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 300 mA | 460mA | Unshielded | 1.05Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
CDRH4D18NP-330NCFIXED IND 33UH 320MA 694MOHM SMD Sumida America Components Inc. |
3,973 |
|
Datasheet |
CDRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±30% | 320 mA | - | Shielded | 694mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.079" (2.00mm) |
|

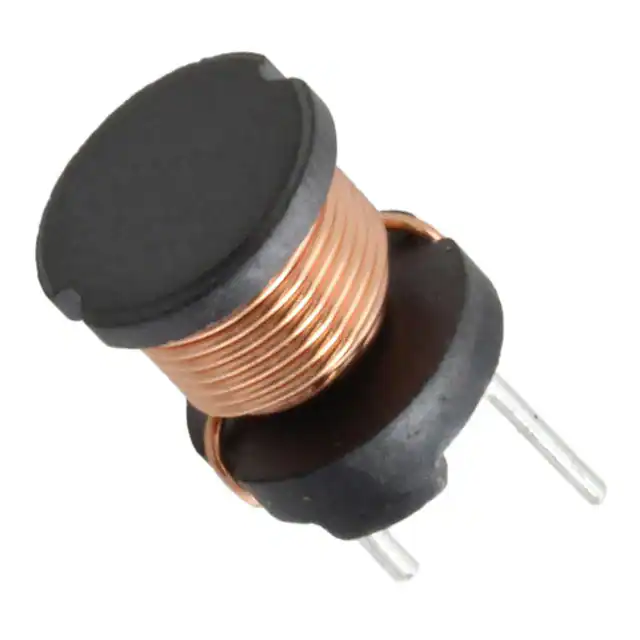

RCH895NP-470KFIXED IND 47UH 990MA 100 MOHM TH Sumida America Components Inc. |
2,417 |
|
Datasheet |
RCH-895 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 990 mA | 1.3A | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.374" (9.50mm) |
