Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH74NP-150MC-BFIXED IND 15UH 1.47A 81 MOHM SMD Sumida America Components Inc. |
7,754 |
|
Datasheet |
CDRH74 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 1.47 A | - | Shielded | 81mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
CDRH4D28CNP-100PCFIXED IND 10UH 1.26A 106MOHM SMD Sumida America Components Inc. |
6,889 |
|
Datasheet |
CDRH4D28C | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±25% | 1.26 A | - | Shielded | 106mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.118" (3.00mm) |
|

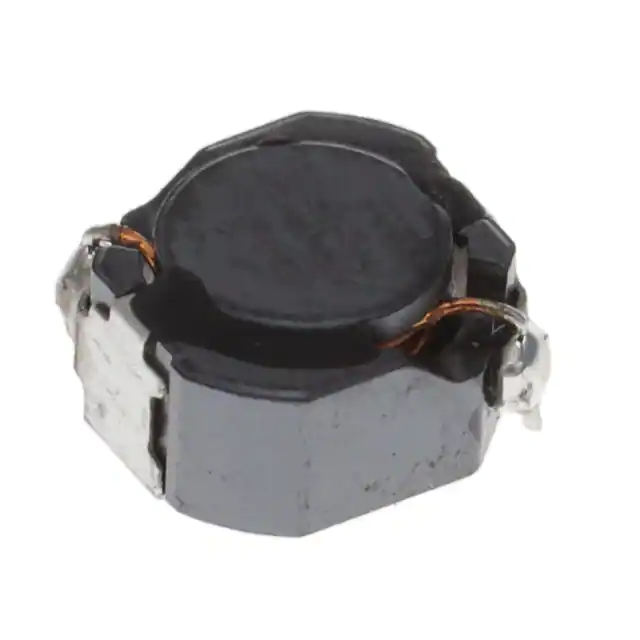

CDRH50D28BT150NP-220MCFIXED IND 22UH 1.14A 150MOHM SMD Sumida America Components Inc. |
5,635 |
|
Datasheet |
CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 1.14 A | 1.2A | Shielded | 150mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
|
CDRH74NP-151MC-BFIXED IND 150UH 460MA 880MOHM SM Sumida America Components Inc. |
4,603 |
|
Datasheet |
CDRH74 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±20% | 460 mA | - | Shielded | 880mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|

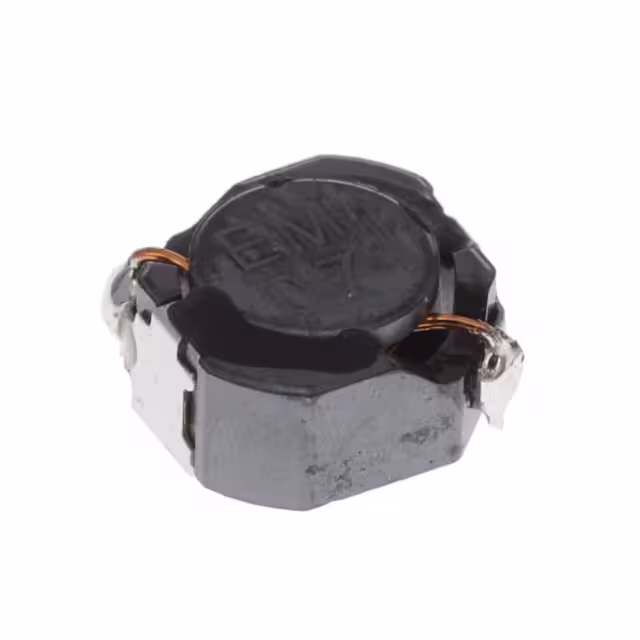

CDRH50D28BT150NP-4R7NCFIXED IND 4.7UH 2.5A 52MOHM SMD Sumida America Components Inc. |
2,843 |
|
Datasheet |
CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 2.5 A | 2.4A | Shielded | 52mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
CDRH4D28CLDNP-6R8PCFIXED IND 6.8UH 2.4A 48.8MOHM SM Sumida America Components Inc. |
2,824 |
|
Datasheet |
CDRH4D28C/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±25% | 2.4 A | 1.2A | Shielded | 48.8mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.118" (3.00mm) |
|
CDRH2D18/HPNP-1R7NCFIXED IND 1.7UH 2.2A 44 MOHM SMD Sumida America Components Inc. |
2,575 |
|
Datasheet |
CDRH2D18/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.7 µH | ±30% | 2.2 A | 1.85A | Shielded | 44mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
CDRH2D18/LDNP-3R3NCFIXED IND 3.3UH 2.1A 54 MOHM SMD Sumida America Components Inc. |
2,427 |
|
Datasheet |
CDRH2D18/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±30% | 2.1 A | 750mA | Shielded | 54mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
|
CDRH2D18/LDNP-6R8NCFIXED IND 6.8UH 1.32A 106MOHM SM Sumida America Components Inc. |
2,292 |
|
Datasheet |
CDRH2D18/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±30% | 1.32 A | 520mA | Shielded | 106mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|

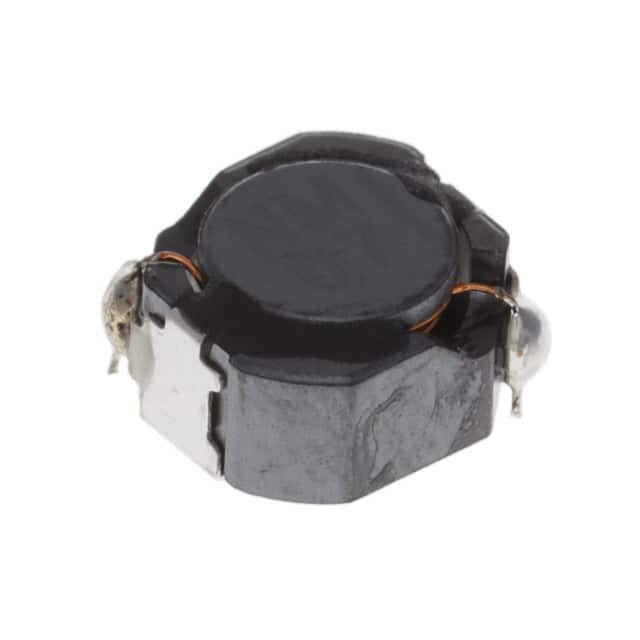

CDRH50D28BT150NP-101MCFIXED IND 100UH 460MA 780MOHM SM Sumida America Components Inc. |
1,806 |
|
Datasheet |
CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 460 mA | 550mA | Shielded | 780mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
