Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CR54NP-221KCFIXED IND 220UH 350MA 1.57OHM SM Sumida America Components Inc. |
2,858 |
|
Datasheet |
CR54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 350 mA | - | - | Unshielded | 1.57Ohm Max | 220 µH | - | 5.73MHz | Surface Mount | - | 0.228" L x 0.209" W (5.80mm x 5.30mm) | - | -40°C ~ 100°C | 1 kHz | 0.191" (4.85mm) |
|
|
CR54NP-680KCFIXED IND 68UH 610MA 460MOHM SMD Sumida America Components Inc. |
4,057 |
|
Datasheet |
CR54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 610 mA | - | - | Unshielded | 460mOhm Max | 68 µH | - | 11.7MHz | Surface Mount | - | 0.228" L x 0.209" W (5.80mm x 5.30mm) | - | -40°C ~ 100°C | 2.52 MHz | 0.191" (4.85mm) |
|
|
CR54NP-151KCFIXED IND 150UH 400MA 1.1OHM SMD Sumida America Components Inc. |
3,711 |
|
Datasheet |
CR54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 400 mA | - | - | Unshielded | 1.1Ohm Max | 150 µH | - | - | Surface Mount | - | 0.228" L x 0.209" W (5.80mm x 5.30mm) | - | -40°C ~ 100°C | 1 kHz | 0.191" (4.85mm) |
|
|
CR54NP-270MCFIXED IND 27UH 970MA 200MOHM SMD Sumida America Components Inc. |
4,385 |
|
Datasheet |
CR54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 970 mA | - | - | Unshielded | 200mOhm Max | 27 µH | - | - | Surface Mount | - | 0.228" L x 0.209" W (5.80mm x 5.30mm) | - | -40°C ~ 100°C | 2.52 MHz | 0.191" (4.85mm) |
|
|
CR54NP-2R7MCFIXED IND 2.7UH 3.44A 26MOHM SMD Sumida America Components Inc. |
2,790 |
|
Datasheet |
CR54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.44 A | - | - | Unshielded | 26mOhm Max | 2.7 µH | - | - | Surface Mount | - | 0.228" L x 0.209" W (5.80mm x 5.30mm) | - | -40°C ~ 100°C | 7.96 MHz | 0.191" (4.85mm) |
|
|
CR54NP-3R3MCFIXED IND 3.3UH 3.2A 28.6MOHM SM Sumida America Components Inc. |
4,797 |
|
Datasheet |
CR54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.2 A | - | - | Unshielded | 28.6mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.228" L x 0.209" W (5.80mm x 5.30mm) | - | -40°C ~ 100°C | 7.96 MHz | 0.191" (4.85mm) |
|
|
CR54NP-7R6MCFIXED IND 7.6UH 2.08A 62.4 MOHM Sumida America Components Inc. |
4,613 |
|
Datasheet |
CR54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.08 A | - | - | Unshielded | 62.4mOhm Max | 7.6 µH | - | 19.6MHz | Surface Mount | - | 0.228" L x 0.209" W (5.80mm x 5.30mm) | - | -40°C ~ 100°C | 7.96 MHz | 0.191" (4.85mm) |
|

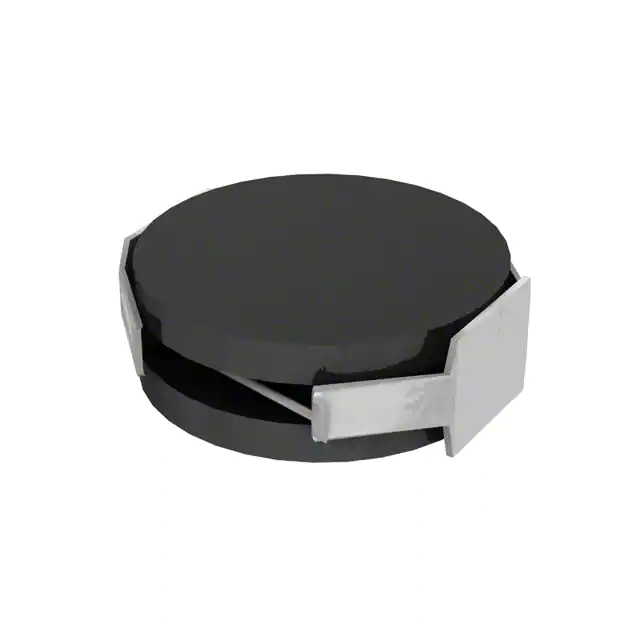

CDH2D09BNP-4R7MCFIXED IND 4.7UH 850MA 273MOHM SM Sumida America Components Inc. |
3,675 |
|
Datasheet |
CDH2D09B | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 850 mA | 700mA | - | Unshielded | 273mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.112" L x 0.106" W (2.85mm x 2.70mm) | - | -40°C ~ 105°C | 100 kHz | 0.039" (1.00mm) |
|
CDRH3D11NP-100NCFIXED IND 10UH 900MA 240MOHM SMD Sumida America Components Inc. |
2,536 |
|
Datasheet |
CDRH3D11 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 900 mA | 280mA | - | Shielded | 240mOhm Max | 10 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.047" (1.20mm) |
|

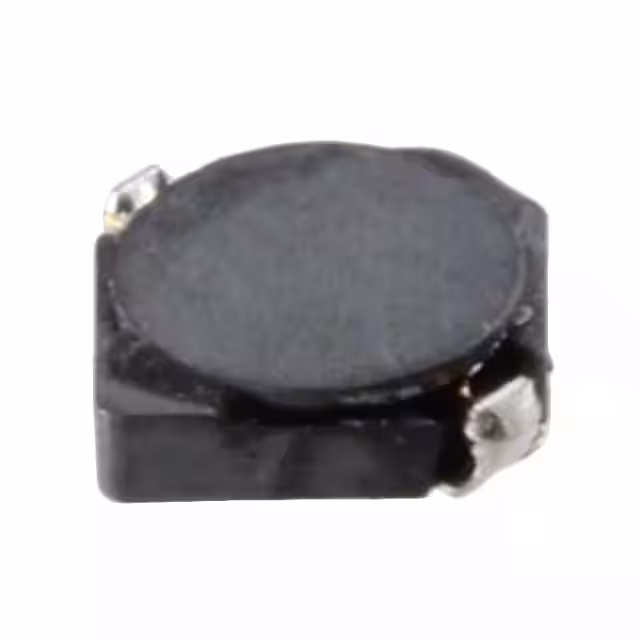

CDRH3D11NP-4R7NCFIXED IND 4.7UH 1.38A 123MOHM SM Sumida America Components Inc. |
2,656 |
|
Datasheet |
CDRH3D11 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 1.38 A | 400mA | - | Shielded | 123mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.047" (1.20mm) |
