Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

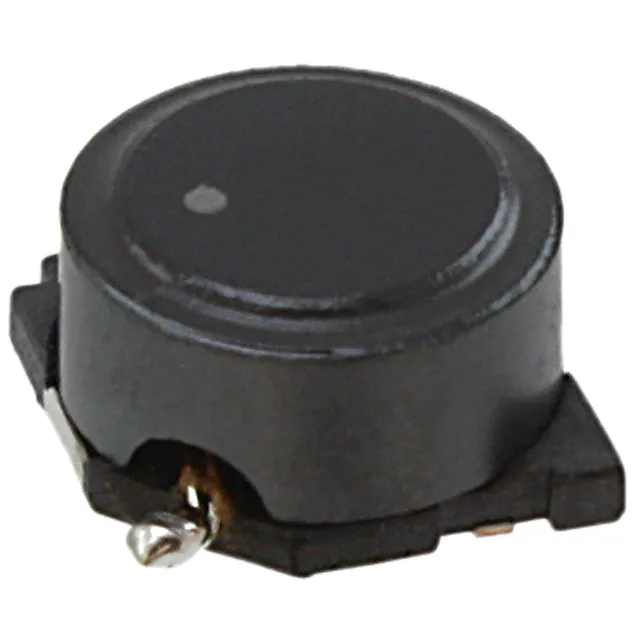

NS10155T150MNAFIXED IND 15UH 3.65A 33.6MOHM SM Taiyo Yuden |
4,600 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.65 A | 4.03A | Shielded | 33.6mOhm Max | - | 15.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.230" (5.85mm) |
|
NR10050T2R1NFIXED IND 2.1UH 8.3A 10.4MOHM SM Taiyo Yuden |
7,948 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.1 µH | ±30% | 8.3 A | 10A | Shielded | 10.4mOhm Max | - | 37MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
NS10165T100MNAFIXED IND 10UH 4.66A 20.4MOHM SM Taiyo Yuden |
2,690 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.66 A | 5.2A | Shielded | 20.4mOhm Max | - | 16.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
NS12575T220MNFIXED IND 22UH 4.05A 31.2MOHM SM Taiyo Yuden |
40,283 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4.05 A | 5.56A | Shielded | 31.2mOhm Max | - | 9.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|

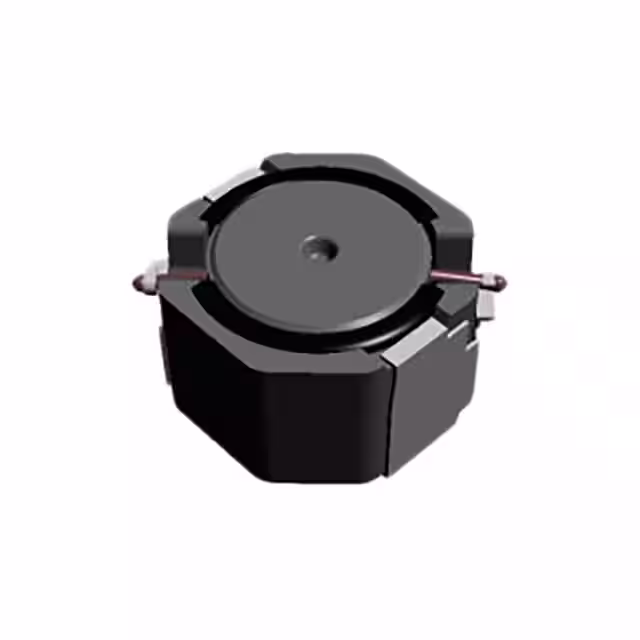

EST0645T100MDGAFIXED IND 10UH 2.6A 38 MOHM SMD Taiyo Yuden |
2,970 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.6 A | 2A | Shielded | 38mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | - | - | Surface Mount | - | 0.248" L x 0.240" W (6.30mm x 6.10mm) | 0.177" (4.50mm) |
|
|
NS12555T152MNFIXED IND 1.5MH 440MA 2.076 OHM Taiyo Yuden |
2,199 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±20% | 440 mA | 400mA | Shielded | 2.076Ohm Max | - | 1.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
|
NS12565T330MNFIXED IND 33UH 3.22A 46.8MOHM SM Taiyo Yuden |
2,926 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.22 A | 3.89A | Shielded | 46.8mOhm Max | - | 9.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
|
NS12575T150MNFIXED IND 15UH 5.22A 22.08 MOHM Taiyo Yuden |
3,259 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 5.22 A | 6.54A | Shielded | 22.08mOhm Max | - | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
NS12575T680MNFIXED IND 68UH 2.49A 86.4MOHM SM Taiyo Yuden |
2,783 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.49 A | 2.78A | Shielded | 86.4mOhm Max | - | 5.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
NS12575T100MNFIXED IND 10UH 5.55A 18.72 MOHM Taiyo Yuden |
1,590 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 5.55 A | 7.65A | Shielded | 18.72mOhm Max | - | 21.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
