Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NS10165T6R8NNV8FIXED IND 6.8UH 5.22A 16.8 MOHM Taiyo Yuden |
2,434 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 5.22 A | 6A | - | Shielded | 16.8mOhm Max | 6.8 µH | - | 20.7MHz | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.270" (6.85mm) |
|
|
NS10165T150MNV8FIXED IND 15UH 3.6A 33.6MOHM SMD Taiyo Yuden |
4,641 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 3.6 A | 3.6A | - | Shielded | 33.6mOhm Max | 15 µH | - | 13.2MHz | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.270" (6.85mm) |
|
|
NS10165T3R3NNV8FIXED IND 3.3UH 6.76A 10.4 MOHM Taiyo Yuden |
4,903 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 6.76 A | 9.3A | - | Shielded | 10.4mOhm Max | 3.3 µH | - | 42MHz | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.270" (6.85mm) |
|

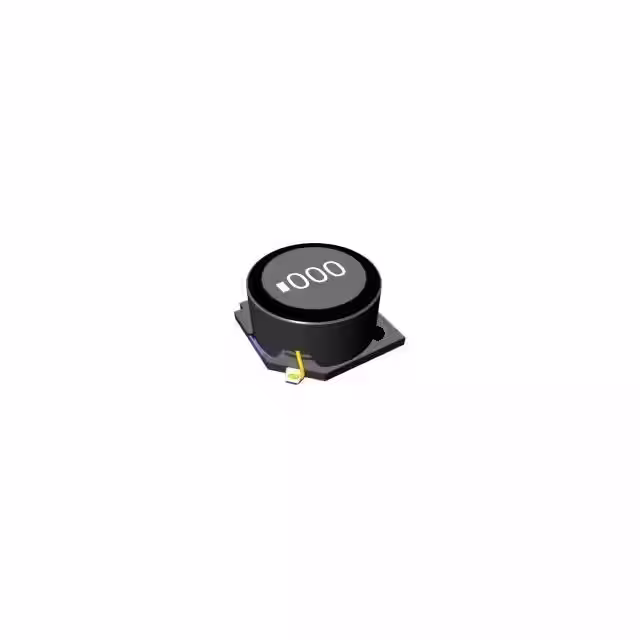

LBRNJ10165GL2R2NNFIXED IND 2.2UH 7.32A 8.9MOHM SM Taiyo Yuden |
2,589 |
|
- |
LBRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±30% | 7.32 A | 10.8A | - | Shielded | 7.4mOhm | 2.2 µH | - | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.270" (6.85mm) |
|
LAYPH10040DL470MGAFIXED IND 47UH 760MA 162MOHM SMD Taiyo Yuden |
2,854 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 760 mA | 1.7A | - | Shielded | 135mOhm | 47 µH | - | - | Surface Mount | AEC-Q200 | 0.398" L x 0.394" W (10.10mm x 10.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.169" (4.30mm) |
|
LAYPH10040DL221MGAFIXED IND 220UH 410MA 636MOHM SM Taiyo Yuden |
3,115 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 410 mA | 770mA | - | Shielded | 530mOhm | 220 µH | - | - | Surface Mount | AEC-Q200 | 0.398" L x 0.394" W (10.10mm x 10.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.169" (4.30mm) |
|
LAYPH10040DL1R0NGAFIXED IND 1UH 3.6A 10 MOHM SMD Taiyo Yuden |
2,011 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±30% | 3.6 A | 10.7A | - | Shielded | 8mOhm | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.398" L x 0.394" W (10.10mm x 10.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.169" (4.30mm) |
|
LAYPH10040DL330MGAFIXED IND 33UH 1.1A 115 MOHM SMD Taiyo Yuden |
4,711 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 1.1 A | 2A | - | Shielded | 96mOhm | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.398" L x 0.394" W (10.10mm x 10.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.169" (4.30mm) |
|
LAYPH10040DL2R2NGAFIXED IND 2.2UH 3.1A 14 MOHM SMD Taiyo Yuden |
3,521 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±30% | 3.1 A | 7.5A | - | Shielded | 11mOhm | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.398" L x 0.394" W (10.10mm x 10.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.169" (4.30mm) |
|
LAYPH10040DL150MGAFIXED IND 15UH 1.6A 52 MOHM SMD Taiyo Yuden |
4,474 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 1.6 A | 2.9A | - | Shielded | 43mOhm | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.398" L x 0.394" W (10.10mm x 10.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.169" (4.30mm) |
