Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLF302512MT-100MFIXED IND 10UH 950MA 299MOHM SMD TDK Corporation |
0 |
|
Datasheet |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 950 mA | 690mA | Shielded | 299mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.047" (1.20mm) |
|
|
VLF302512MT-150MFIXED IND 15UH 800MA 448MOHM SMD TDK Corporation |
0 |
|
Datasheet |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 800 mA | 570mA | Shielded | 448mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.047" (1.20mm) |
|
|
VLF302512MT-220MFIXED IND 22UH 640MA 700MOHM SMD TDK Corporation |
0 |
|
Datasheet |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 640 mA | 470mA | Shielded | 700mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.047" (1.20mm) |
|
SPM3015T-1R0MFIXED IND 1UH 3.5A 52.9 MOHM SMD TDK Corporation |
0 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | 3.5 A | 5.1A | Shielded | 52.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.059" (1.50mm) |
|
SPM4015T-3R3M-LRFIXED IND 3.3UH 2.5A 116.6 MOHM TDK Corporation |
0 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 2.5 A | 3.9A | Shielded | 116.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.059" (1.50mm) |
|
|
SPM4010T-R47M-LRFIXED IND 470NH 5.6A 25.3MOHM SM TDK Corporation |
0 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 5.6 A | 8.3A | Shielded | 25.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.039" (1.00mm) |
|

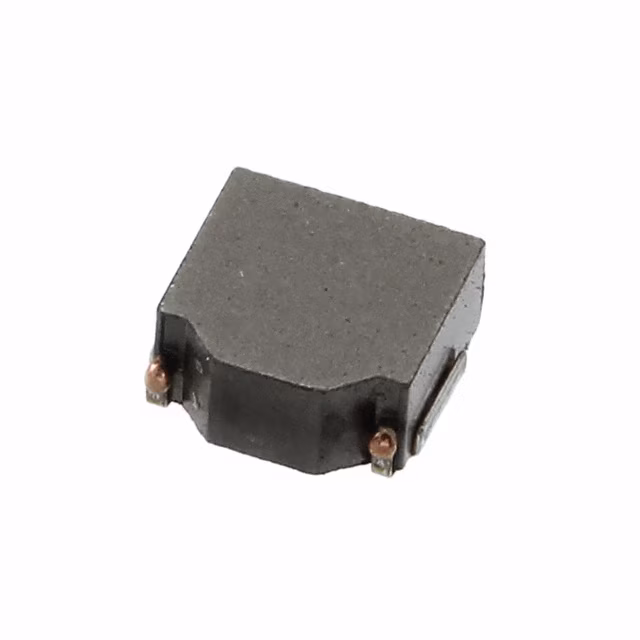

SPM4020T-R47MFIXED IND 470NH 6.1A 19.5MOHM SM TDK Corporation |
3 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 470 nH | ±20% | 6.1 A | 10.6A | Shielded | 19.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.079" (2.00mm) |
|

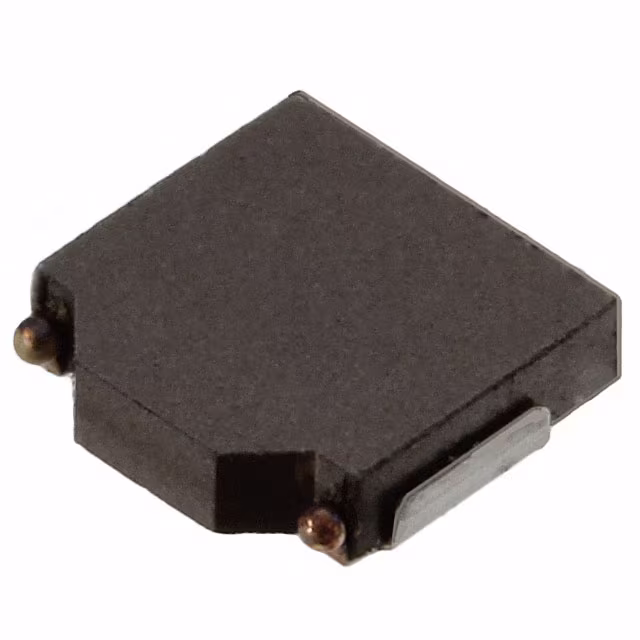

SPM4012T-1R0MFIXED IND 1UH 4.3A 45 MOHM SMD TDK Corporation |
0 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | 4.3 A | 4.8A | Shielded | 45mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.047" (1.20mm) |
|

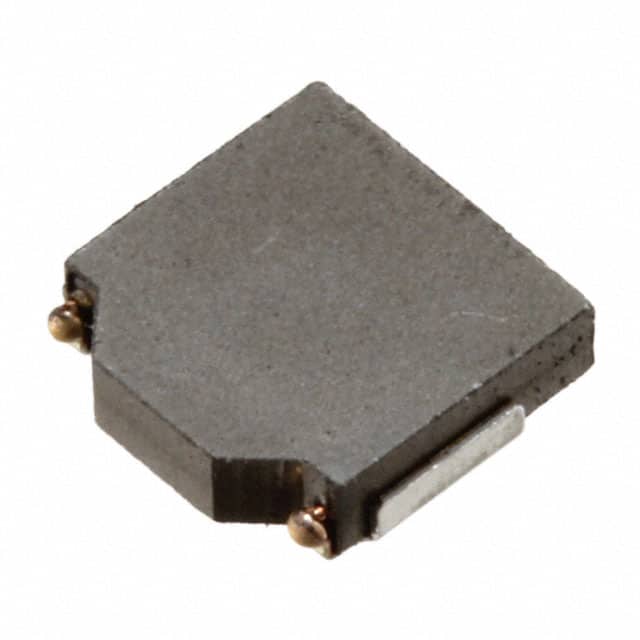

SPM4012T-1R5MFIXED IND 1.5UH 3.5A 70 MOHM SMD TDK Corporation |
0 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 3.5 A | 3.5A | Shielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.047" (1.20mm) |
|
|
SPM4012T-2R2MFIXED IND 2.2UH 2.9A 95 MOHM SMD TDK Corporation |
0 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.9 A | 3.3A | Shielded | 95mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.047" (1.20mm) |
