Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

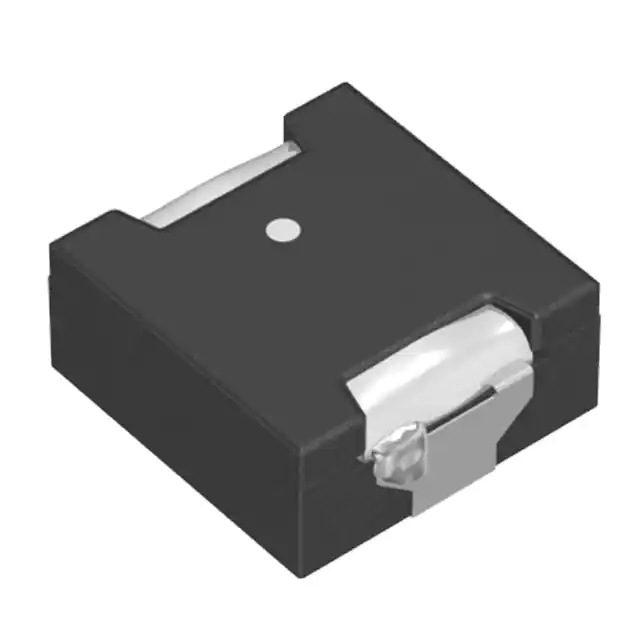

RLF12560T-100M7R5FIXED IND 10UH 7.8A 14.88MOHM SM TDK Corporation |
3,030 |
|
Datasheet |
RLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 7.8 A | 7.5A | - | Shielded | 14.88mOhm Max | 10 µH | - | - | Surface Mount | - | 0.504" L x 0.492" W (12.80mm x 12.50mm) | - | -40°C ~ 105°C | 100 kHz | 0.236" (6.00mm) |
|

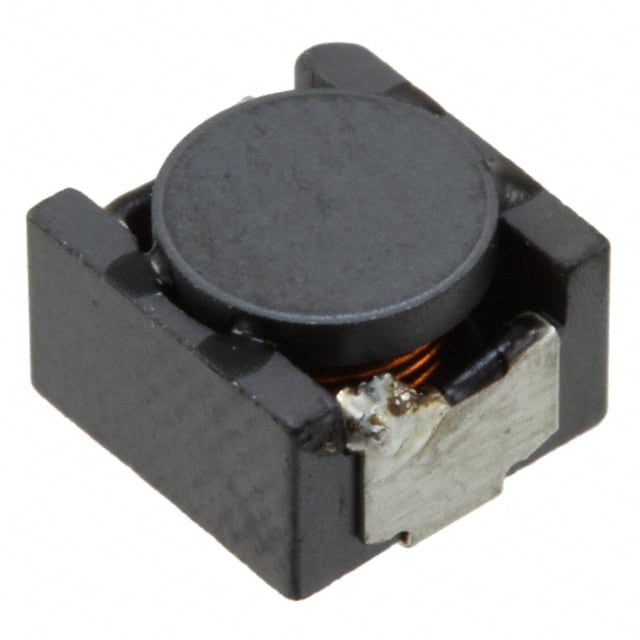

RLF7045T-680MR85-DFIXED IND 68UH 850MA 340.8 MOHM TDK Corporation |
4,468 |
|
Datasheet |
RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 850 mA | 850mA | - | Shielded | 340.8mOhm Max | 68 µH | - | - | Surface Mount | AEC-Q200 | 0.287" L x 0.268" W (7.30mm x 6.80mm) | - | -40°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
|
RLF7045T-100M1R9-DFIXED IND 10UH 1.9A 60 MOHM SMD TDK Corporation |
3,267 |
|
Datasheet |
RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 1.9 A | 2.6A | - | Shielded | 60mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.287" L x 0.268" W (7.30mm x 6.80mm) | - | -40°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|

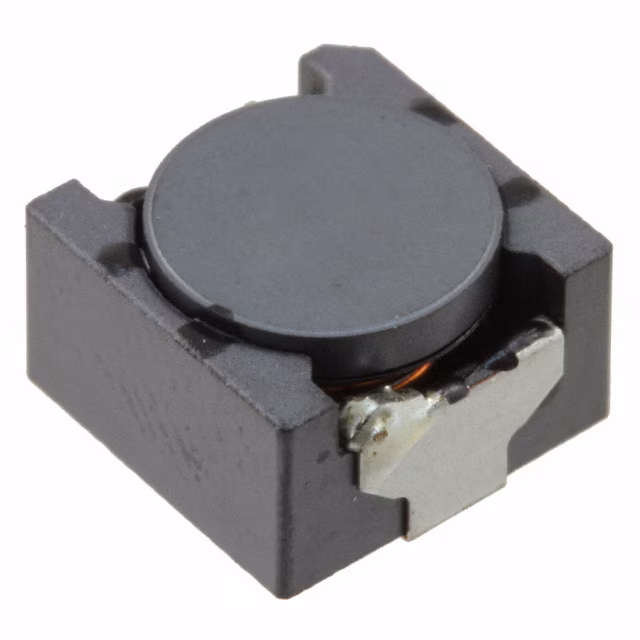

RLF10160T-470M1R5-DFIXED IND 47UH 1.5A 111.6MOHM SM TDK Corporation |
2 |
|
Datasheet |
RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 1.5 A | 2.4A | - | Shielded | 111.6mOhm Max | 47 µH | - | - | Surface Mount | AEC-Q200 | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 150°C | 100 kHz | 0.252" (6.40mm) |
|
|
RLF10160T-221MR70-DFIXED IND 220UH 700MA 490.8 MOHM TDK Corporation |
3,779 |
|
Datasheet |
RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 700 mA | 1A | - | Shielded | 490.8mOhm Max | 220 µH | - | - | Surface Mount | AEC-Q200 | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 150°C | 100 kHz | 0.252" (6.40mm) |
|
VLM13580T-R82M-D1FIXED IND 820NH 12.6A 2 MOHM SMD TDK Corporation |
4,834 |
|
Datasheet |
VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 12.6 A | 36A | - | Shielded | 2mOhm Max | 820 nH | - | - | Surface Mount | AEC-Q200 | 0.531" L x 0.480" W (13.50mm x 12.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.327" (8.30mm) |
|
|
VLM13580T-1R5M-D1FIXED IND 1.5UH 11.3A 2.5MOHM SM TDK Corporation |
4,695 |
|
Datasheet |
VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 11.3 A | 26A | - | Shielded | 2.5mOhm Max | 1.5 µH | - | - | Surface Mount | AEC-Q200 | 0.531" L x 0.480" W (13.50mm x 12.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.327" (8.30mm) |
|
|
VLM13580T-3R3M-D1FIXED IND 3.3UH 8.4A 4.5MOHM SMD TDK Corporation |
3,973 |
|
Datasheet |
VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 8.4 A | 18A | - | Shielded | 4.5mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.531" L x 0.480" W (13.50mm x 12.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.327" (8.30mm) |
|

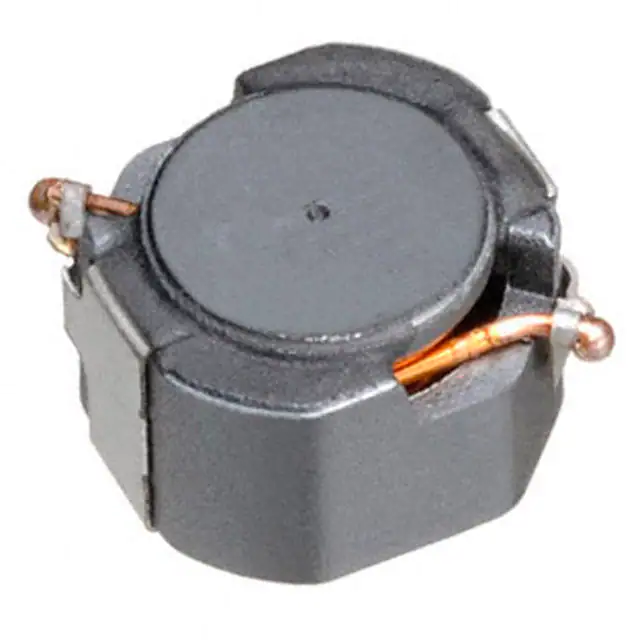

LGJ7045TC-101M-HFIXED IND 100UH 750MA 330MOHM SM TDK Corporation |
15 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 750 mA | 900mA | - | Shielded | 330mOhm | 100 µH | - | - | Surface Mount | AEC-Q200 | 0.283" L x 0.272" W (7.20mm x 6.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|

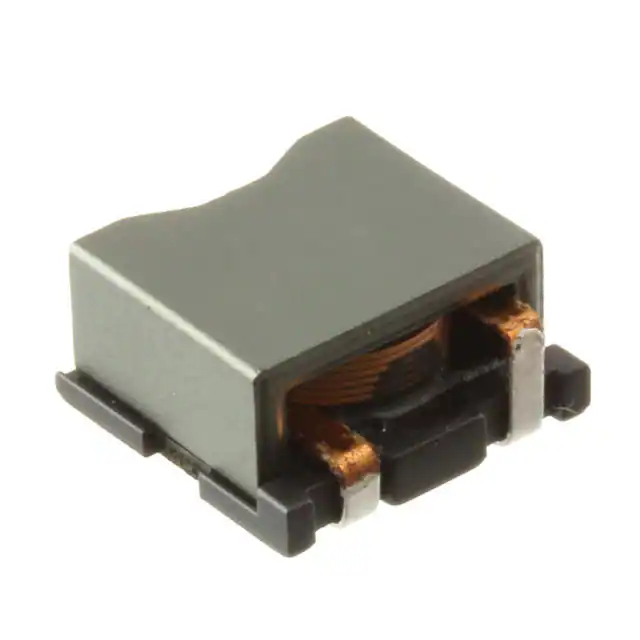

VLM10555T-R33M180-3FIXED IND 330NH 18A 1.2 MOHM SMD TDK Corporation |
2 |
|
Datasheet |
VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 18 A | 34A | - | Shielded | 1.2mOhm Max | 330 nH | - | - | Surface Mount | - | 0.417" L x 0.413" W (10.60mm x 10.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.220" (5.60mm) |
