Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP2020CZERR68M01FIXED IND 680NH 10.2A 8.96 MOHM |
3,366 |
|
Datasheet |
IHLP-2020CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 10.2 A | 13.5A | - | Shielded | 8.96mOhm Max | 680 nH | - | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
IHLP2525CZER2R2MA1IHLP-2525CZ-A1 2.2 20% ER E3 |
3,284 |
|
Datasheet |
IHLP-2525CZ-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 8 A | 14A | - | Shielded | 20mOhm Max | 2.2 µH | - | 38MHz | Surface Mount | AEC-Q200 | 0.270" L x 0.255" W (6.86mm x 6.47mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
IHLP1212BZERR68M11FIXED IND 680NH 5.5A 20.4MOHM SM |
3,078 |
|
Datasheet |
IHLP-1212BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 5.5 A | 5A | - | Shielded | 20.4mOhm Max | 680 nH | - | 105MHz | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
SRP4020TA-R22YFIXED IND 220NH 11A 7.3 MOHM SMD |
2,896 |
|
Datasheet |
SRP4020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±30% | 11 A | 24A | 2-SMD | Shielded | 7.3mOhm Max | 220 nH | 10 @ 100kHz | 270MHz | Surface Mount | AEC-Q200 | 0.175" L x 0.160" W (4.45mm x 4.06mm) | - | -40°C ~ 150°C | 100 kHz | 0.079" (2.00mm) |
|
|
SRP4020TA-5R6MFIXED IND 5.6UH 2.2A 125MOHM SMD |
2,749 |
|
Datasheet |
SRP4020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 2.2 A | 3A | 2-SMD | Shielded | 125mOhm Max | 5.6 µH | 10 @ 100kHz | 25MHz | Surface Mount | AEC-Q200 | 0.175" L x 0.160" W (4.45mm x 4.06mm) | - | -40°C ~ 150°C | 100 kHz | 0.079" (2.00mm) |
|
SRP7030-1R0MFIXED IND 1UH 11A 0.01OHM SMD |
2,716 |
|
Datasheet |
SRP7030 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | ±20% | 11 A | 15A | - | Shielded | 10mOhm Max | 1 µH | - | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.126" (3.20mm) |
|
SRR0906-472YLFIXED IND 4.7MH 100MA 19 OHM SMD |
2,152 |
|
Datasheet |
SRR0906 | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±15% | 100 mA | 110mA | - | Shielded | 19Ohm Max | 4.7 mH | 100 @ 252kHz | 1MHz | Surface Mount | - | 0.394" L x 0.374" W (10.00mm x 9.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.248" (6.30mm) |
|
SRR1210-560MFIXED IND 56UH 3.4A 90 MOHM SMD |
1,962 |
|
Datasheet |
SRR1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.4 A | 2.9A | - | Shielded | 90mOhm Max | 56 µH | 8 @ 2.52MHz | 4MHz | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.394" (10.00mm) |
|
IHLP2020BZER2R2M51IHLP-2020BZ-51 2.2 20% ER E3 |
1,238 |
|
Datasheet |
IHLP-2020BZ-51 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 5.1 A | 6.4A | - | Shielded | 47.6mOhm Max | 2.2 µH | - | 43.1MHz | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | - | -55°C ~ 155°C | 100 kHz | 0.079" (2.00mm) |
|
CDRH125/LDNP-220MCFIXED IND 22UH 3.28A 44 MOHM SMD |
1,084 |
|
- |
CDRH125/LD | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 3.28 A | - | - | Shielded | 44mOhm Max | 22 µH | - | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | - | 100 kHz | 0.236" (6.00mm) |
|
IHLP2525CZER100M8AFIXED IND 10UH 4A 76.9 MOHM SMD |
14,100 |
|
Datasheet |
IHLP-2525CZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 4 A | 2.9A | - | Shielded | 76.9mOhm Max | 10 µH | - | 13.9MHz | Surface Mount | AEC-Q200 | 0.270" L x 0.255" W (6.86mm x 6.47mm) | - | -55°C ~ 180°C | 100 kHz | 0.118" (3.00mm) |
|
SPM7054VT-101M-DFIXED IND 100UH 1.8A 0.348OHM SM |
11,702 |
|
Datasheet |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 1.8 A | 2.4A | 7054 | Shielded | 348mOhm | 100 µH | - | - | Surface Mount | AEC-Q200 | 0.295" L x 0.276" W (7.50mm x 7.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.213" (5.40mm) |
|
P0752.104NLTFIXED IND 100UH 1.2A 380MOHM SMD |
9,898 |
|
Datasheet |
P0752NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.2 A | 1.2A | - | Unshielded | 380mOhm Max | 100 µH | - | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -40°C ~ 130°C | 100 kHz | 0.215" (5.46mm) |
|
|
IHLP1212BZERR36M11FIXED IND 360NH 6.3A 13.8MOHM SM |
6,360 |
|
Datasheet |
IHLP-1212BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 6.3 A | 6.5A | - | Shielded | 13.8mOhm Max | 360 nH | - | 170MHz | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
IHLP2525CZER150M5AFIXED IND 15UH 2.9A 127 MOHM SMD |
4,410 |
|
Datasheet |
IHLP-2525CZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 2.9 A | 2.8A | - | Shielded | 127mOhm Max | 15 µH | - | 10.4MHz | Surface Mount | AEC-Q200 | 0.270" L x 0.255" W (6.86mm x 6.47mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
IHLP2525CZERR68M5AFIXED IND 680NH 16.5A 5.76 MOHM |
3,974 |
|
Datasheet |
IHLP-2525CZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 16.5 A | 17A | - | Shielded | 5.76mOhm Max | 680 nH | - | 56.1MHz | Surface Mount | AEC-Q200 | 0.270" L x 0.255" W (6.86mm x 6.47mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
SPM5015T-6R8M-LRFIXED IND 6.8UH 2.8A 134.6 MOHM |
3,914 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 2.8 A | 3.4A | - | Shielded | 134.6mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
|
IHLP2525AHER4R7M01FIXED IND 4.7UH 3A 78 MOHM SMD |
3,421 |
|
Datasheet |
IHLP-2525AH-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 3 A | 8A | - | Shielded | 78mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | - | -55°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|

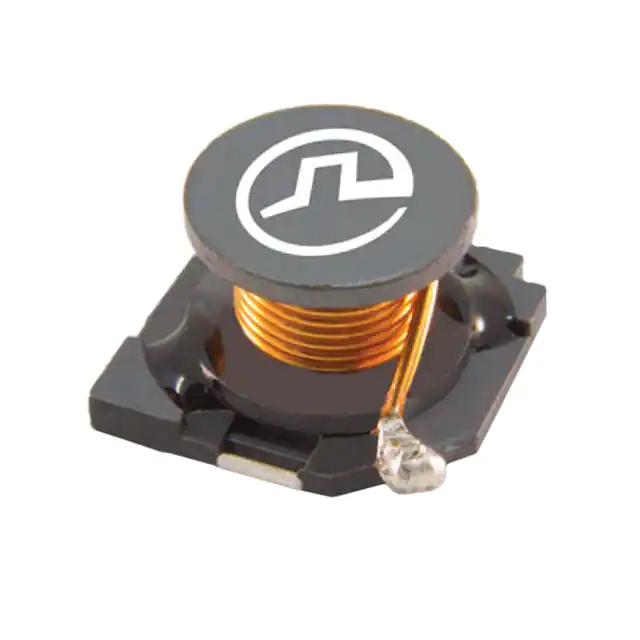

PA4310.104NLTFIXED IND 100UH 3.5A 310MOHM SMD |
2,042 |
|
Datasheet |
PA4310.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 3.5 A | - | - | Unshielded | 310mOhm Max | 100 µH | - | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
SPM5030VT-4R7M-DFIXED IND 4.7UH 3.8A 0.0591OHM |
1,542 |
|
Datasheet |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 3.8 A | 5.9A | 5030 | Shielded | 59.1mOhm | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.209" L x 0.201" W (5.30mm x 5.10mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
