Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744773039FIXED IND 3.9UH 1.88A 94MOHM SMD Würth Elektronik |
901 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±20% | 1.88 A | 2.57A | Unshielded | 94mOhm Max | - | 50MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
784773122FIXED IND 22UH 1A 370 MOHM SMD Würth Elektronik |
749 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1 A | 1.22A | Unshielded | 370mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 4532 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
74451168FIXED IND 68UH 400MA 0.29OHM SMD Würth Elektronik |
1,554 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 68 µH | ±20% | 400 mA | 120mA | Shielded | 290mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
74451222FIXED IND 220UH 220MA 0.77OHM SM Würth Elektronik |
863 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 220 µH | ±20% | 220 mA | 80mA | Shielded | 770mOhm Max | - | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
7445120FIXED IND 100UH 300MA 0.48OHM SM Würth Elektronik |
186 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 100 µH | ±20% | 300 mA | 90mA | Shielded | 480mOhm Max | - | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
784787180WE-PD2SA SMT SHIELDED POWER INDU Würth Elektronik |
640 |
|
Datasheet |
WE-PD2SA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±25% | 2.15 A | 1.9A | Shielded | 78mOhm Max | - | 15MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
784787100WE-PD2SA SMT SHIELDED POWER INDU Würth Elektronik |
446 |
|
Datasheet |
WE-PD2SA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±25% | 2.6 A | 2.6A | Shielded | 43mOhm Max | - | 24MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|

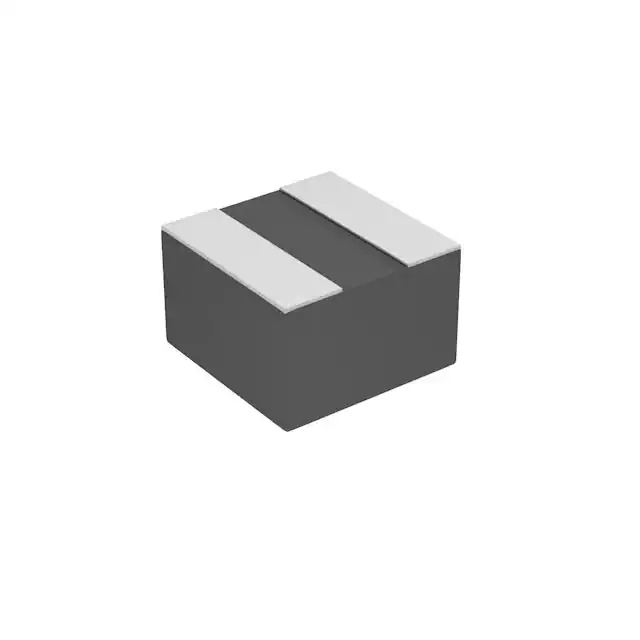

74438313015FIXED IND 1.5UH 950MA 237MOHM SM Würth Elektronik |
3,023 |
|
Datasheet |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.5 µH | ±30% | 950 mA | 2.7A | Shielded | 237mOhm Max | - | 90MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1610 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" (1.00mm) |
|
|
74438313012FIXED IND 1.2UH 1.3A 174MOHM SMD Würth Elektronik |
2,692 |
|
Datasheet |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.2 µH | ±30% | 1.3 A | 3.2A | Shielded | 174mOhm Max | - | 109MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1610 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" (1.00mm) |
|
|
744383130033FIXED IND 330NH 1.9A 84 MOHM SMD Würth Elektronik |
2,610 |
|
Datasheet |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 330 nH | ±30% | 1.9 A | 4.9A | Shielded | 84mOhm Max | - | 215MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1610 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" (1.00mm) |
