Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744373680022FIXED IND 220NH 24A 0.001OHM SMD Würth Elektronik |
2,905 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 220 nH | ±20% | 24 A | 94.2A | Shielded | 1mOhm Max | - | 153MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
74437368010FIXED IND 1UH 14.5A 0.0033OHM SM Würth Elektronik |
1,427 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 1 µH | ±20% | 14.5 A | 48.3A | Shielded | 3.3mOhm Max | - | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
74437368470FIXED IND 47UH 2.2A 0.167OHM SMD Würth Elektronik |
764 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 47 µH | ±20% | 2.2 A | 6.7A | Shielded | 167mOhm Max | - | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1040 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|

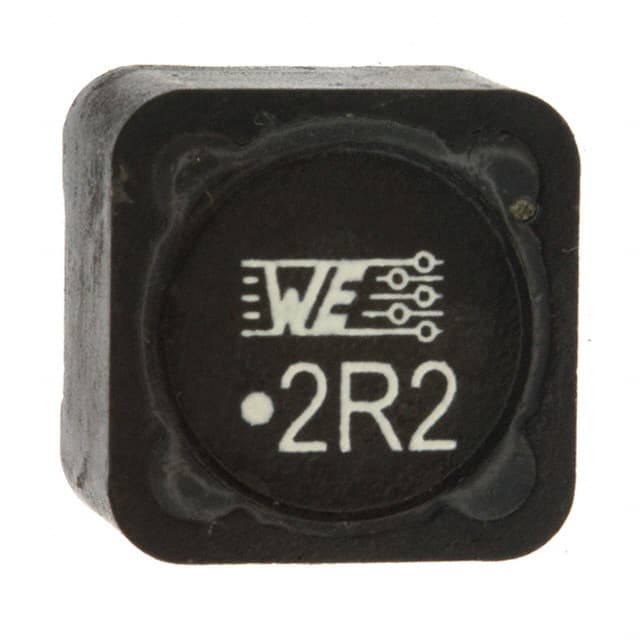

7447709002FIXED IND 2.2UH 11.5A 6 MOHM SMD Würth Elektronik |
486 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 11.5 A | 20A | Shielded | 6mOhm Max | - | 65MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
7447709001FIXED IND 1UH 13A 6 MOHM SMD Würth Elektronik |
460 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 13 A | 25A | Shielded | 6mOhm Max | - | 120MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|

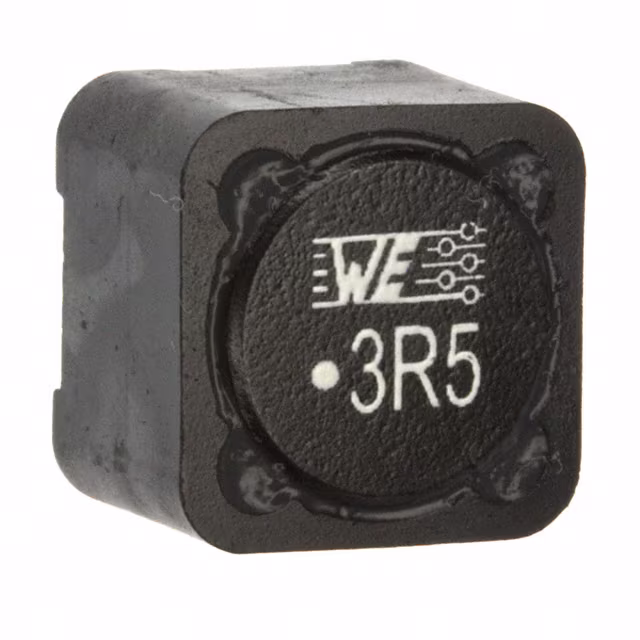

7447709003FIXED IND 3.5UH 11A 9 MOHM SMD Würth Elektronik |
177 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.5 µH | ±20% | 11 A | 16.5A | Shielded | 9mOhm Max | - | 45MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
7447786001FIXED IND 1UH 5A 34 MOHM SMD Würth Elektronik |
3,083 |
|
Datasheet |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±25% | 5 A | 5.5A | Shielded | 34mOhm Max | - | 180MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.201" (5.10mm) |
|
|
7447786004FIXED IND 4.7UH 2.8A 65 MOHM SMD Würth Elektronik |
2,252 |
|
Datasheet |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±25% | 2.8 A | 2.8A | Shielded | 65mOhm Max | - | 72MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.201" (5.10mm) |
|
7443310220FIXED IND 2.2UH 16A 4.3 MOHM SMD Würth Elektronik |
729 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 16 A | 48A | Shielded | 4.3mOhm Max | - | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|
|
7443310100FIXED IND 1UH 21A 2.5 MOHM SMD Würth Elektronik |
609 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 21 A | 52A | Shielded | 2.5mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
