Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
784770101FIXED IND 100UH 2.1A 144MOHM SMD Würth Elektronik |
399 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 100 µH | ±20% | 2.1 A | 2.3A | Shielded | 144mOhm Max | - | 5.2MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.327" (8.30mm) |
|
7445630FIXED IND 1MH 400MA 3.9 OHM SMD Würth Elektronik |
334 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 400 mA | 520mA | Unshielded | 3.9Ohm Max | - | 1.9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|
744300022FIXED IND 220NH 37A 0.00022OHM Würth Elektronik |
762 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 220 nH | ±20% | 37 A | 21.6A | Shielded | 0.22mOhm | - | 38MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 9065 | 0.340" L x 0.250" W (8.64mm x 6.35mm) | 0.177" (4.50mm) |
|

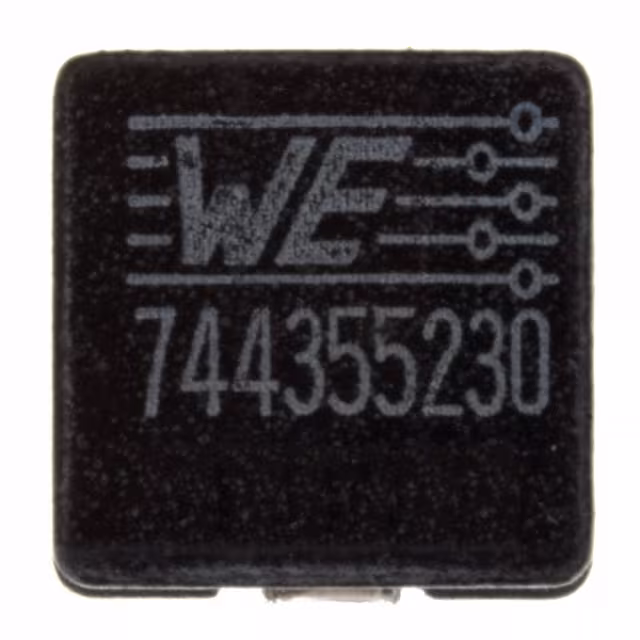

744355230FIXED IND 300NH 22A 1.1 MOHM SMD Würth Elektronik |
504 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 300 nH | ±20% | 22 A | 35A | Shielded | 1.1mOhm | - | 170MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1040 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.165" (4.20mm) |
|
7843330100FIXED IND 1UH 20.3A 2.9MOHM SMD Würth Elektronik |
278 |
|
Datasheet |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 20.3 A | 34.8A | Shielded | 2.9mOhm Max | - | 88MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1011 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|

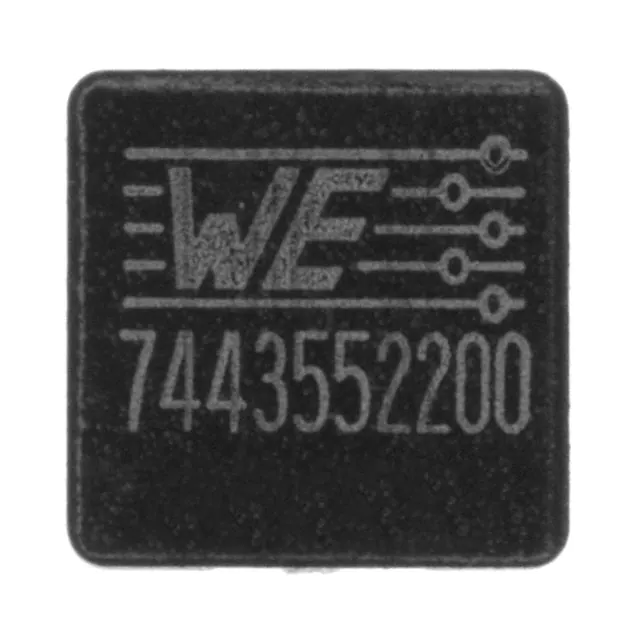

7443552200FIXED IND 2UH 11A 7.3 MOHM SMD Würth Elektronik |
277 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2 µH | ±20% | 11 A | 13A | Shielded | 7.3mOhm | - | 53MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1040 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.165" (4.20mm) |
|
|
7843330560FIXED IND 5.6UH 9.2A 13MOHM SMD Würth Elektronik |
174 |
|
Datasheet |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 9.2 A | 14.9A | Shielded | 13mOhm Max | - | 41MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1011 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|
78433490240WE-CHSA PERFORMANCE SMD HIGH CUR Würth Elektronik |
346 |
|
Datasheet |
WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 2.4 µH | ±20% | 6.8 A | 18.4A | Shielded | 18.4mOhm Max | - | 80MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.319" W (8.10mm x 8.10mm) | 0.366" (9.30mm) |
|
|
78433490075WE-CHSA PERFORMANCE SMD HIGH CUR Würth Elektronik |
342 |
|
Datasheet |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 750 nH | ±20% | 12.8 A | 34.5A | Shielded | 5.9mOhm Max | - | 154MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.319" W (8.10mm x 8.10mm) | 0.366" (9.30mm) |
|
|
78433490036WE-CHSA PERFORMANCE SMD HIGH CUR Würth Elektronik |
340 |
|
Datasheet |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 360 nH | ±20% | 19 A | 48.5A | Shielded | 2.8mOhm Max | - | 218MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.319" W (8.10mm x 8.10mm) | 0.366" (9.30mm) |
