Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78477610FIXED IND 10UH 2.98A 60 MOHM SMD Würth Elektronik |
1,392 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.98 A | 3.24A | Unshielded | 60mOhm Max | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 1054 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
74477724FIXED IND 470UH 290MA 3.01OHM SM Würth Elektronik |
890 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 290 mA | 340mA | Shielded | 3.01Ohm Max | - | 3.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
744777218FIXED IND 180UH 510MA 980MOHM SM Würth Elektronik |
709 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 510 mA | 560mA | Shielded | 980mOhm Max | - | 5.3MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|

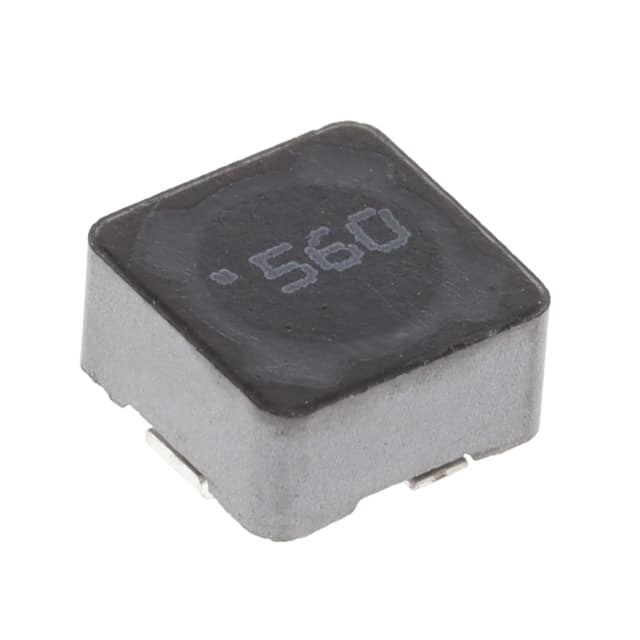

744777156FIXED IND 56UH 930MA 350MOHM SMD Würth Elektronik |
702 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 930 mA | 1.05A | Shielded | 350mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
744777926FIXED IND 680UH 230MA 4.63OHM SM Würth Elektronik |
580 |
|
Datasheet |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 230 mA | 280mA | Shielded | 4.63Ohm Max | - | 3.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
74454268FIXED IND 680UH 260MA 2.3OHM SMD Würth Elektronik |
1,170 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 680 µH | ±10% | 260 mA | 400mA | Shielded | 2.3Ohm Max | - | 2.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
7445402FIXED IND 2.2UH 3.8A 0.027OHM SM Würth Elektronik |
1,106 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 2.2 µH | ±20% | 3.8 A | 6.8A | Shielded | 27mOhm Max | - | 85MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|

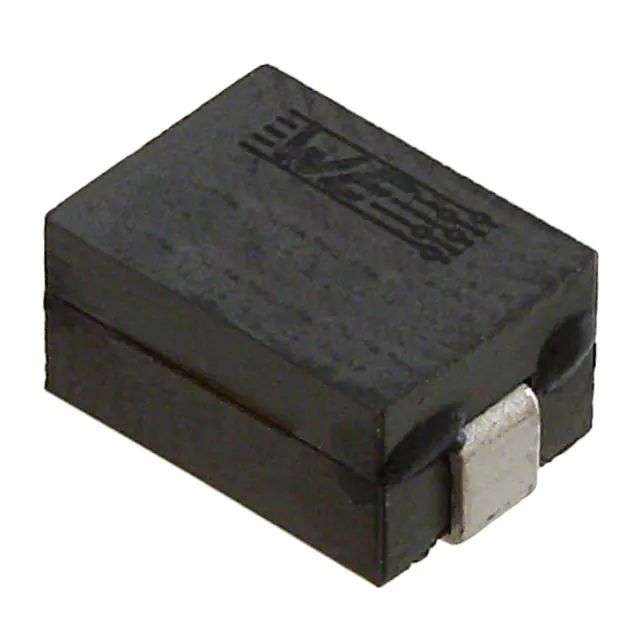

744303012FIXED IND 120NH 31A 0.000325OHM Würth Elektronik |
1,040 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 120 nH | ±20% | 31 A | 59.8A | Shielded | 0.325mOhm | - | 150MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1050 | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.197" (5.00mm) |
|
|
7443835400033POWER INDUCTOR 4012; 0.033 H; 33 Würth Elektronik |
1,990 |
|
Datasheet |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Iron Alloy | 33 nH | ±30% | 33.5 A | 40A | Shielded | 1.1mOhm Max | - | 682MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.051" (1.30mm) |
|
|
7443835400068POWER INDUCTOR 4012; 0.068 H; 27 Würth Elektronik |
980 |
|
Datasheet |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Iron Alloy | 68 nH | ±30% | 27 A | 38A | Shielded | 1.9mOhm Max | - | 374MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.051" (1.30mm) |
