Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744762422AFIXED IND 22UH 110MA 5 OHM SMD Würth Elektronik |
142 |
|
Datasheet |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±5% | 110 mA | - | Unshielded | 5Ohm Max | 15 @ 2.52MHz | 22MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|

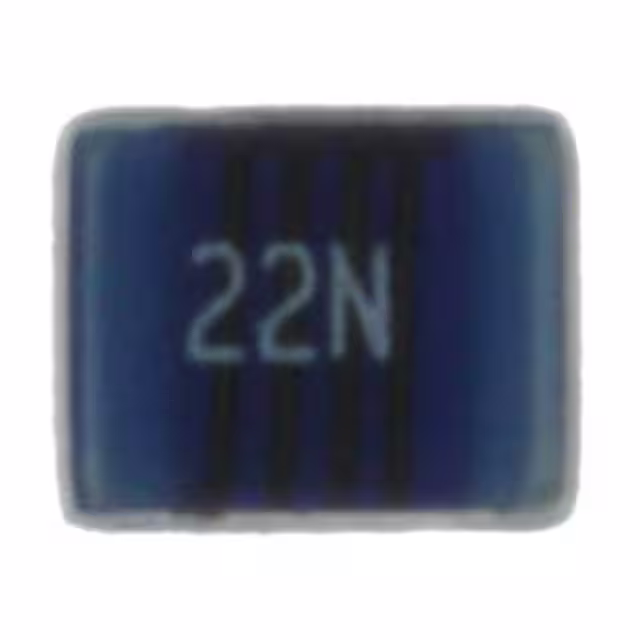

744762122AFIXED IND 22NH 1A 100 MOHM SMD Würth Elektronik |
103 |
|
Datasheet |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±5% | 1 A | - | Unshielded | 100mOhm Max | 60 @ 350MHz | 2.5GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
74476402FIXED IND 2.2UH 320MA 1 OHM SMD Würth Elektronik |
895 |
|
Datasheet |
WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 320 mA | - | Unshielded | 1Ohm Max | 30 @ 7.96MHz | 100MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
744040200016FIXED IND 160NH 3.07A 26MOHM SMD Würth Elektronik |
584 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 160 nH | ±20% | 3.07 A | 4.9A | Shielded | 26mOhm | - | 540MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
74404020010FIXED IND 1UH 1.49A 95 MOHM SMD Würth Elektronik |
523 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 1.5 A | 2A | Shielded | 95mOhm | - | 177MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
74404020015FIXED IND 1.5UH 1.19A 145MOHM SM Würth Elektronik |
409 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 1.19 A | 1.6A | Shielded | 145mOhm | - | 130MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

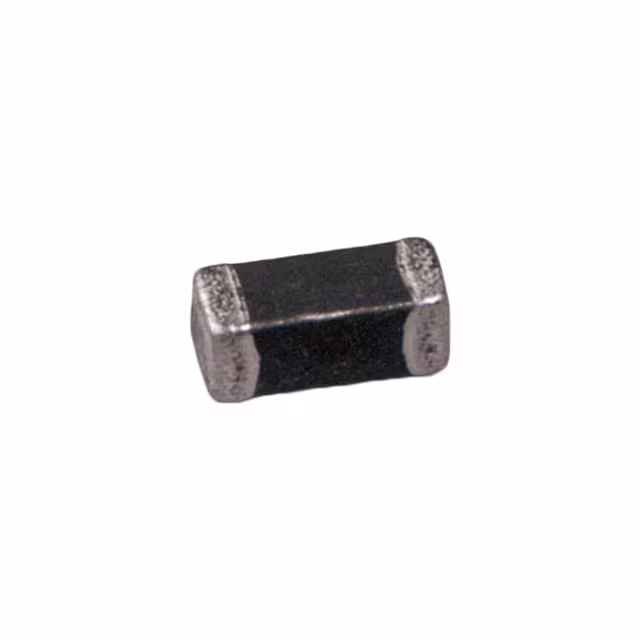

7447905FIXED IND 1UH 50MA 400 MOHM SMD Würth Elektronik |
405 |
|
Datasheet |
WE-MI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Nickel Zinc Ferrite (NiZn) | 1 µH | ±10% | 50 mA | - | Unshielded | 400mOhm Max | 45 @ 10MHz | 85MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|
744766122FIXED IND 22UH 180MA 3.2 OHM SMD Würth Elektronik |
1,249 |
|
Datasheet |
WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 180 mA | - | Unshielded | 3.2Ohm Max | 50 @ 2.52MHz | 18MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.142" (3.60mm) |
|
74476625FIXED IND 560UH 50MA 30 OHM SMD Würth Elektronik |
509 |
|
Datasheet |
WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 50 mA | - | Unshielded | 30Ohm Max | 40 @ 796kHz | 3MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.142" (3.60mm) |
|
|
74476624FIXED IND 470UH 62MA 26 OHM SMD Würth Elektronik |
460 |
|
Datasheet |
WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 62 mA | - | Unshielded | 26Ohm Max | 40 @ 796kHz | 3.4MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.142" (3.60mm) |
