Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744750530100FIXED IND 10UH 8.9A 9.5 MOHM TH Würth Elektronik |
80 |
|
Datasheet |
WE-FAMI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 8.9 A | 12.4A | Shielded | 9.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.583" Dia (14.80mm) | 0.433" (11.00mm) |
|
|
744750530068FIXED IND 6.8UH 10.7A 6.5MOHM TH Würth Elektronik |
49 |
|
Datasheet |
WE-FAMI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 10.7 A | 15A | Shielded | 6.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.583" Dia (14.80mm) | 0.433" (11.00mm) |
|
744777182FIXED IND 82UH 840MA 430MOHM SMD Würth Elektronik |
55 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 840 mA | 900mA | Shielded | 430mOhm Max | - | 8MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
744731102FIXED IND 1MH 350MA 2.3 OHM TH Würth Elektronik |
100 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 350 mA | 250mA | Shielded | 2.3Ohm Max | - | 1.7MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|

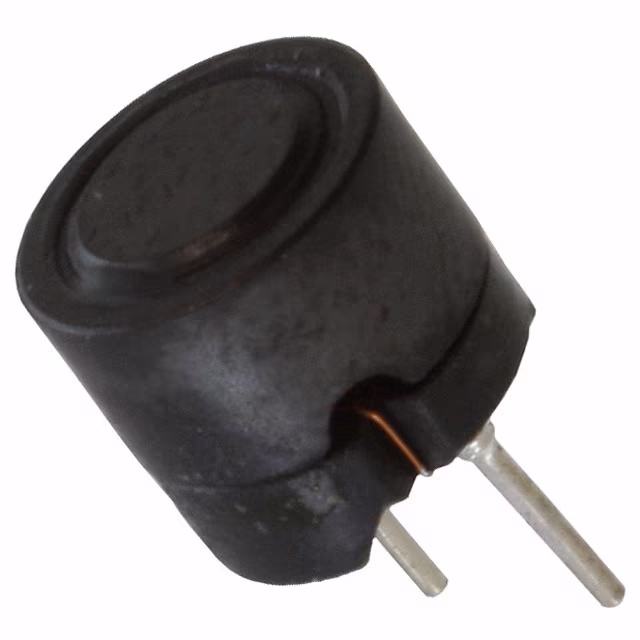

744731222FIXED IND 2.2MH 200MA 4.6 OHM TH Würth Elektronik |
81 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 200 mA | 180mA | Shielded | 4.6Ohm Max | - | 1.1MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|

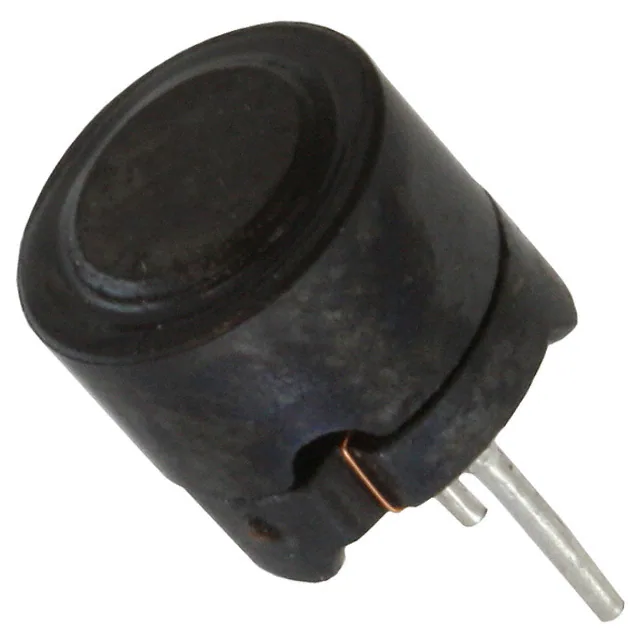

744731472FIXED IND 4.7MH 160MA 11.4OHM TH Würth Elektronik |
80 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 160 mA | 140mA | Shielded | 11.4Ohm Max | - | 800kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|

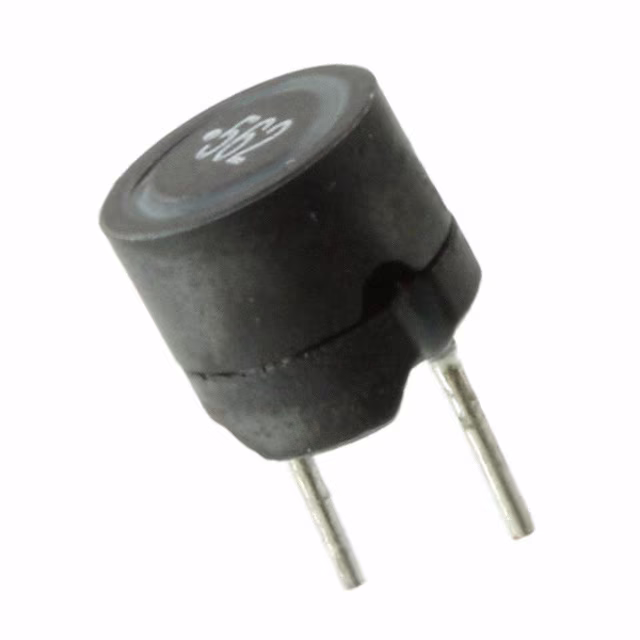

744731562FIXED IND 5.6MH 130MA 15.7OHM TH Würth Elektronik |
71 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 5.6 mH | ±10% | 130 mA | 70mA | Shielded | 15.7Ohm Max | - | 700kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|

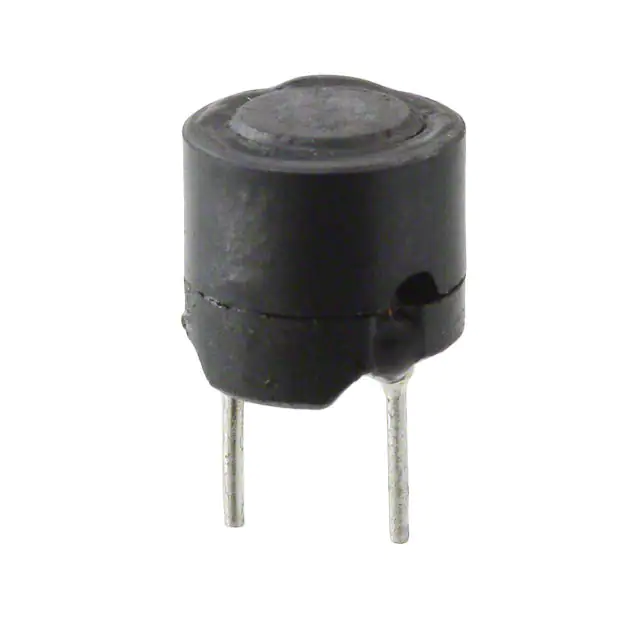

744731331FIXED IND 330UH 650MA 830MOHM TH Würth Elektronik |
70 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 650 mA | 450mA | Shielded | 830mOhm Max | - | 3.1MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|

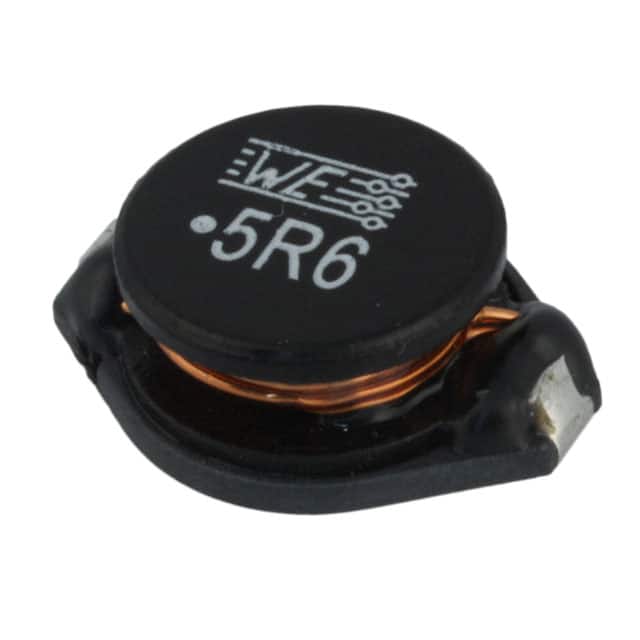

74458005FIXED IND 5.6UH 5.3A 20 MOHM SMD Würth Elektronik |
68 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 5.3 A | 13.1A | Unshielded | 20mOhm Max | - | 26MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
768776322FIXED IND 2.2MH 180MA 5.3OHM SMD Würth Elektronik |
46 |
|
Datasheet |
WE-PD2 HV | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 180 mA | 260mA | Unshielded | 5.3Ohm Max | - | 1.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
